Chapter 7 Optional Accessories |CFP2000 Series
7-22
Frame B
Model『MKFP-BFKB』Capacitor Fan
Applicable model
VFD110FP4EA-52, VFD110FP4EA-52S, VFD150FP4EA-52, VFD150FP4EA-52S, VFD185FP4EA-52,
VFD185FP4EA-52S, VFD220FP4EA-52, VFD220FP4EA-52S
1. Press the hook in the top of digital keypad, then rotate to remove the digital keypad (refer to Figure 2 )
2. Screw 1~6 torque: 14~16kg-cm [12.2~13.9lb-in.]
3. Loosen the screws 8~13 then remove the fan kit.(refer to Figure 3)
4. Screw 8~12 torque: 6~8kg-cm [5.2~6.9lb-in.]; Screw 13 torque: 12~14kg-cm [10.4~12.2lb-in.]

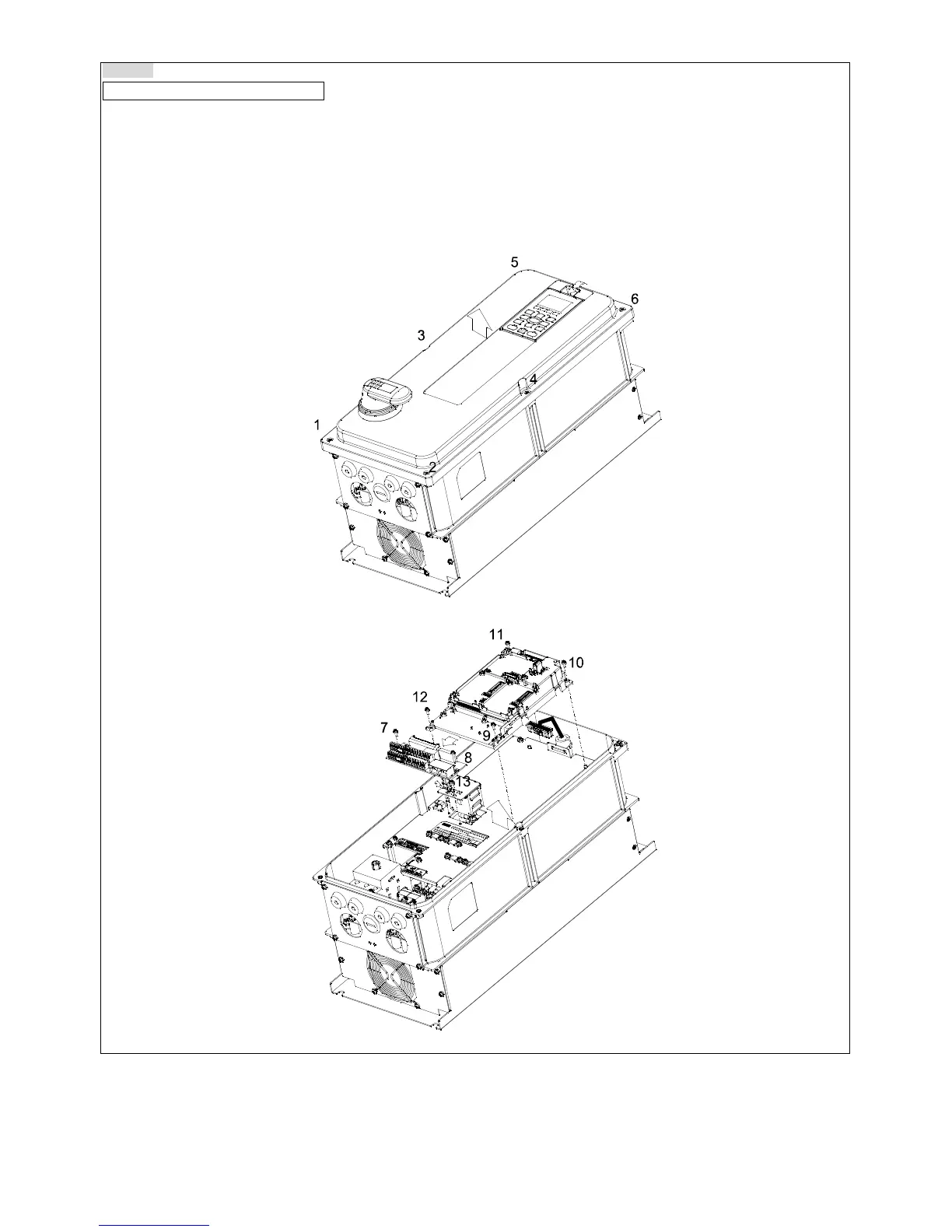

Figure 2
Figure 3
