Appendix B: CANopen Overview | VFD-VJ
Apx B - 3
B-1 CANopen Overview
CANopen Protocol
CANopen is a CAN-based higher layer protocol, and was designed for motion-oriented
machine control networks such as handling systems. Version 4.02 of CANopen (CiA DS301)
is standardized as EN50325-4. The CANopen specifications cover the application layer and
communication profile (CiA DS301), as well as a framework for programmable devices (CiA
302), recommendations for cables and connectors (CiA 303-1) and SI units and prefix
representations (CiA 303-2).

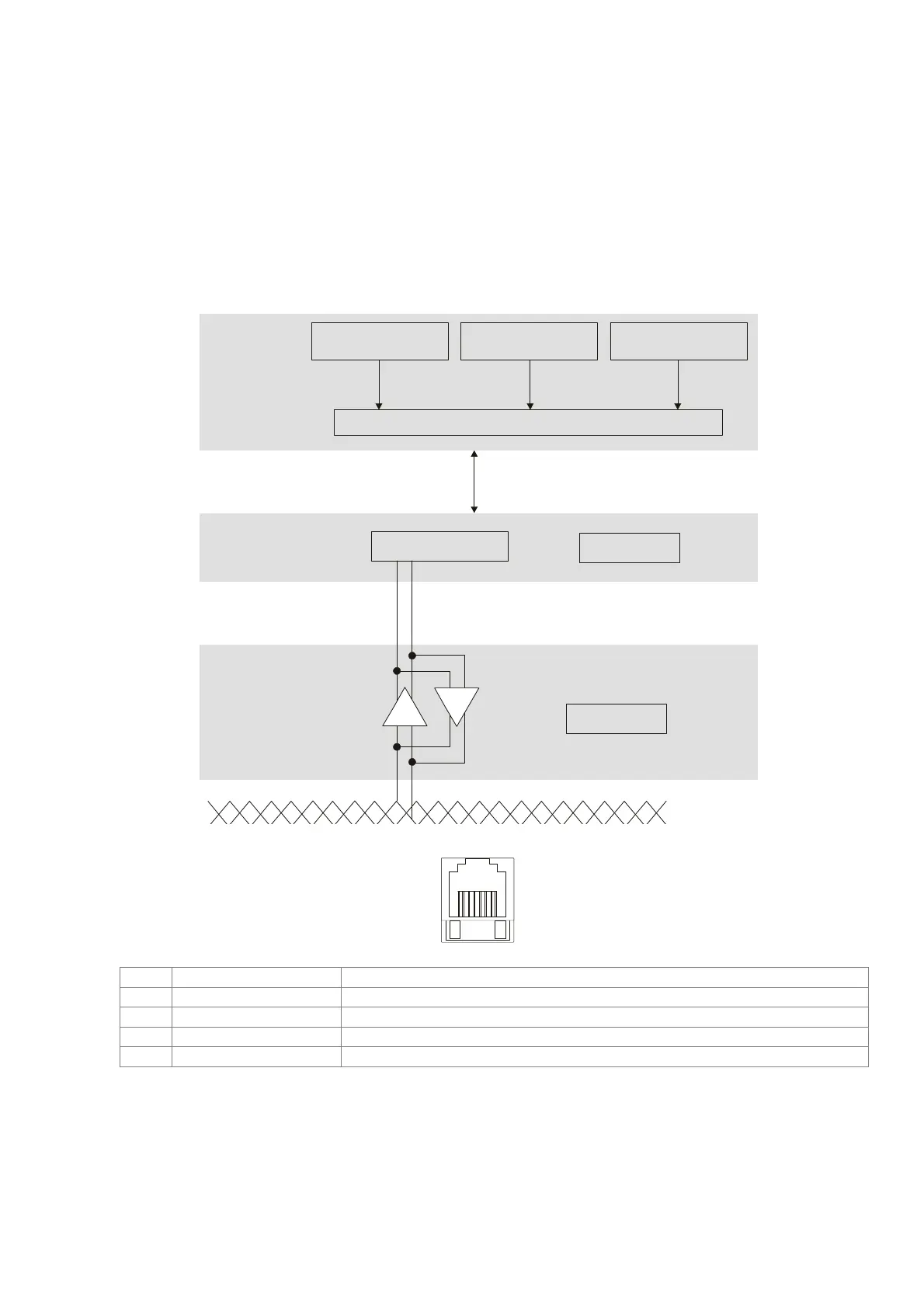

Device Profile CiA
DS-401
Device Profile CiA
DS-404
Device Profile CiA
DS-XXX
OSI Layer 7
Application Communication Profile CiA DS-301
CAN Controller
CAN 2.0A
OSI Layer 2
Data Link Layer
ISO 11898
OSI Layer 1
Physical Layer
+
-
+
-
CAN bus
RJ-45 Pin Definition
8~1
plug
PIN Signal
Description
1 CAN_H CAN_H bus line (dominant high)
2 CAN_L CAN_L bus line (dominant low)
3 CAN_GND Ground / 0 V /V-
6 CAN_GND Ground / 0 V /V-
CANopen Communication Protocol contains the following services:
NMT (Network Management Object)
SDO (Service Data Objects)
PDO (Process Data Object)
EMCY (Emergency Object)
