Appendix B: CANopen Overview | VFD-VJ
Apx B - 4
NMT (Network Management Object)
The Network Management (NMT) follows a Master/Slave structure for executing NMT service. A
network has only one NMT master, and the other nodes are slaves. All CANopen nodes have a

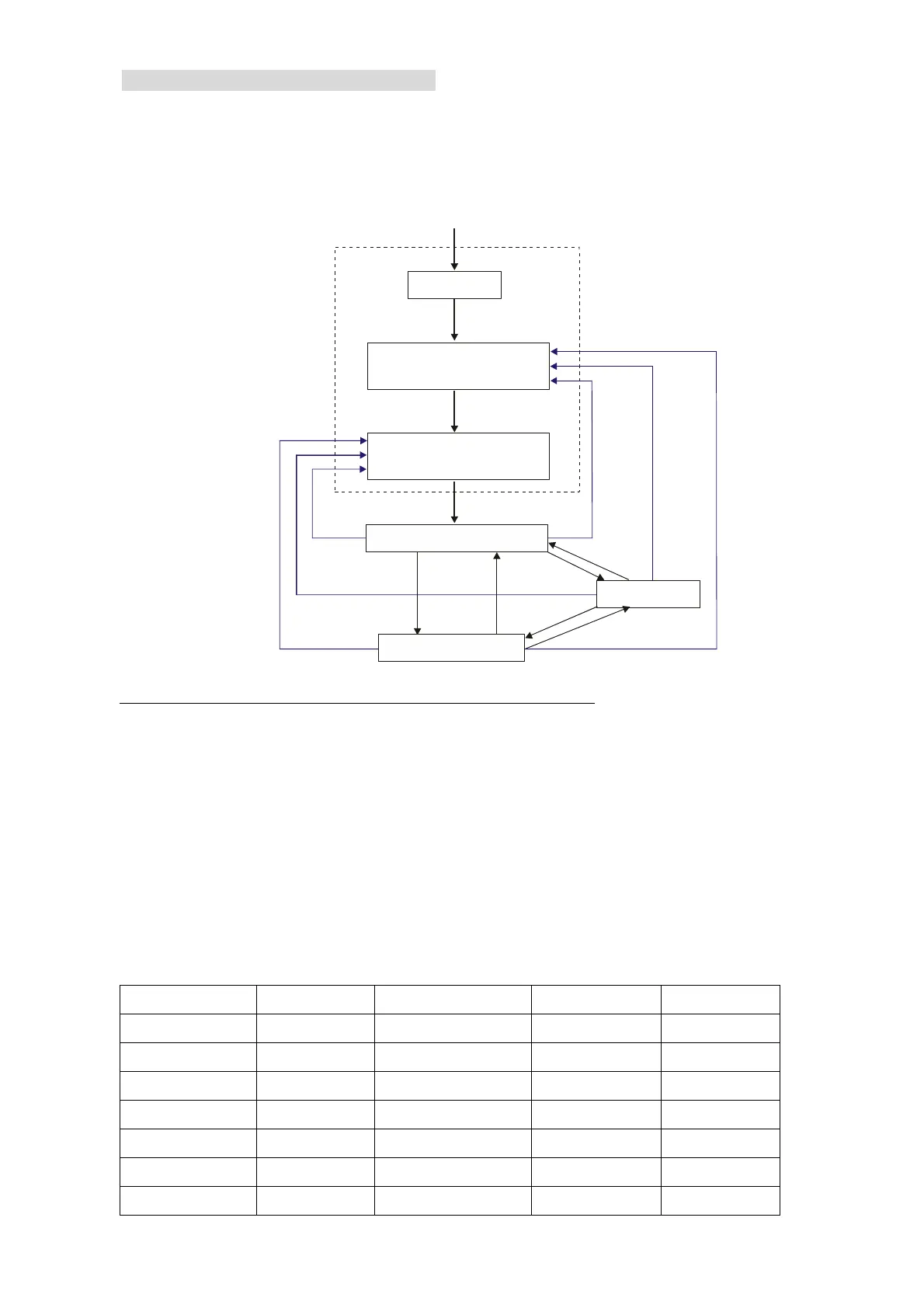

present NMT state, and the NMT master can control the state of the slave nodes. The following
shows the state diagram of a node:
Reset Communication
Initializing
Reset Application
Pre-Operation ABCDE
Stopped AB
Operation ABCDE
(1)
(15)
(16)
(2)F
(14)
(13)
(12)
(3) (4)
(11)
(10)
(9)
(7)(5)
(6)
(8)
(1) After power is applied, start in the auto-initialization state
(2) Automatically enter the pre-operational state
(3) (6) Start remote node
(4) (7) Enter the pre-operational state
(5) (8) Stop remote node
(9) (10) (11) Reset node
(12) (13) (14) Reset communication
(15) Automatically enter reset application state
(16) Automatically enter reset communication state
A: NMT
B: Node Guard
C: SDO
D: Emergency
E: PDO
F: Boot-up
Initializing Pre-Operational Operational Stopped
PDO ○
SDO ○ ○
SYNC ○ ○
Time Stamp ○ ○
EMCY ○ ○
Boot-up ○
NMT ○ ○ ○
