Chapter 4 Description of Parameters | VFD-VJ
4-22
5: Display the three-phase U, V, W output power angle (n)
(unit: deg)
U
6: Display the output power in kW (P)
U
7: Display the actual motor speed in rpm estimated by the motor
drive or encoder’s feedback.
(r 00: forward speed; - 00: negative speed) (unit: rpm)
U
U
8: Display the estimated output torque N-m (t 0.0: positive torque; -
0.0: negative torque) (unit: %)
U
U
9: Display the PG feedback (G) (unit: PLS)
U
10: Reserved
11: Display the signal value of the analog input terminal PS with
0~10V mapped to 0~100% (unit: %)
U
12: Display the signal value of the analog input terminal PI with
0~10V mapped to 0~100% (unit: %)
U
13: Display the signal value of the analog input terminal AUI with
-10~10V mapped to 0~100% (unit: %)
U
14: Display temperature of the power module IGBT in °C (t.)
U
15: Display temperature of the power capacitor °C
U
16: The status of digital input (ON/OFF)
U
17: The status of digital output (ON/OFF)
U
18: Reserved
U
19: The corresponding CPU pin status of the digital input
U
20: The corresponding CPU pin status of the digital output
U
21~24: Reserved
25: Display the signal value of the analog input terminal QI with
0~10V mapped to 0~100% (unit: %)
U
26: Display the actual pressure value (unit: Bar)
U
27: Display the kWh value (unit: kWh)
U
28: Display the motor temperature in °C (currently only support
KTY84)
U
29: Over load rate of hybrid servo drive, get overloaded at 100%
(d.) (unit: %)
U
30: Over load rate of motor with last digit A of HES, get EOL1 at
100% (M.) (unit: %)
U
31: Display current at braking (A.) (unit: A)
32: Display temperature of the braking chopper (4.) (unit: ºC)
33: Reserved
34: torque constant KT (unit: K)
U
U
U
37: Reserved
38: Reserved
39: Reserved
41: # of times to switch on/off of the soft start relays (L) (%)

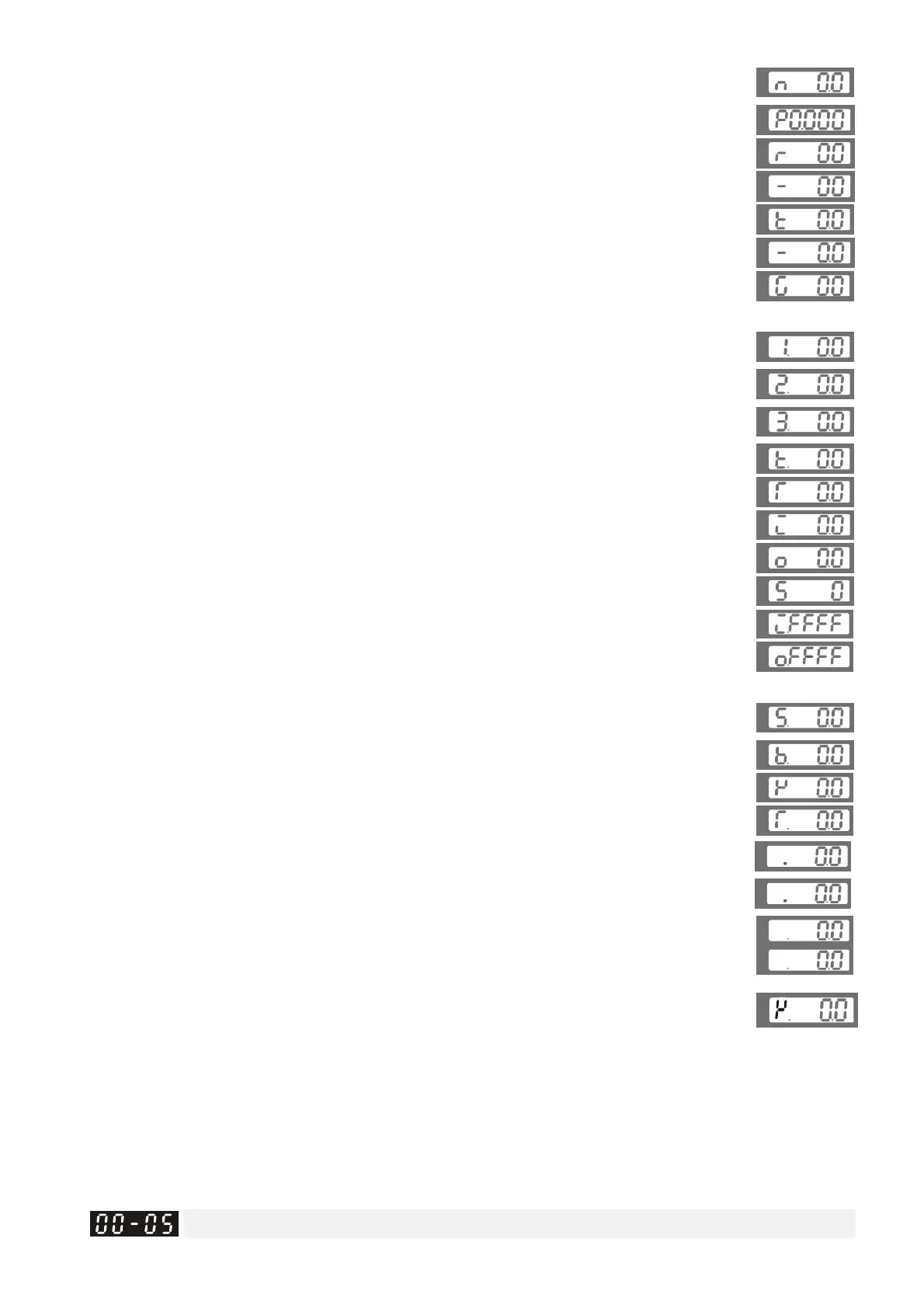

This parameter defines the contents to be displayed in the U page of the digital keypad KPVJ-LE02 (as
shown in the figure).
Reserved
