Chapter 1 Introduction MS300 (High Speed Model)
1-6

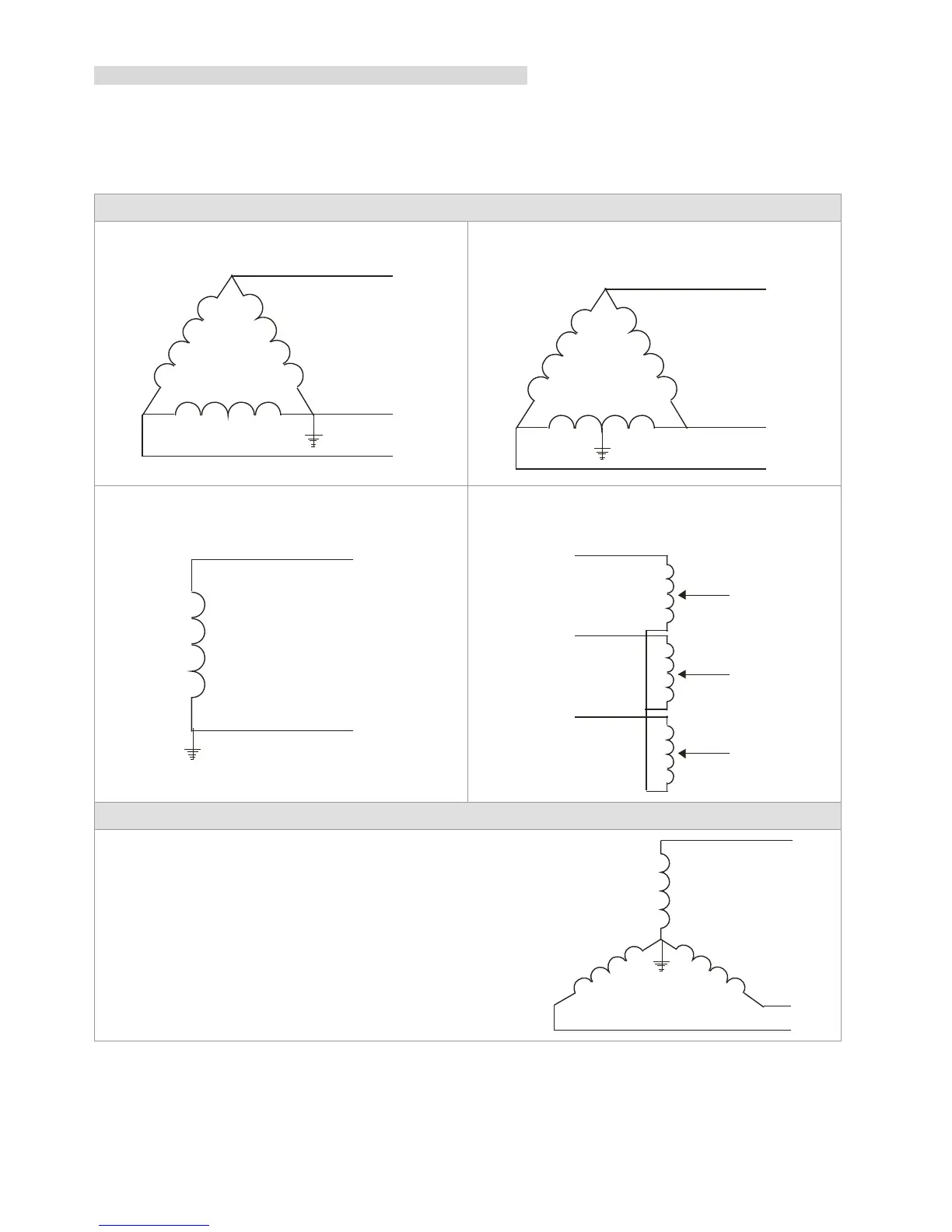

Asymmetric Ground System (Corner Grounded TN Systems)
Caution: Do not remove the RFI jumper while the input terminal of the drive carries power.
In the following four situations, the RFI jumper must be removed. This is to prevent the system from
grounding through the RFI and filter capacitors, damaging the drive.
RFI jumper must be removed
1. Grounding at a corner in a triangle configuration
L2
L3
L
1
2. Grounding at a midpoint in a polygonal
configuration
L2
L3
L
1
3. Grounding at one end in a single-phase
configuration
L
1
N
4. No stable neutral grounding in a three-phase
autotransformer configuration
L
1
L2
L3
L1
L2
L3
RFI jumper can be used
Internal grounding through RFI capacitors, which reduce
electromagnetic radiation. In a symmetrically grounding
power system with higher EMC requirements, an EMC filter
can be installed. As a reference, the diagram on the right is
a symmetrical grounding power system.
L2
L3
L
1
