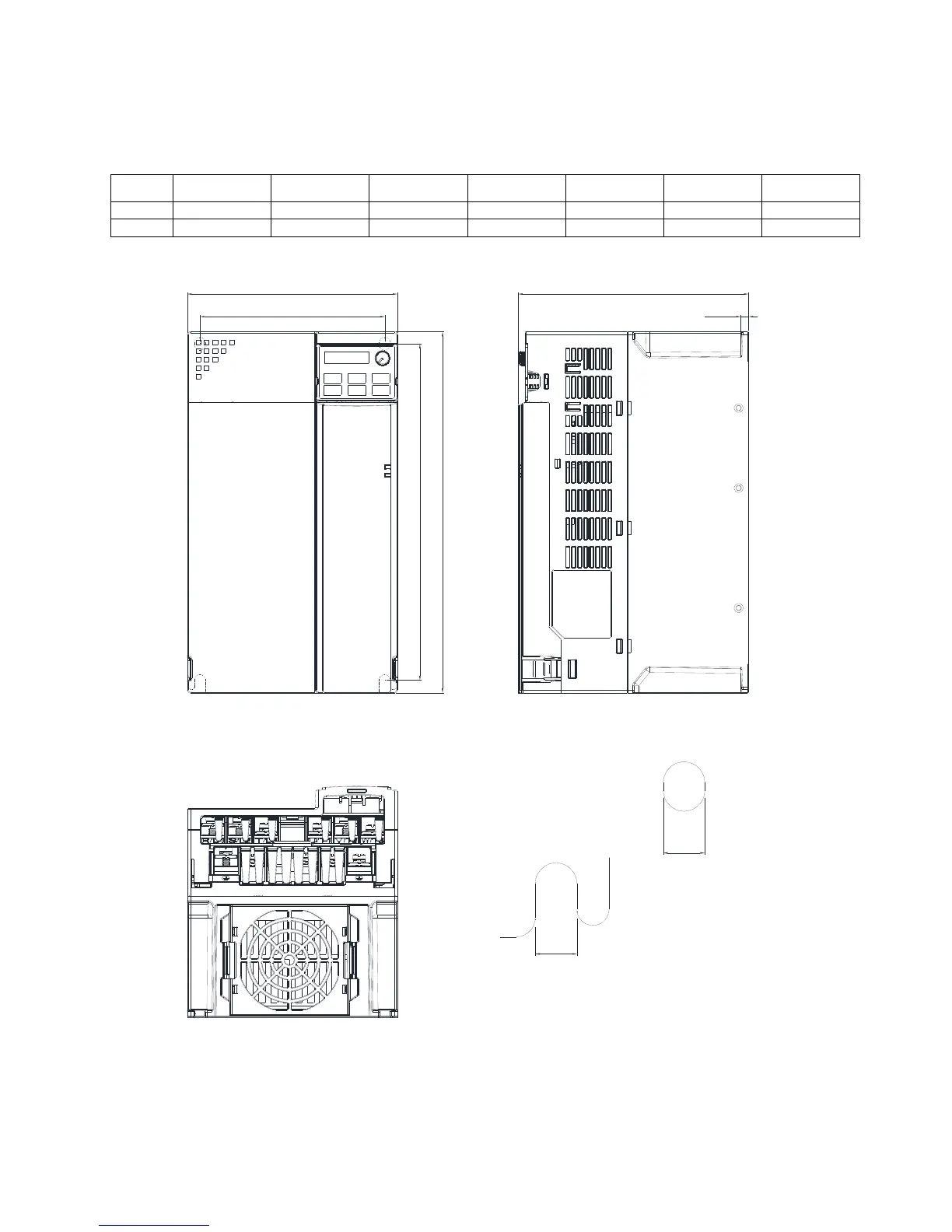

Chapter 2 Dimensions MS300 (High Speed Model)
2-5
Frame F
F1: VFD65AMS23ANSHA; VFD65AMS23ENSHA; VFD38AMS43ANSHA; VFD38AMS43ENSHA;
VFD45AMS43ANSHA; VFD45AMS43ENSHA
F2: VFD38AMS43AFSHA; VFD45AMS43AFSHA
Unit: mm [inch]
Frame W H D W1 H1 D1 S1
F1 175.0 [6.89] 300.0 [11.81] 192.0 [7.56] 154.0 [6.06] 279.5 [11.00] 6.5 [0.26] 8.4 [0.33]
F2 175.0 [6.89] 300.0 [11.81] 244.0 [9.61] 154.0 [6.06] 279.5 [11.00] 6.5 [0.26] 8.4 [0.33]
S1
S1
W
W1
H
H1
D
D1
Mounting Hole
Mounting Hole
