Chapter 8 Optional Cards MS300 (High Speed Model)
8-12
8-3 CMM-PD01 PROFIBUS Option Card
Features
1. Supports PZD control data exchange.
2. Supports PKW polling AC motor drive parameters.
3. Supports user diagnosis function.
4. Auto-detects baud rates; supports Max. 12 Mbps.

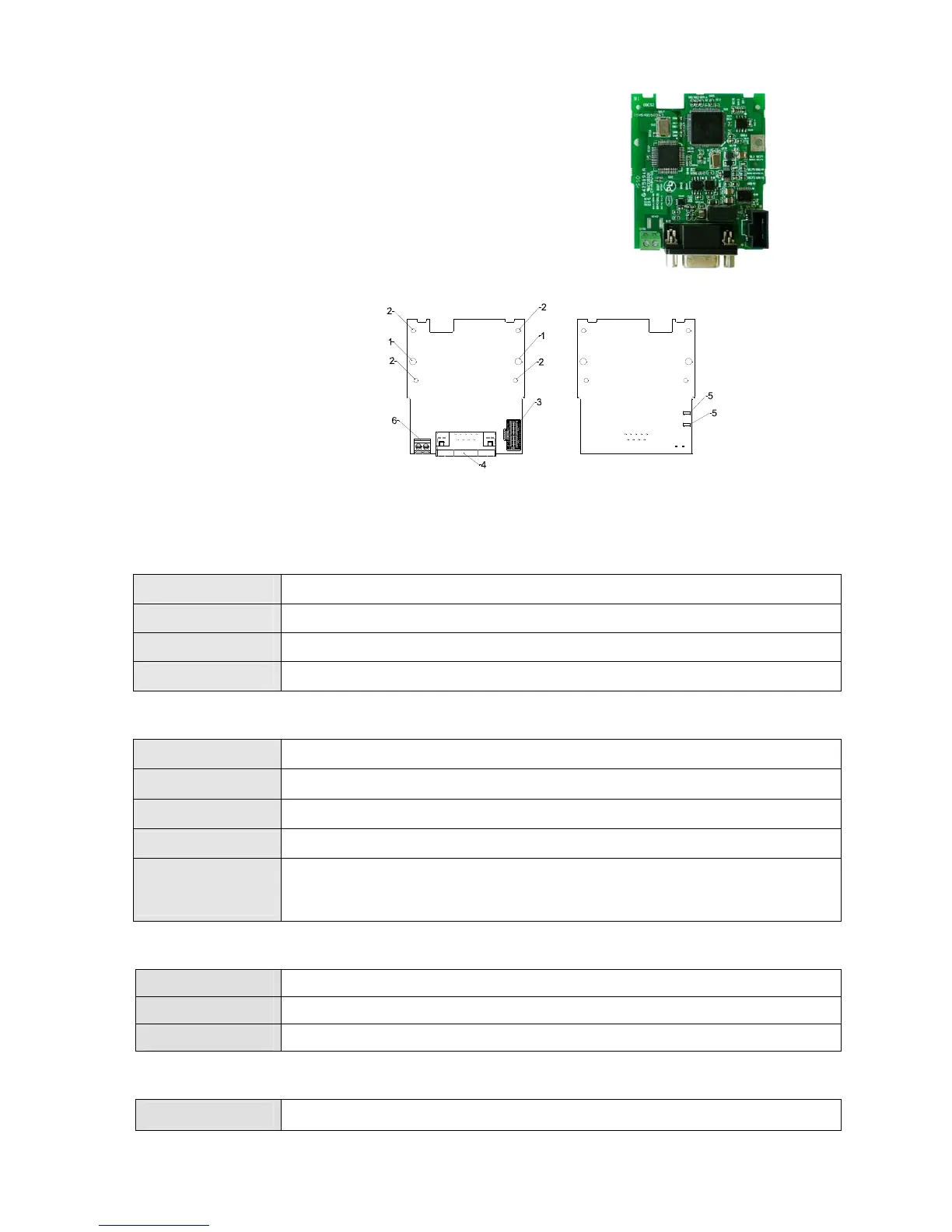

Product File
1. Screw fixing hole
2. Positioning hole
3. AC motor drive
connection port
4. Communication port
5. Indicator
6. Ground terminal block
Specifications
PROFIBUS DP Connector
Interface
DB9 connector
Transmission
High-speed RS-485
Transmission cable
Shielded twisted pair cable
Electrical isolation
500 VDC
Communication
Message type
Cyclic data exchange
Module name
CMM-PD01
GSD document
DELA08DB.GSD
Product ID
08DB (HEX)
Serial transmission
speed supported
(auto-detection)
9.6 Kbps; 19.2 Kbps; 93.75 Kbps; 187.5 Kbps; 125 Kbps; 250 Kbps; 500 Kbps;
1.5 Mbps; 3 Mbps; 6 Mbps; 12 Mbps (bit per second)
Electrical Specification
Power supply
5 VDC (supplied by AC motor drive)
Insulation voltage
500 VDC
Power consumption
1 W
Mechanical Specification
Weight
28 g
Wire: 24~20 AWG
Torque: 2 kg-cm / [1.7 Ib-in.] / [0.2 Nm]
