Chapter 1 Introduction MS300 (High Speed Model)
1-2
After receiving the AC motor drive, please check for the following:
1. Please inspect the unit after unpacking to ensure it was not damaged during shipment. Make sure
that the part number printed on the package corresponds with the part number indicated on the
nameplate.
2. Make sure that the mains voltage is within the range as indicated on the nameplate. Please install
the AC motor drive according to this manual.
3. Before applying the power, please make sure that all devices, including mains power, motor, control
board and digital keypad, are connected correctly.
4. When wiring the AC motor drive, please make sure that the wiring of input terminals “R/L1, S/L2,
T/L3” and output terminal “U/T1, V/T2, W/T3” are correct to prevent damage to the drive.
5. When power is applied, select the language and set parameters via the digital keypad (KPMS-LE01).
When executing a trial run, please begin with a low speed and then gradually increase the speed
until the desired speed is reached.

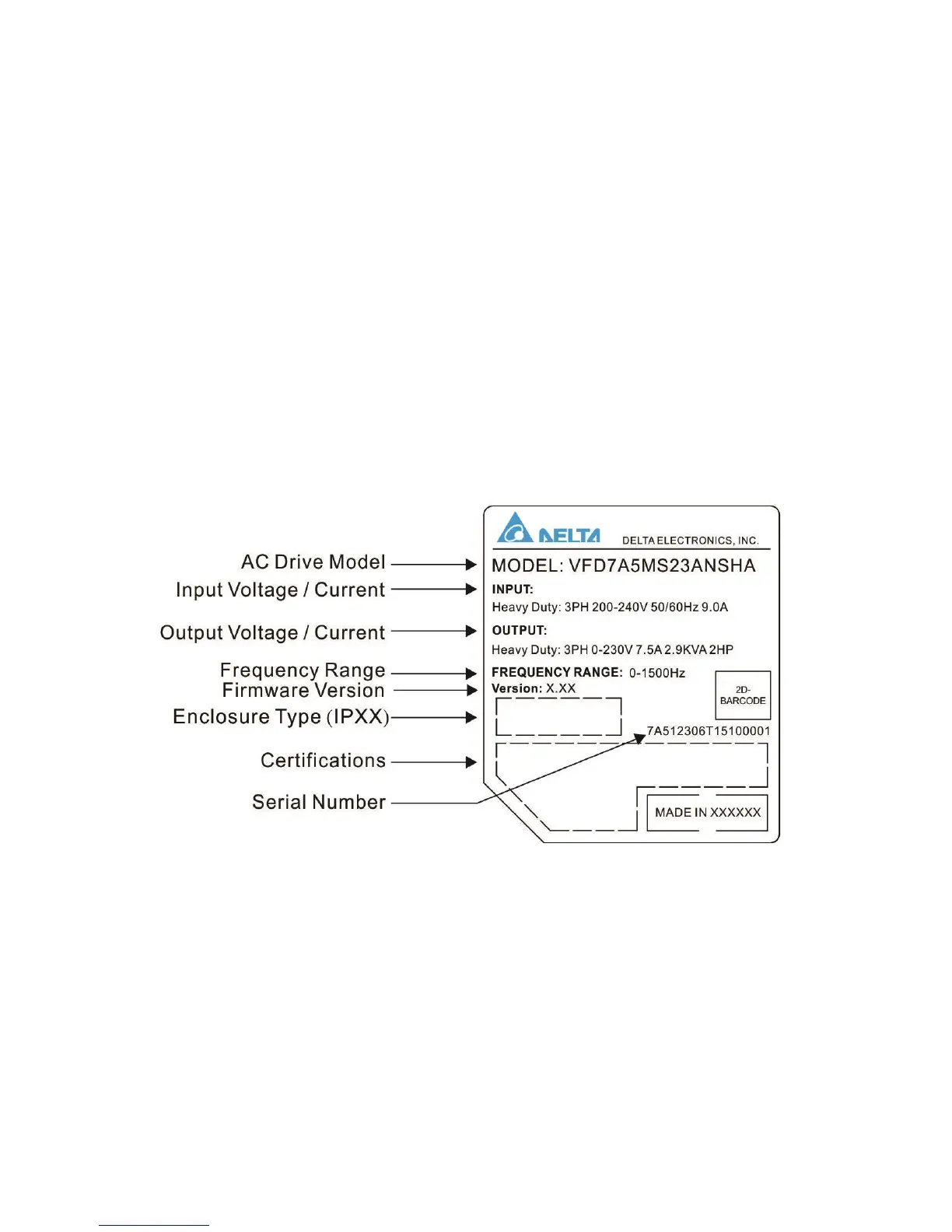

1-1 Nameplate Information
