Chapter 7 Optional Accessories MS300 (High Speed Model)
7-38
7-11 Keypad Panel Mounting
KPMS-LE01

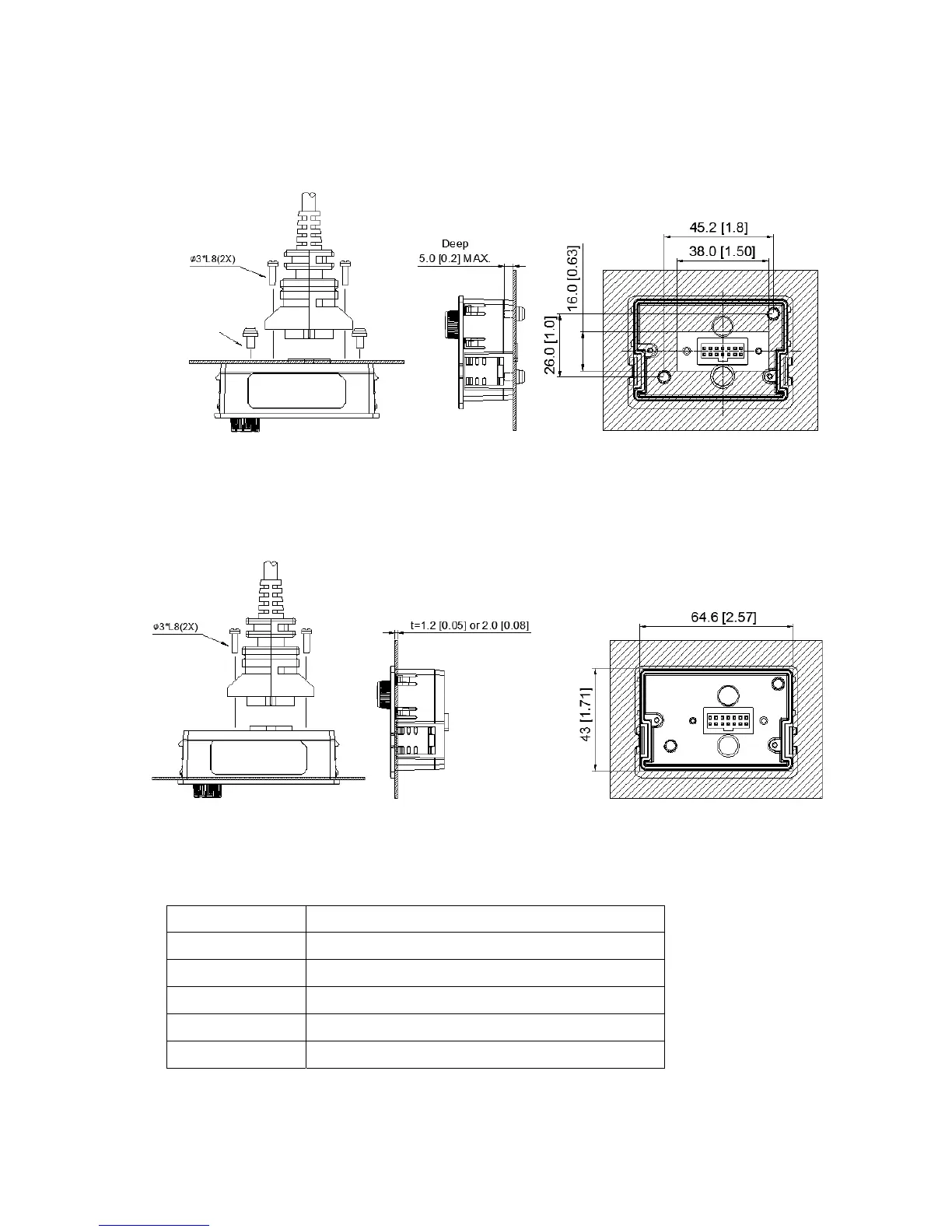

Method 1: Direct installation on a plate (unit: mm [inch])
Method 2: Mounting through a plate (unit: mm [inch])
Thickness = 1.2 [0.05] or 2.0 [0.08]
※ The extension cable models and cable length specifications are in the following table:
Models Extension Cable Length (Unit: mm [inch] )
EG0610C 600 [23.62]
EG1010C 1000 [39.37]
EG2010C 2000 [78.74]
EG3010C 3000 [118.11]
EG5010C 5000 [196.85]
Torque:
8~9 kg-cm
[6.94~7.81 lb-in.]
To Next Page
