Chapter 4 WiringMS300 (High Speed Model)
4-5

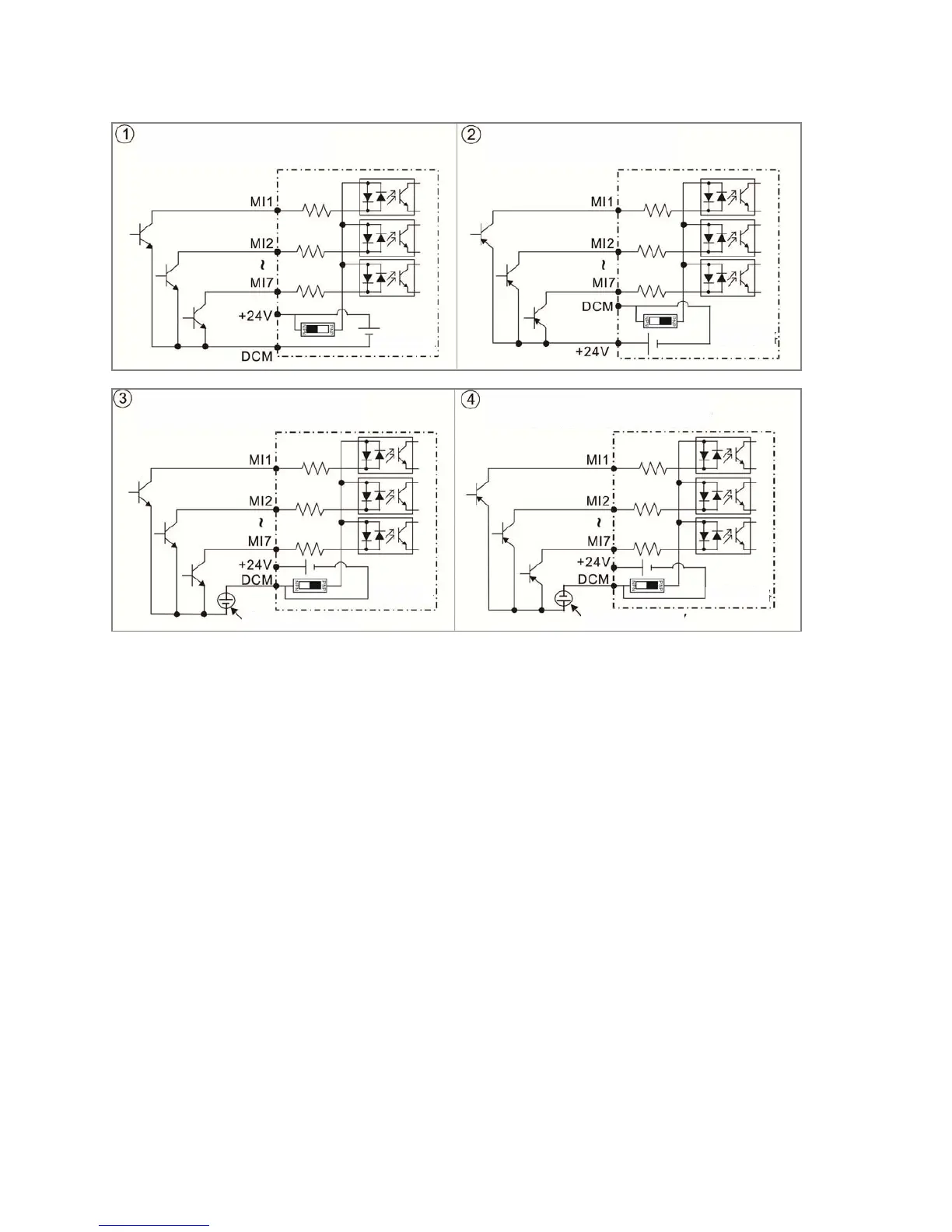

Figure 2
SINK (NPN) / SOURCE (PNP) Mode
Sink Mode
with internal power (+24 VDC)
Source Mode
with internal power (+24 VDC)
internal
circuit
internal
circuit
Sink Mode
with external power
Source Mode
with external power
internal
circuit
internal
circuit
external power +24V external power +24V
