Chapter 7 Optional AccessoriesMS300 (High Speed Model)
7-21
Recommended max. wiring gauge when installing zero phase reactor
Model # of Zero
Phase Reactor
Max, Wire Gauge
or LUG width
Max. Wire Gauge AWG
(1Cx3)
Max. Wire Gauge AWG
(1Cx4)
75 °C 90 °C 75 °C 90 °C
RF008X00A 13 mm 3 AWG 1 AWG 3 AWG 1 AWG
T600006L2040W453 11 mm 9 AWG 4 AWG 6 AWG 6 AWG
T600006L2050W565 16 mm 1 AWG 2/0 AWG 1 AWG 1/0 AWG
Zero Phase Reactor for Signal Cable

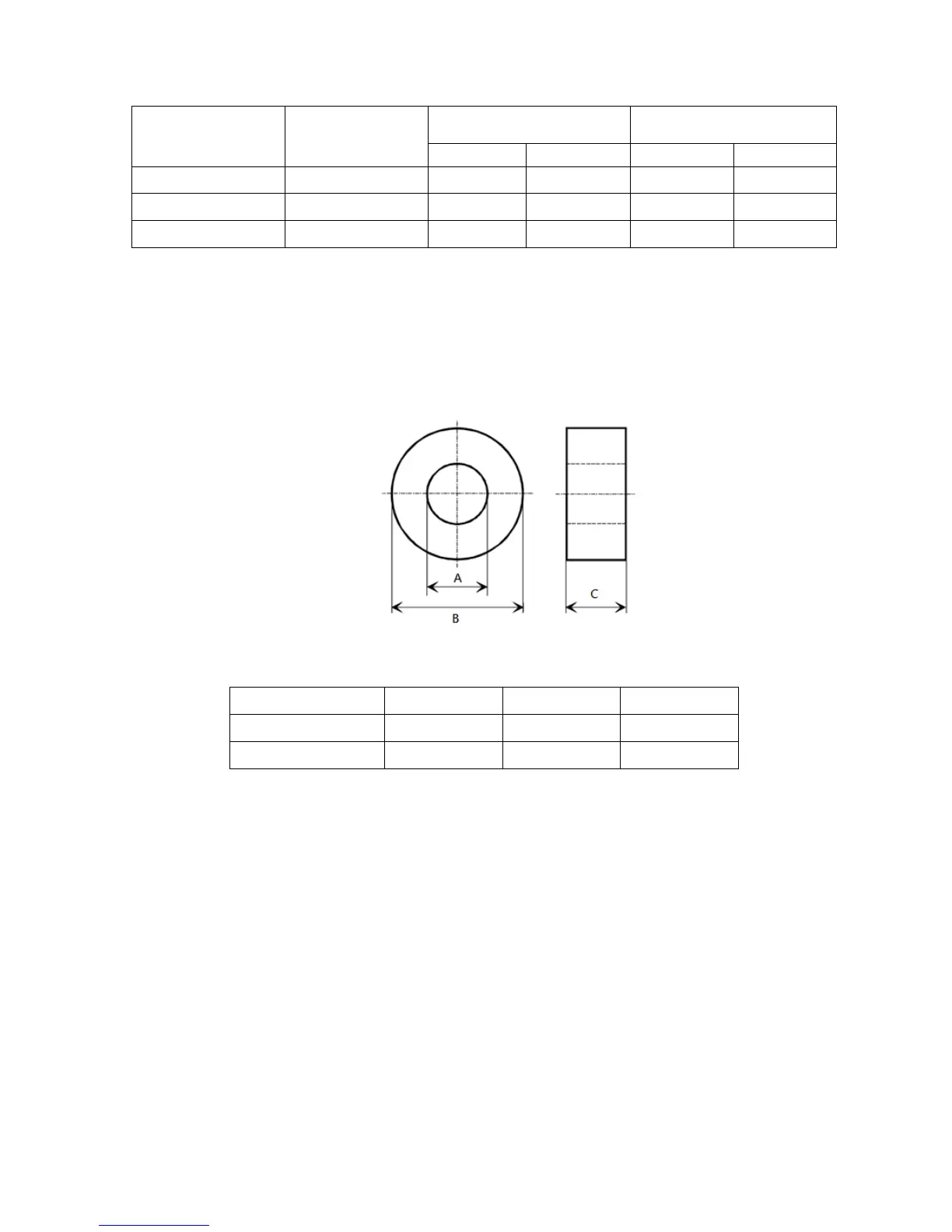

To solve interference problems between signal cables and electric devices, install a zero phase
reactor on signal cable. Install it on the signal cable which is the source of the interference to suppress
the noise for a better signal. The model names and dimensions are in the table below.
Model A B C
T60004L2016W620 10.7 17.8 8.0
T60004L2025W622 17.5 27.3 12.3
Unit: mm
To Next Page
