Chapter 7 Optional AccessoriesMS300 (High Speed Model)
7-27

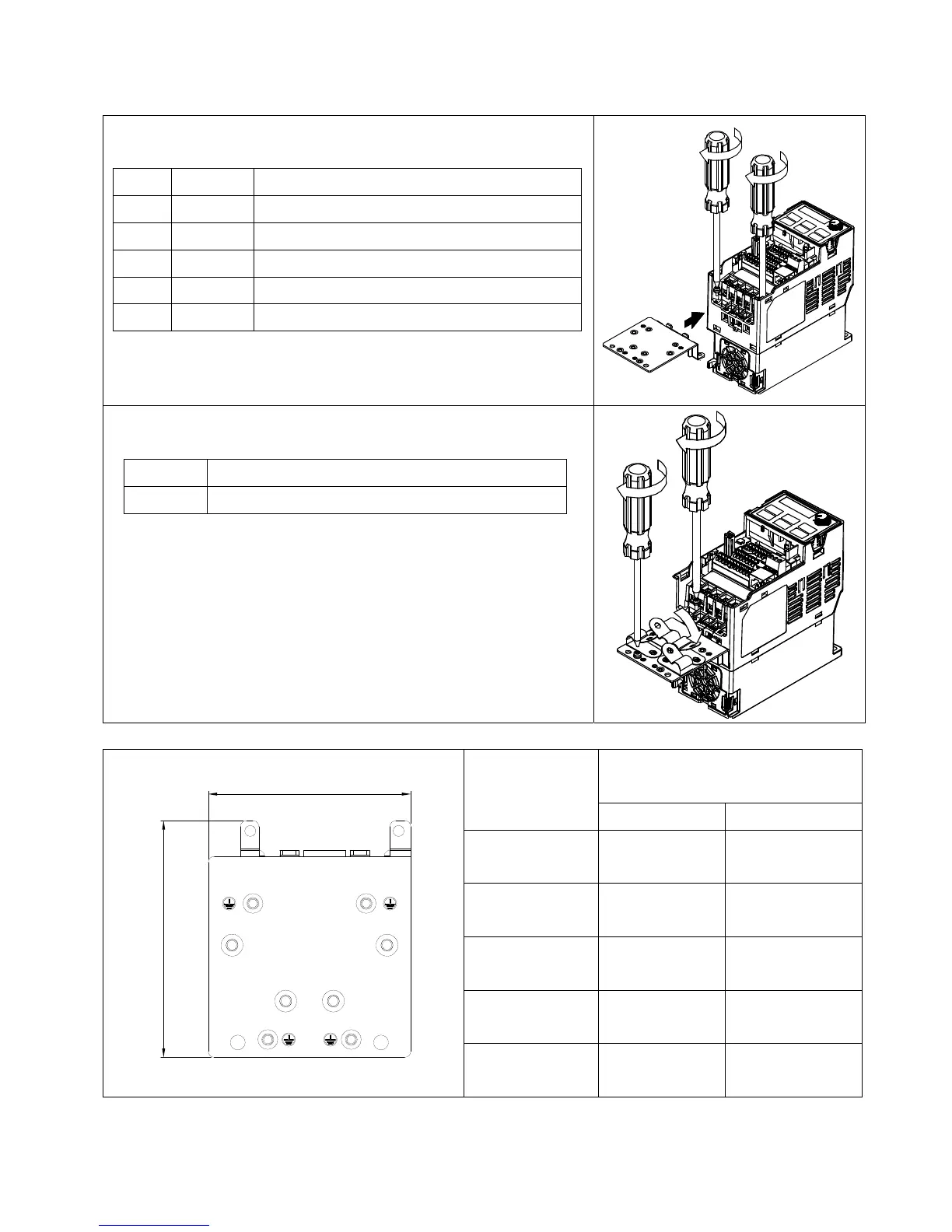

Installation
(Frame
B model as an example)
1. As on the right, fix the iron plate on the AC motor drive.
Torque value:
Frame Screw Torque
B M4 6~8 kg-cm / [5.2~6.9 lb-in.] / [0.59~0.78 Nm]
C M4 6~8 kg-cm / [5.2~6.9 lb-in.] / [0.59~0.78 Nm]
D M3 4~6 kg-cm / [3.5~5.2 lb-in.] / [0.39~0.59 Nm]
E M3 4~6 kg-cm / [3.5~5.2 lb-in.] / [0.39~0.59 Nm]
F M4 6~8 kg-cm / [5.2~6.9 lb-in.] / [0.59~0.78 Nm]
2. After selecting suitable R-clip according to the wire gauge
used, fix the R-clip on shield plate.
Screw Torque
M4 6~8 kg-cm / [5.2~6.9 lb-in.] / [0.59~0.78 Nm]
Dimensions of EMC Shield Plate
a
b
Model
Dimensions of Shield Plate
mm [inch.]
a b
MKM-EPB 67.7 [2.67] 79.7 [3.14]
MKM-EPC 78.0 [3.07] 91.0 [3.58]
MKM-EPD 103.4 [4.07] 97.0 [3.82]
MKM-EPE 124.3 [4.89] 77.4 [3.05]
MKM-EPF 168.0 [6.61] 80.0 [3.15]
