Chapter 8 Optional Cards MS300 (High Speed Model)
8-7

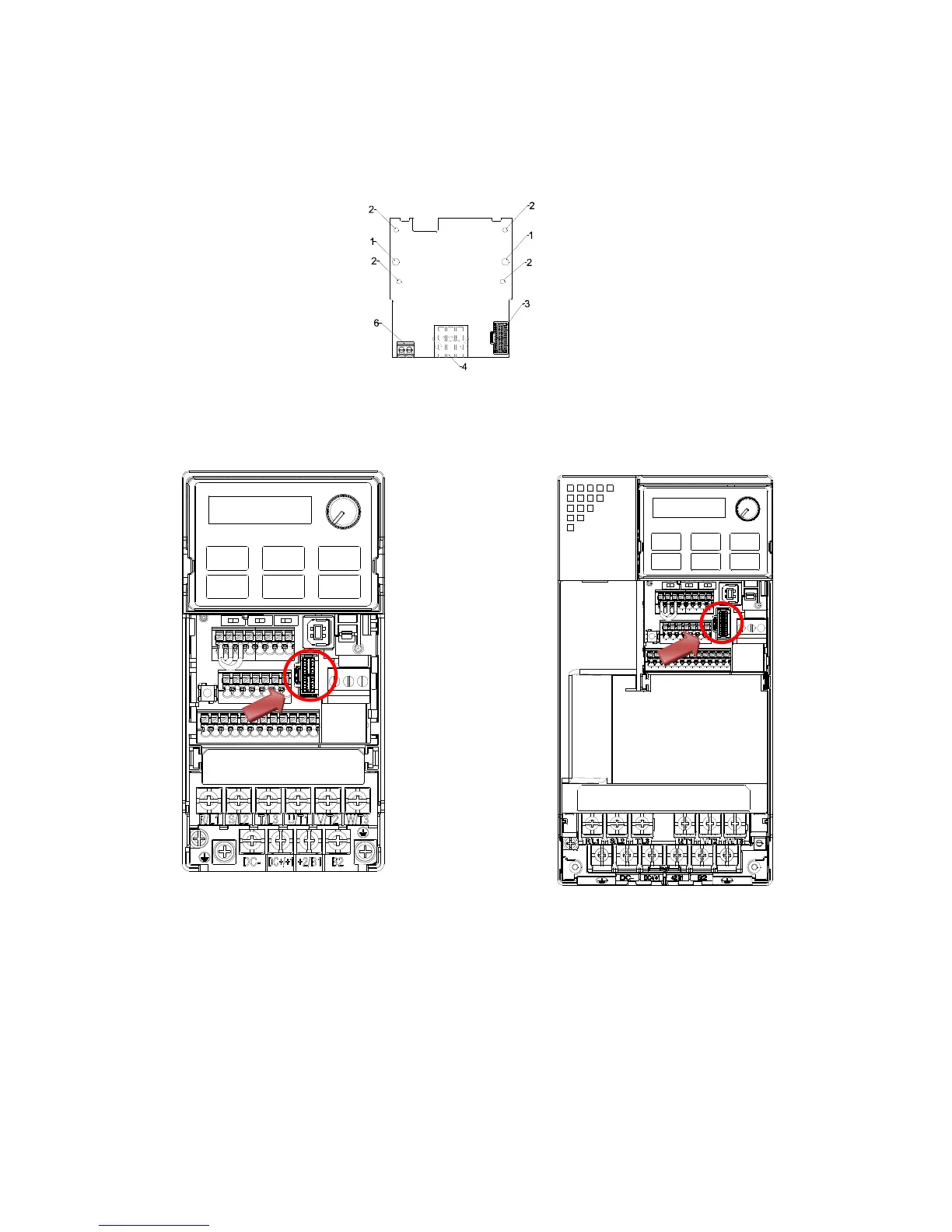

 Installation: B side of the connecting wire connects to connection port on option card as No.3 of
CMM-MOD01 shown in Fig. 8-13. See each section in Chapter 8 for connection port of
other option cards; A side of the connecting wire connects to connection port on control
board
as red circles shown in Fig. 8-13 ~ 8-15.
Frame B~C Frame D~E
Fig. 8-13
Fig. 8-14
Fig. 8-15
