118 - User's Manual

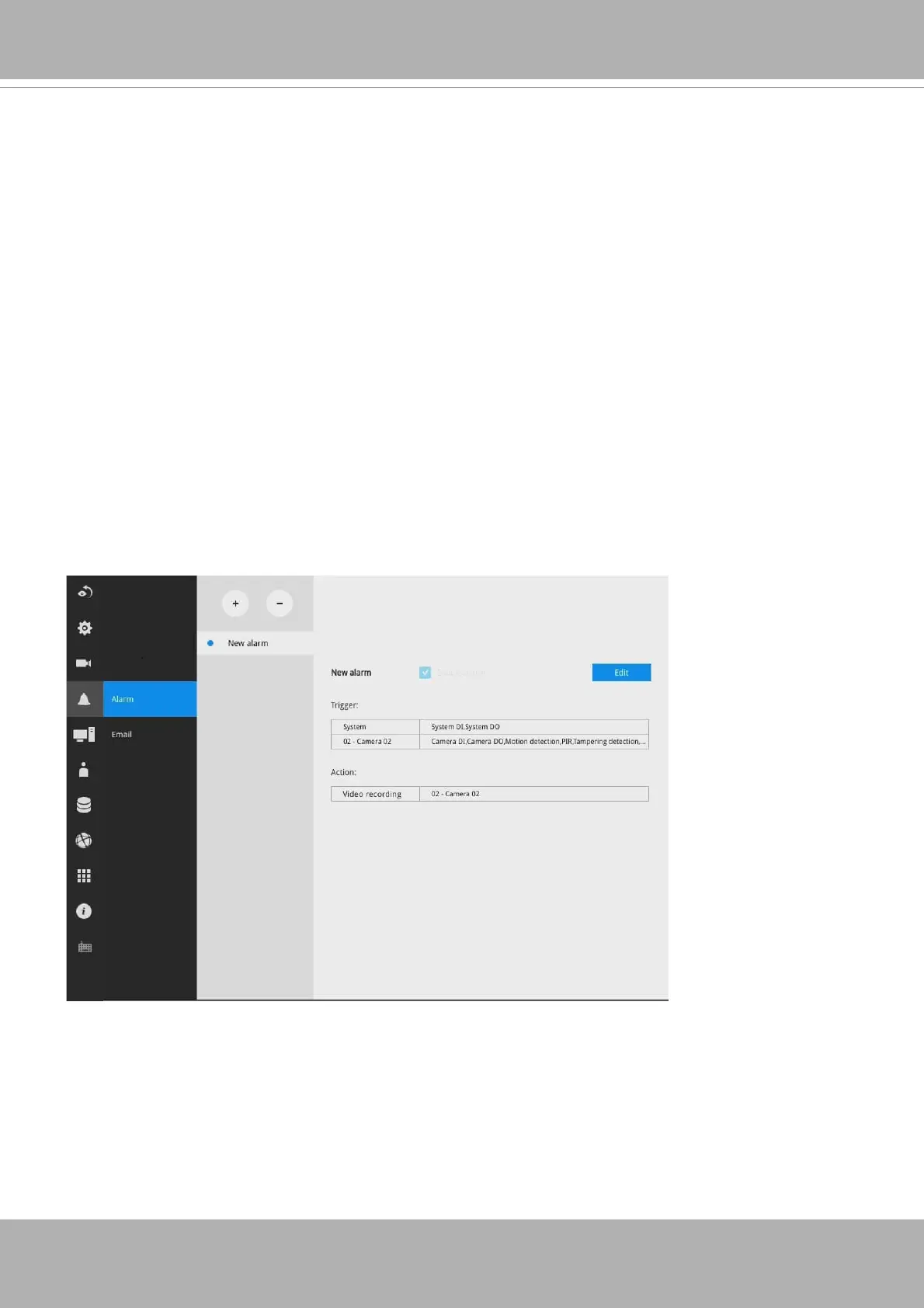

3-5-12. Settings–Alarm–Alarm
The events reported from individual cameras' digital inputs, digital outputs, and motion detection
can be accommodated in the NVR system's alarm settings. These events will then be reported
or trigger corresponding actions as follows:
1.
Record
the video by the time the event is triggered.
2. Reporting events via
Email
with
snapshots
attached.
3. Sound the onboard
buzzer
.
4. Triggering video snapshot and text message by the occurrences of events to an
FTP
site.
5. Triggering a camera's
DO
.
6. Triggering a
PTZ
camera(s) for its lens to move to a
preset
position.
7. Sending notifi cation to the
VSS CMS
software.
8. Sending a
full screen
live view on the connected monitor.
You can create up to 10 instances of alarm.
Hardware connections to DIs or DOs, e.g., window sensors, should be made separately. The
motion detection confi guration can be made in the Camera confi guration window.
