The Main Control Portal
3-1. Layout

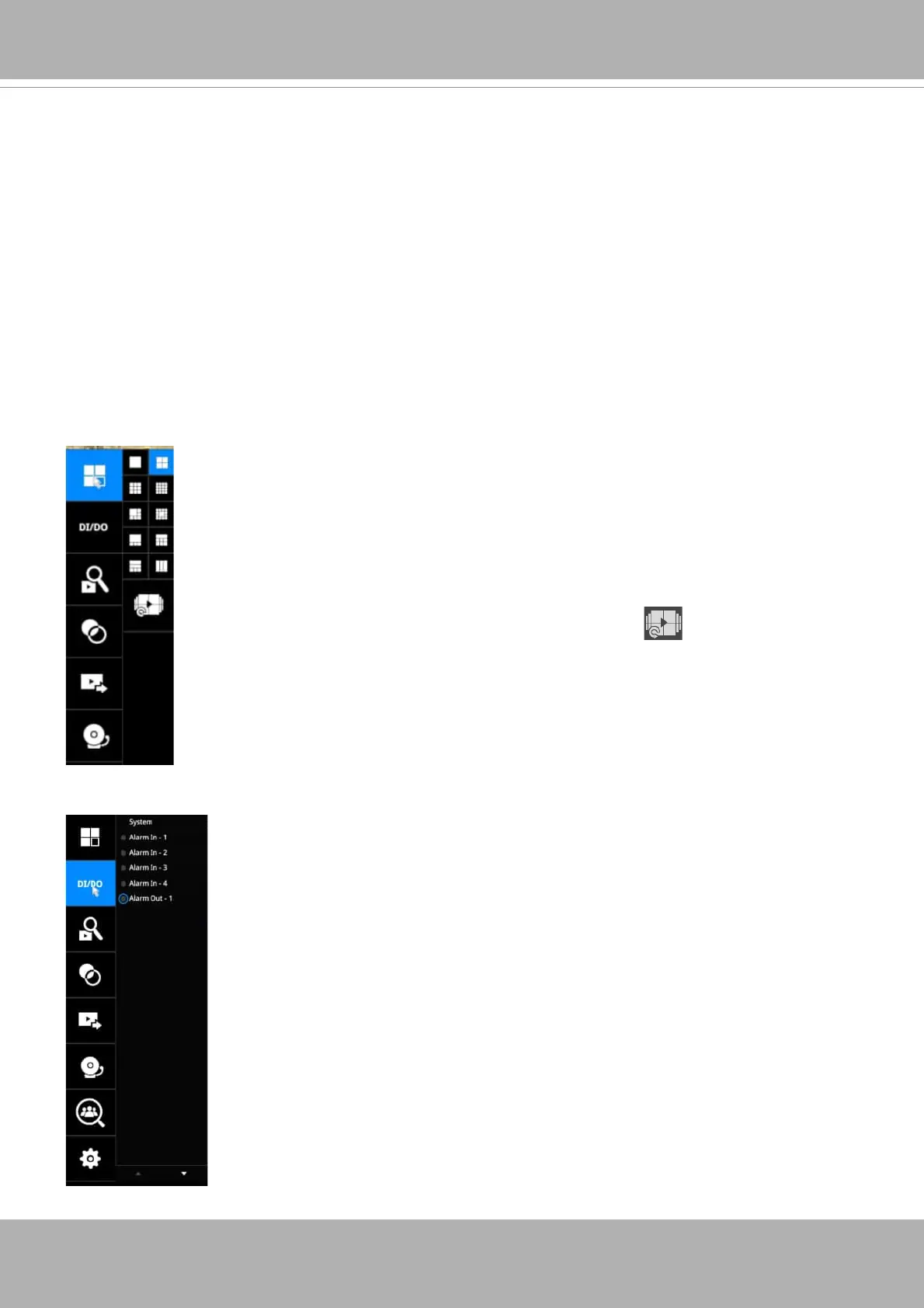

The local layouts:
ND9326P: 1x1, 2x2, 3x3, 1M+5, 1P+3, 1P+6, 2P+3, 3V
ND9426P: 1x1, 2x2, 3x3,4X4, 1M+5,1M+7, 1M+12, 1P+3, 1P+6, 2P+3, 2V+3,
1V+6, 3V
If you select the single view layout, the rotation button will appear. Click the
rotation button below to let the system swap the display of diff erent cameras by
every 10 seconds. The rotation speed is confi gurable via Settings > System >
Display.
Move your mouse cursor across the screen to display the portal.
3-2. DI/DO
Click on the DI/DO button to display the full list of all DI and DO signals
(whether they are connected or not) from all cameras in the confi guration.
If a digital input signal is triggered, e.g., the DI-4 on the left, its indicator will
turn solid white.
Note that you should click again to disable a DO after it is triggered.
Otherwise, the DO will be constantly triggered.
