11 Accessories
11.1 Assemblies

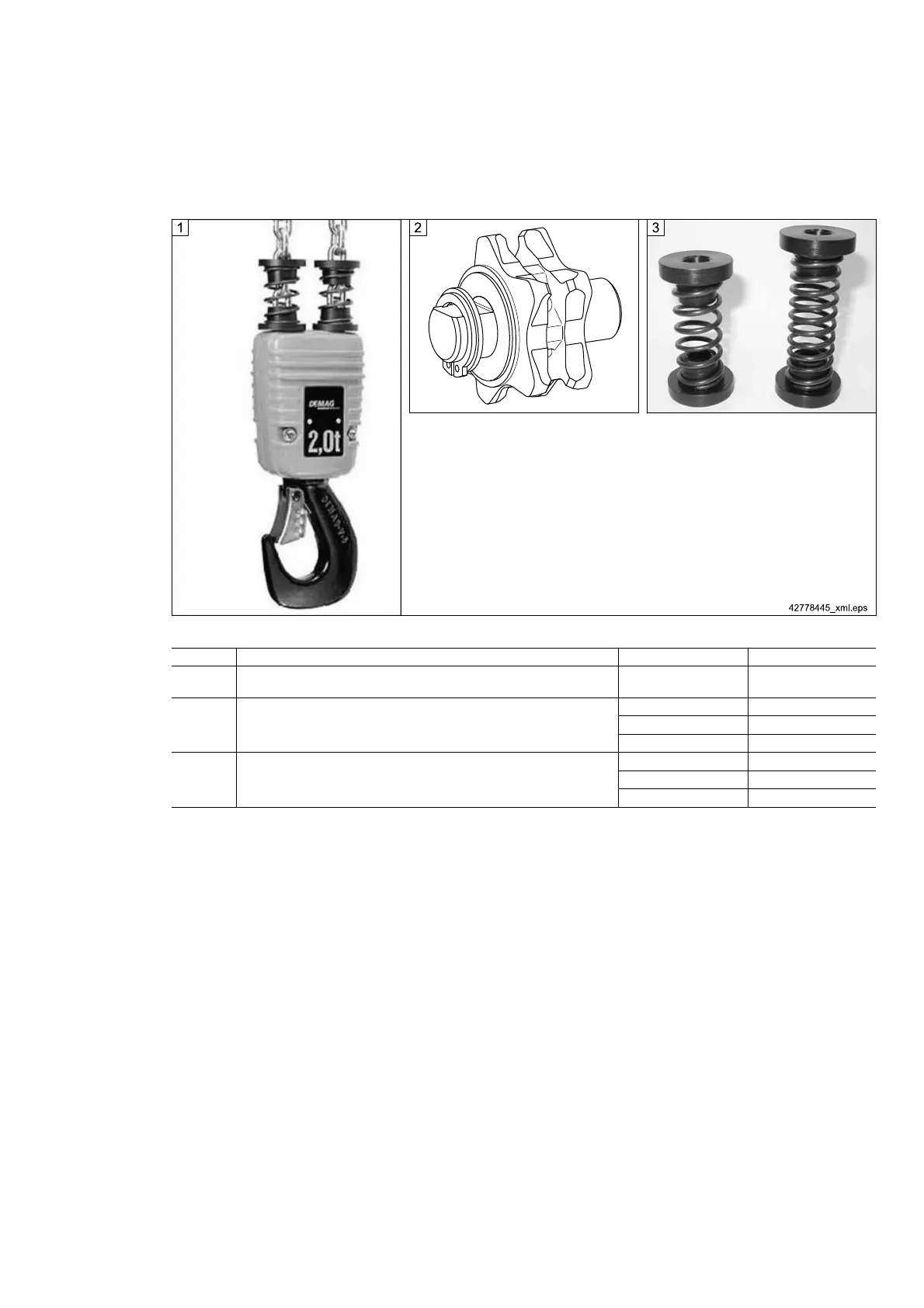

Fig. 92
Item
Description Size Part no.:
1
Bottom block with switch-off springs (e.g. for hot applications) consisting of:
bottom block, switch-off springs, grooved pins with round head, capacity plates
DC-Com 10 2/1 715 431 45
2
Return sprocket assembly:
1 return sprocket, 1 pin, 1 retaining ring, 1 supporting washer, 2 thrust washers,
2 needle-roller assemblies
DC Com 1/2 717 808 45
DC-Com 5 718 808 45
DC-Com 10 715 808 45
3
Switch-off spring (e.g. for hot applications) consisting of:
2 switch-off sleeves, 1 pressure spring each for V1 und V2
(for DC 10, 2/1 reeving: 2x part no.)
DC Com 1/2
717 250 45
DC-Com 5 718 250 45
DC-Com 10 715 250 45
Tab. 88
21480244/181209
107
