DEMAG DC-Com 2 - Circuit Diagram with E 11 - E 34 Travel Drive; Control Card

5.9.2 Circuit diagram with E 11 - E 34 travel drive
For further circuit diagrams with E 11 - E 34 travel drive see ⇒ Tab. 3, Page 7 Technical data E 11 - E 34 DC travel
drive.
For further information on the E 11 - E 34 travel drive see ⇒ Tab. 3, Page 7 Assembly instructions E 11 - E 34 DC
travel drive.
For further information on the cross-travel limit switch, part no. 716 663 45, see ⇒ Tab. 3, Page 7 Assembly in‐
structions E 11 - E 34 DC travel drive.
5.9.3 Control card

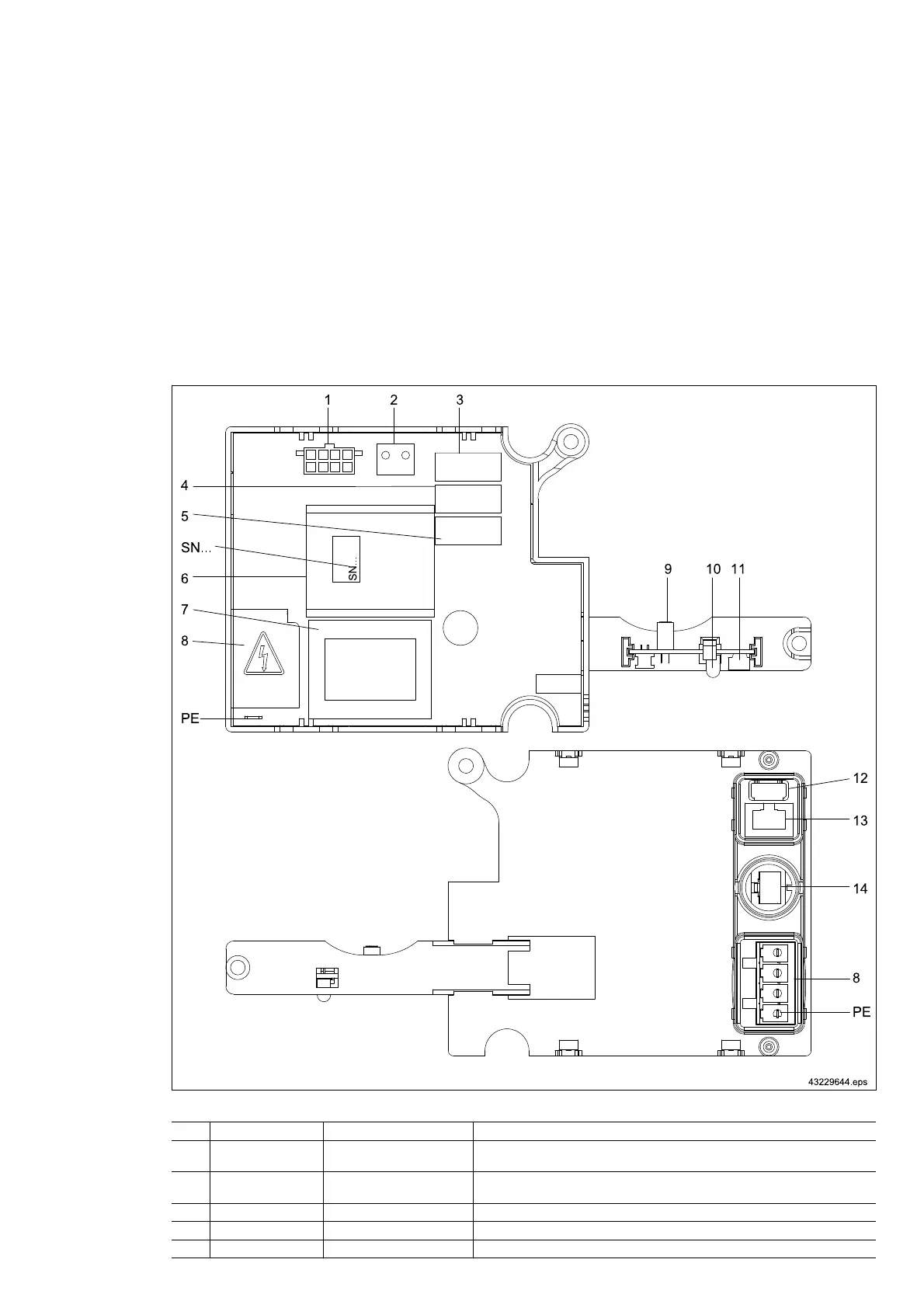

Fig. 29
Item
Designation Terminal strip Function
1 Plug-and-socket con‐
nector
X8 Motor
2 Plug-and-socket con‐
nector
X6 Brake
3 relay Slow / Fast
4 relay Lifting / Lowering
5 relay Lifting / Lowering (from 2009)
