8.5.6 Load hook
8.5.6.1 Checking the load hook

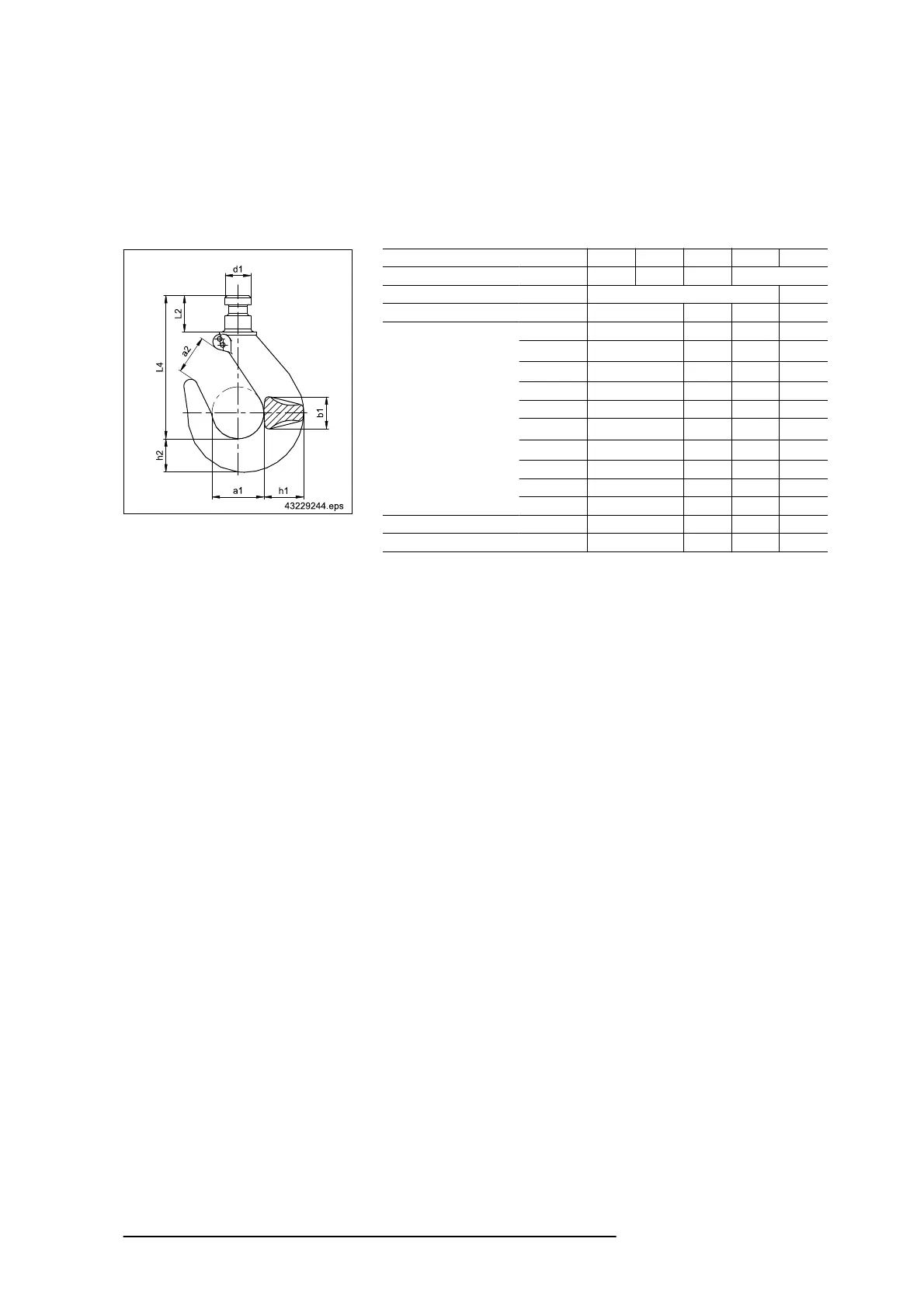

Fig. 57
SWL
[kg] 125 250 500 1250 2000
Chain hoist DC-Com 1 2 5 10
Reeving 1/1 2/1
Load hook Type T010 T020 T04 V 5
Dimensions [mm]
a1 28 34 40 50
a2
nom
30)
22,8 25,4 33,7 39
a2
max
25,08 27,94 37,07 42,9
b1 16 21 27 29
h1 20 26,1 34 44
h2
nom
31)
16,9 21,8 27,7 34
h2
min
16,055 20,71 26,315 32,3
L2 20 24 28 24
L4 82 94 116 154
d1 15 17 20 38
Max. test force [kN] 6 13 25 50
Max. hook force [kN] 13 25 50 100
Tab. 58
8.5.6.2 Checking the return sprocket
The return sprocket must be checked for smooth turnability every month. For this purpose it may be necessary to
remove fixed crossbars from the bottom block.
Check whether the bottom block moves correctly when lifting and lowering. Jerky movements of the bottom block
indicate wear.
We recommend replacing the return sprocket every second time the chain is replaced.
30)
Permissible deviation +10%
31)
Permissible deviation -5%
88
21480244/181209
