4.9 Suspension
Standard suspension

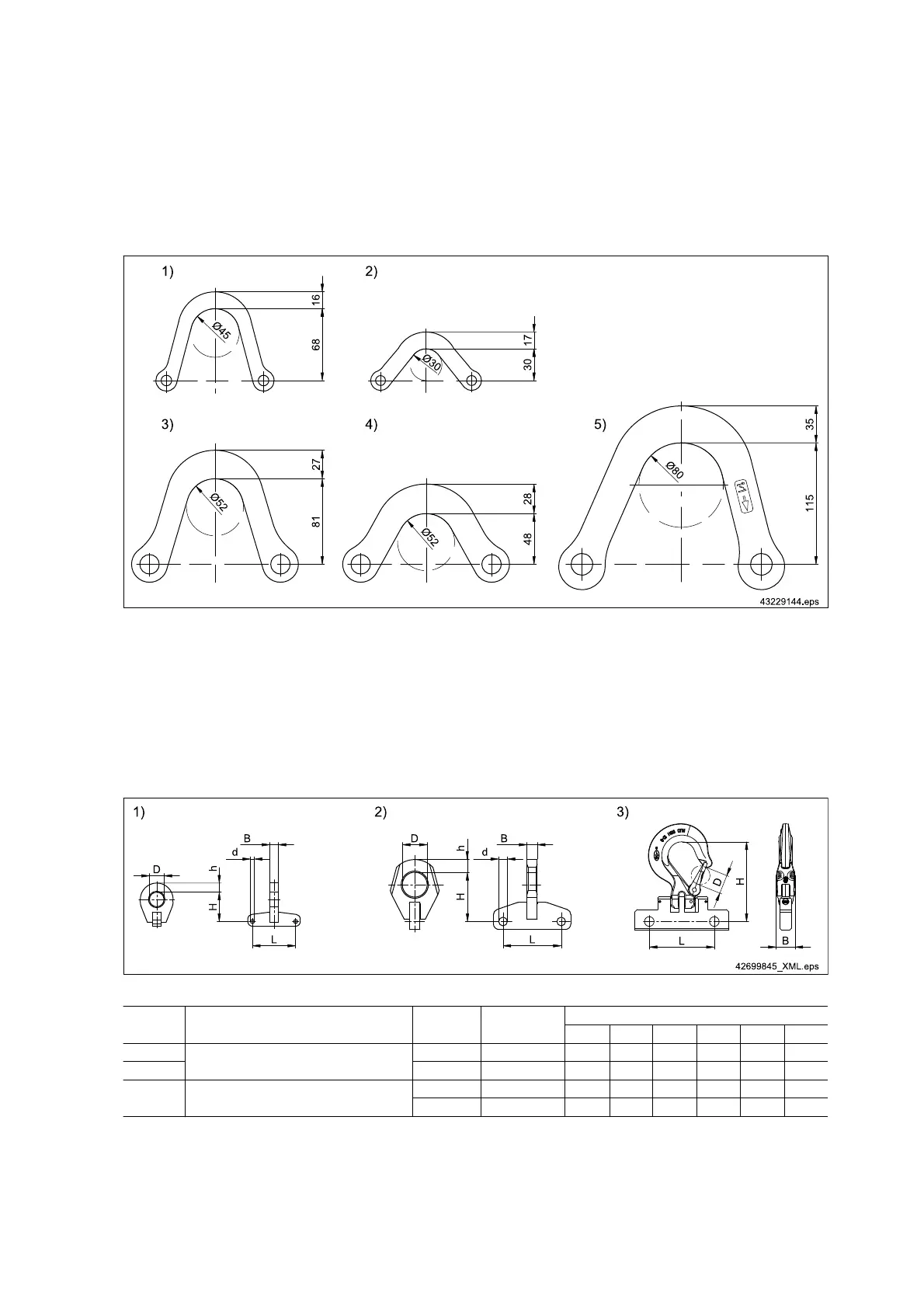

Fig. 14
DC-Com 1-10 chain hoists are supplied with a long suspension bracket as standard. An optional short suspension
bracket can be supplied.
The suspension bracket facilitates installation, since the chain hoist can be directly suspended from the trolley. It is
not necessary to dismantle existing trolleys.
Chain hoists with short or long suspension brackets can be combined with the trolleys from ⇒ Tab. 23, Page 35.
Optional suspension
Fig. 15
Item
Designation Size Part no.: Dimensions [mm]
L B H h D d
1
Suspension ring
for suspension parallel to track girder
DC 1-5 718 278 45 92 18 62,5 19,5 31 8,4
2 DC 10 715 278 45 124 22 105 27 53 18,4
3
Suspension hook,
folding
DC 1-5
718 910 45 92 22 104 - 25 -
DC 10 715 910 45 124 36 152 - 36 -
Tab. 22
34
21480244/181209
