Operating MATRIX control panel MATRIX control panel
74 PR-2011-0110-GB • Subject to modifications • R9-03-2016
60%
70%
80%
90%
100%
0%
10%
20%
30%
40%
50%
0% 25% 50% 75% 100%

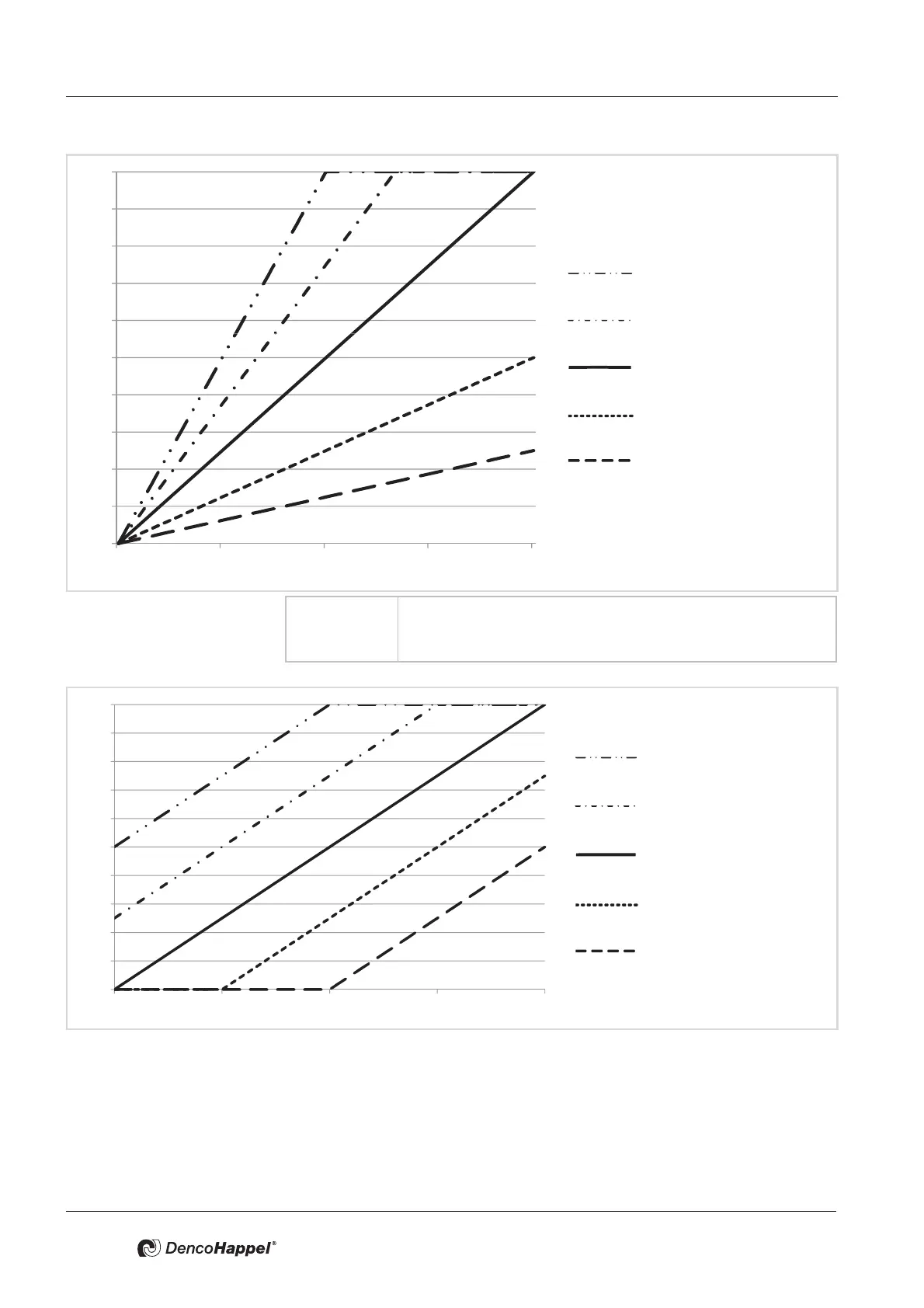

Speed of slave fan
with factor 2
Speed of slave fan
with factor 1.5
Speed
master fan
Speed of slave fan
with factor 0.5
Speed of slave fan
with factor 0.25
Value range: -50% to 50%
Adjustable steps: 1%
Factory setting: 0%
60%
70%
80%
90%
100%
0%
10%
20%
30%
40%
50%
60%
0 25% 50% 75% 100%
Speed of slave fan
with offset 50%
Speed of slave fan
with offset 25%
Speed
master fan
Speed of slave fan
with offset –25%
Speed of slave fan
with offset –50%
