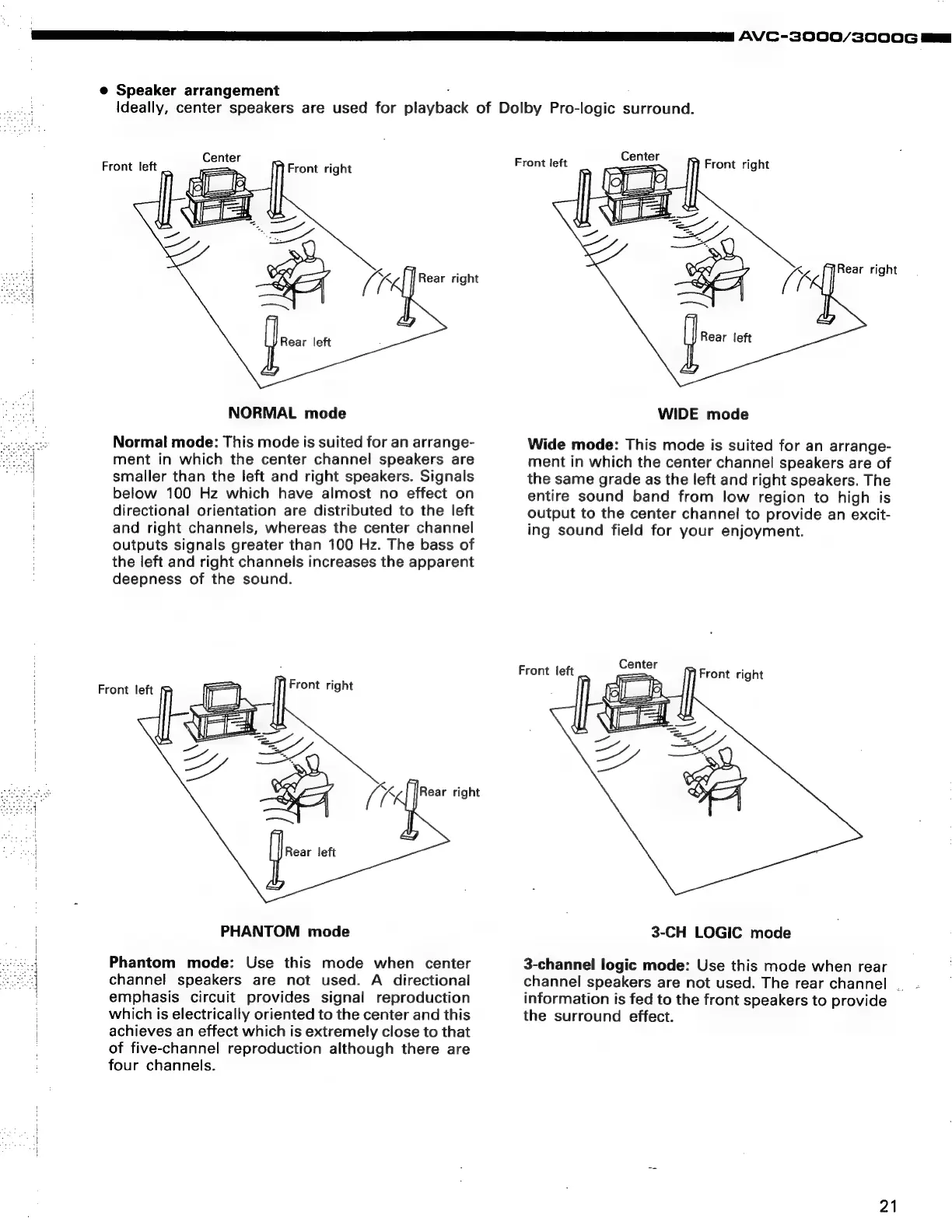

@ Speaker arrangement
Ideally, center speakers are used for sinybadk of Dolby Pro-logic surround.
Front left Front left
Rear left
NORMAL mode
Normal mode: This mode is suited for an arrange-
ment in which the center channel speakers are
smaller than the left and right speakers. Signals
below 100 Hz which have almost no effect on
directional orientation are distributed to the left
and right channels, whereas the center channel
Rear left
WIDE mode
Wide mode: This mode is suited for an arrange-
ment in which the center channel speakers are of
the same grade as the left and right speakers. The
entire sound band from low region to high is
output to the center channel to provide an excit-
ing sound field for your enjoyment.
outputs signals greater than 100 Hz. The bass of
the left and right channels increases the apparent
deepness of the sound.
Center
Front left
Front left
Rear right
Rear left
PHANTOM mode 3-CH LOGIC mode
3-channel logic mode: Use this mode when rear
channel
speakers
are
not
used.
The
rear
channel
_
-
information is fed to the front speakers to provide
the surround effect.
Phantom mode: Use this mode when center
channel speakers are not used. A directional
emphasis circuit provides signal reproduction
which is electrically oriented to the center and this
achieves an effect which is extremely close to that
of five-channel reproduction although there are
four channels.
