Ee ey AVC-3000/3000G a,

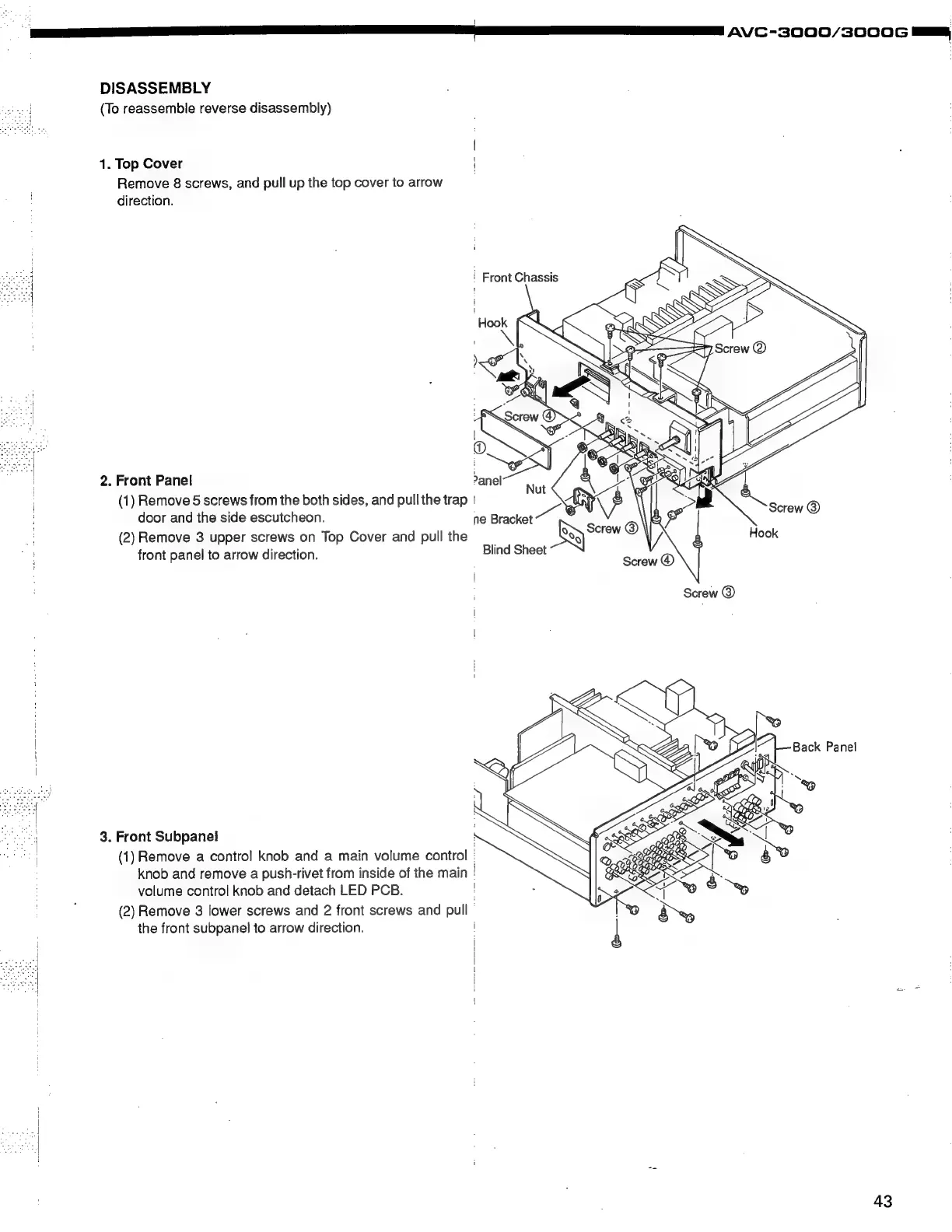

DISASSEMBLY
(To reassemble reverse disassembly)
1. Top Cover
Remove 8 screws, and pull up the top cover to arrow
direction.
2. Front Panel
(1) Remove 5 screws from the both sides, and pull the trap |
door and the side escutcheon. ne Bracket we S @®
(2) Remove 3 upper screws on Top Cover and pull the __ ee
front panel to arrow direction. Bling sleet ®
Screw
Screw @
Back Panel
w®
3. Front Subpanel :
(1) Remove a control knob and a main volume control -
knob and remove a push-rivet from inside of the main |
volume control knob and detach LED PCB.
(2) Remove 3 lower screws and 2 front screws and pull
the front subpane! to arrow direction.
i
|
|
|
|
!
43
