Denon AVR-1000 User Manual

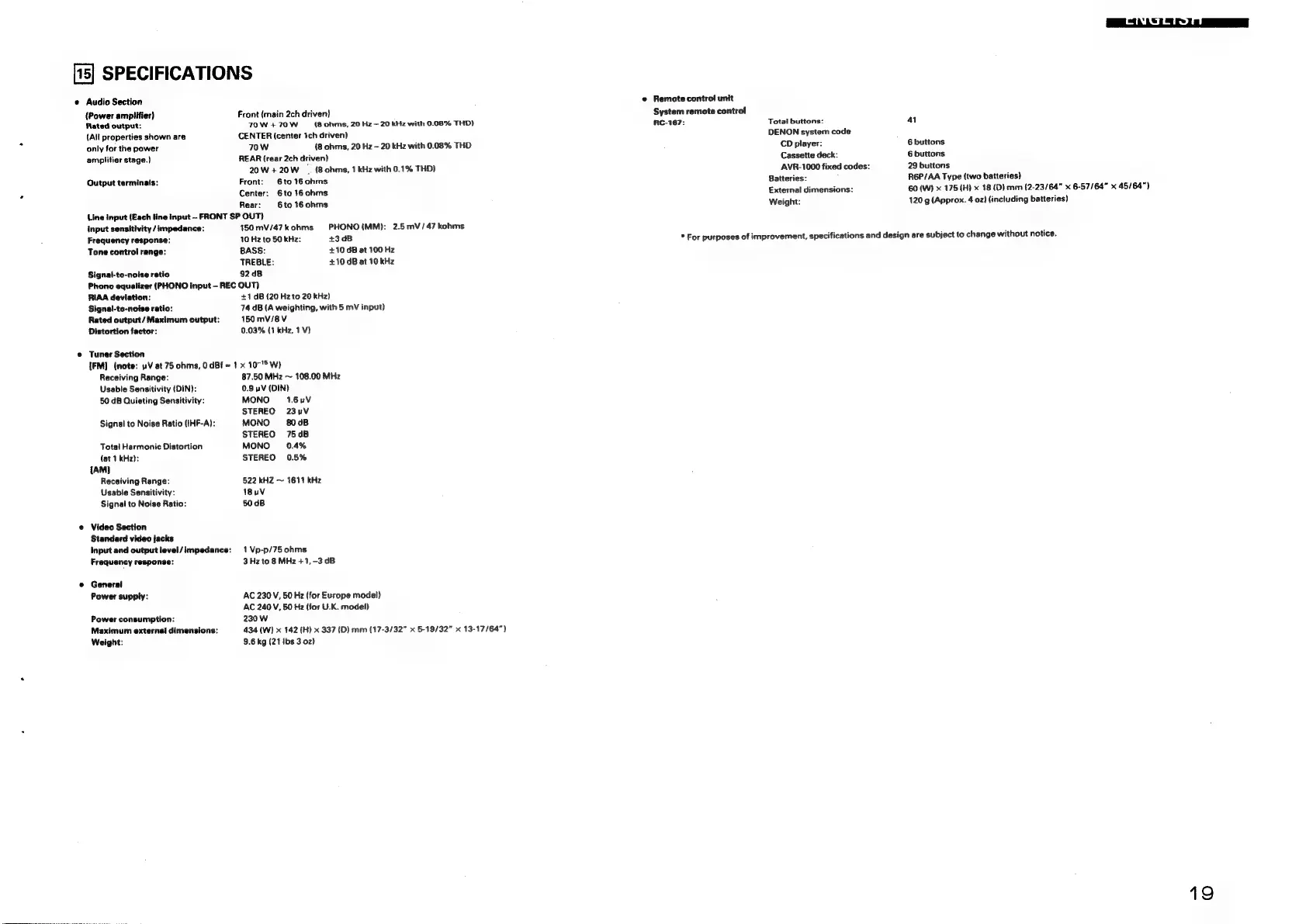

[15] SPECIFICATIONS
Audio Section
(Power amplifier)
Rated output:
(All properties shown are
only for the power
amplifier stage.)
Output terminals:
Front (main 2ch driven}
JOW + 70W (8 ohms, 20 Hz — 20 kHz with 0.08% THD)
CENTER (center 1ch driven)
7OW (8 ohms, 20 Hz ~ 20 kHz with 0.08% THD
REAR (rear 2ch driven)
20W+20W = (Bohms, 1 kHz with 0.1% THD)
Front: 6 to 16 ohms
Center: 6to 16 ohms
Rear: 6 to 16 ohms
Line input (Each line input -- FRONT SP OUT}
input sensitivity /impedance:
Frequency response:
Tone control range:
Signal-to-noise ratio
150 mV/47 kohms PHONO(MM): 2.5 mV/47 kohms
10 Hz to 50 kHz: +3dB
BASS: +10 dB at 100 Hz
TREBLE: +10 dB at 10 kHz
92 dB
Phono equalizer (PHONO input — REC OUT)
RIAA deviation:
Signal-to-noise ratio:
Rated output /Maximum output:
Distortion factor:
Tuner Section
+1 dB (20 Hz to 20 kHz)
74 dB (A weighting, with 5 mV input}
150 mV/8V
0.03% (1 kHz, 1 V}
[FM] (note: pV at 75 ohms, 0 dBf = 1 x 10'S W)
Receiving Range:
Usable Sensitivity (DIN):
50 dB Quieting Sensitivity:
Signal to Noise Ratio (IHF-A):
Total Harmonic Distortion
(at 1 kHz}:
TAM}
Receiving Range:
Usable Sensitivity:
Signal to Noise Ratio:
Video Section
Standard video jacks
Input and output level /impedance:
Frequency response:
General
Power supply:
Power consumption:
Maximum external dimensions:
Weight:
87.50 MHz ~ 108.00 MHz
0.9 pV (DIN)
MONO) 1.6uV
STEREO 23uV
MONO 80dB
STEREO 75dB
MONO 0.4%
STEREO 0.5%
522 KHZ ~ 1611 kHz
18 uv
50 dB
1Vp-p/75 ohms
3 Hz to 8 MHz +1, -3 dB
AC 230 V, 50 Hz (for Europe model)
AC 240 V, 50 Hz (for U.K. model)
230 W
434 (W) x 142 (H) x 337 (D) mm (17-3/32” x 5-19/32" x 13-17/64")
9.6 kg (21 Ibs 3 02)
e Remote control unit
System remote control
RC-167: Total buttons:
DENON system code
CD player:
Cassette deck:
AVR-1000 fixed codes:
Batteries:
External dimensions:
Weight:
41
6 buttons
6 buttons
29 buttons
REP/AA Type (two batteries)
60 (W) x 175 (H) x 18 (D) mm (2-23/64" x 6-57/64" x 45/64”)
120 g (Approx. 4 02) (including batteries)
*
For
purposes
of
improvement,
specifications
and
design
are
subject
to
change
without
notice.
