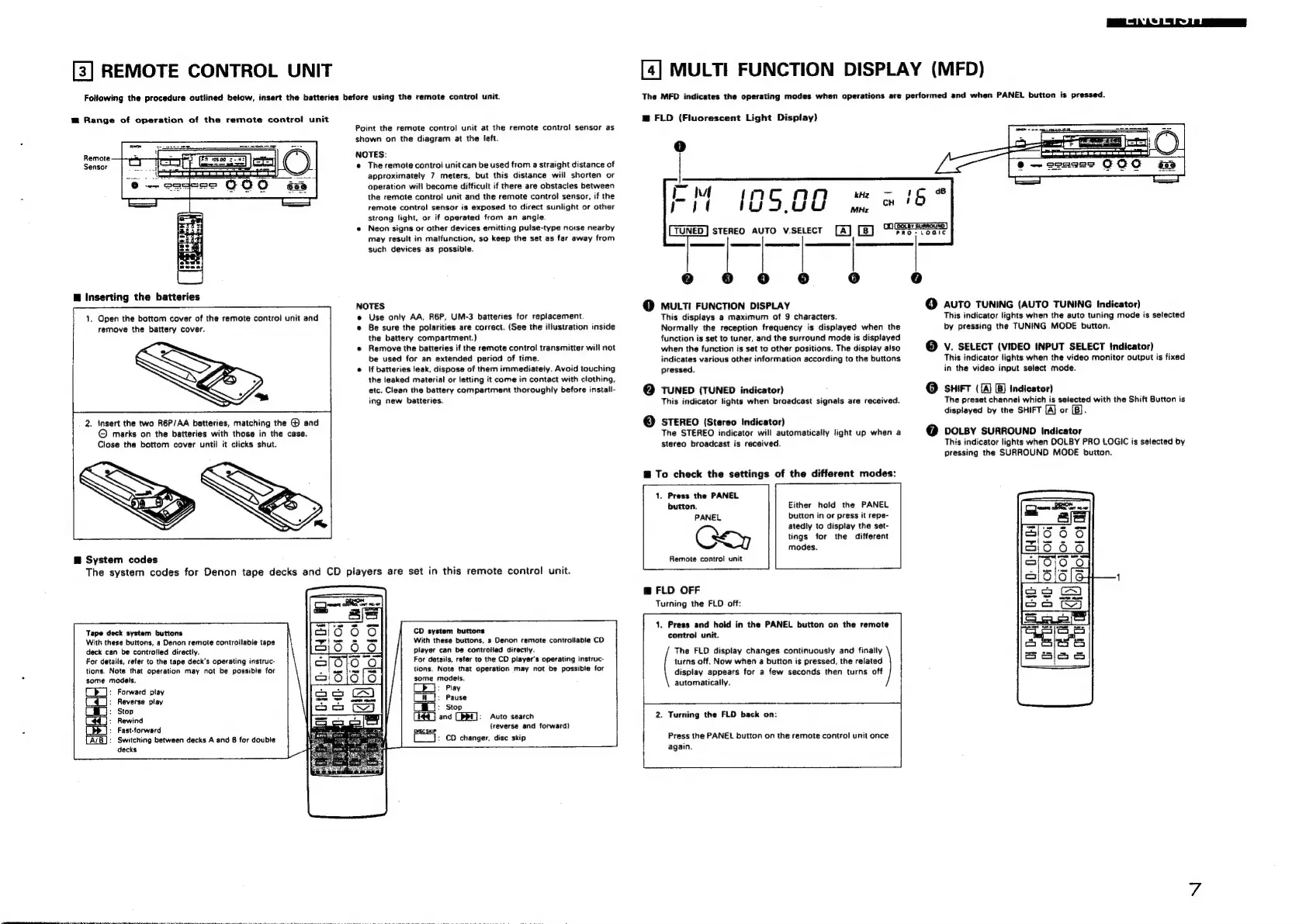

[3] REMOTE CONTROL UNIT
Following the procedure outlined below, insert the batteries before using the remote control unit.
m Range of operation of the remote contro! unit
Point the remote contro! unit at the remote control sensor as
shown on the diagram at the left.
NOTES:
@ The remote controi unit can be used from a straight distance of
approximately 7 meters, but this distance will shorten or
operation will become difficult if there are obstacies between
the remote control unit and the remote control sensor, if the
remote control sensor is exposed to direct sunlight or other
strong fight, or if operated from an angle.
« Neon signs or other devices emitting pulse-type noise nearby
may result in malfunction, so keep the set as far away from
such devices as possible.
Remote
Sensor
@ Inserting the batteries
NOTES
SSS ee
[4] MULTI FUNCTION DISPLAY (MFD)
The MFD indicates the operating modes when operations are performed and when PANEL button is pressed.
@ FLD (Fluorescent Light Display}
rM (05.0G we ais
Reenter]
STEREO AUTO V.sELECT [A] [B] “SESSe
a |
@ MULTI FUNCTION DISPLAY @ AUTO TUNING (AUTO TUNING Indicator)
1. Open the bottom cover of the remote control unit and
remove the battery cover.
2. insert the two R6P/AA batteries, matching the @ and
© marks on the batteries with those in the case.
Close the bottom cover until it clicks shut.
B® System codes
The system codes for Denon tape decks and CD players are set in this remote control unit.
Tape deck system buttons
With these buttons, a Denon remote controllable tape
deck can be controtled directly.
For details, refer to the tape deck’s operating instruc-
tions. Note that operation may not be possible for
some models.
: Forward play
: Reverse play
: Stop
: Rewind
: Fast-forward
: Switching between decks A and 8 for double
decks
Use only AA, R6P, UM-3 batteries for replacement
Be sure the polarities are correct. (See the iliustration inside
the battery compartment.)
Remove the batteries if the remote control transmitter will not
be used for an extended period of time.
\f batteries leak, dispose of them immediately. Avoid touching
the leaked material or letting it come in contact with clothing,
etc, Clean the battery compartment thoroughly before install-
ing new batteries.
CD system buttons
With these buttons, a Denon remote controllable CD
player can be controlled directly.
For details, refer to the CD player's operating instruc-
tions. Note that operation may not be possible for
some models.
Ce: Play
Lit_]}: Pause
LE]: stop
(ig@] and [ppt]: Auto search
= {reverse and forward)
ea CD changer, disc skip
@ FLD OFF
This displays a maximum of 9 characters.
Normally the reception frequency is displayed when the
function is set to tuner, and the surround mode is displayed
when the function is set to other positions. The display also
indicates various other information according to the buttons
pressed.
TUNED (TUNED indicator)
This indicator lights when broadcast signals are received.
STEREO (Stereo Indicator)
The STEREO indicator will automatically light up when a
stereo broadcast is received.
@ To check the settings of the different modes:
1. Press the PANEL
button.
Either hold the PANEL
PANEL button in or press it repe-
atedly to display the set-
tings for the different
modes.
Cy
Remote control unit
Turning the FLD off:
1. Press and hold in the PANEL button on the remote
control unit.
The FLD display changes continuously and finally
turns off. Now when a button is pressed, the related
display appears for a few seconds then turns off
automatically.
2. Turning the FLO back on:
Press the PANEL button on the remote control unit once
again.
This indicator lights when the auto tuning mode is selected
by pressing the TUNING MODE button.
V. SELECT (VIDEO INPUT SELECT Indicator)
This indicator lights when the video monitor output is fixed
in the video input select mode.
SHIFT { [A] [B] Indicator)
The preset channel which is selected with the Shift Button is
displayed by the SHIFT [A] or (B}.
DOLBY SURROUND Indicator
This indicator lights when DOLBY PRO LOGIC is selected by
pressing the SURROUND MODE button.
ao
a
forval
eo
oe)
Ke)
316{6(G4
5
oS
