Important information
•Make connections as follows before using this unit. Select an appropriate connection type
according to the components to be connected.
•You may need to make some settings on this unit depending on the connection method. Refer to
each description for more information.
•Select the cables (sold separately) according to the components being connected.
NOTE
•Do not plug in the power cord until all connections have been completed.
•When making connections, also refer to the operating instructions of the other components being
connected.
•Be sure to connect the left and right channels properly (left with left, right with right).
•Do not bundle power cords together with connection cables. Doing so can result in noise.

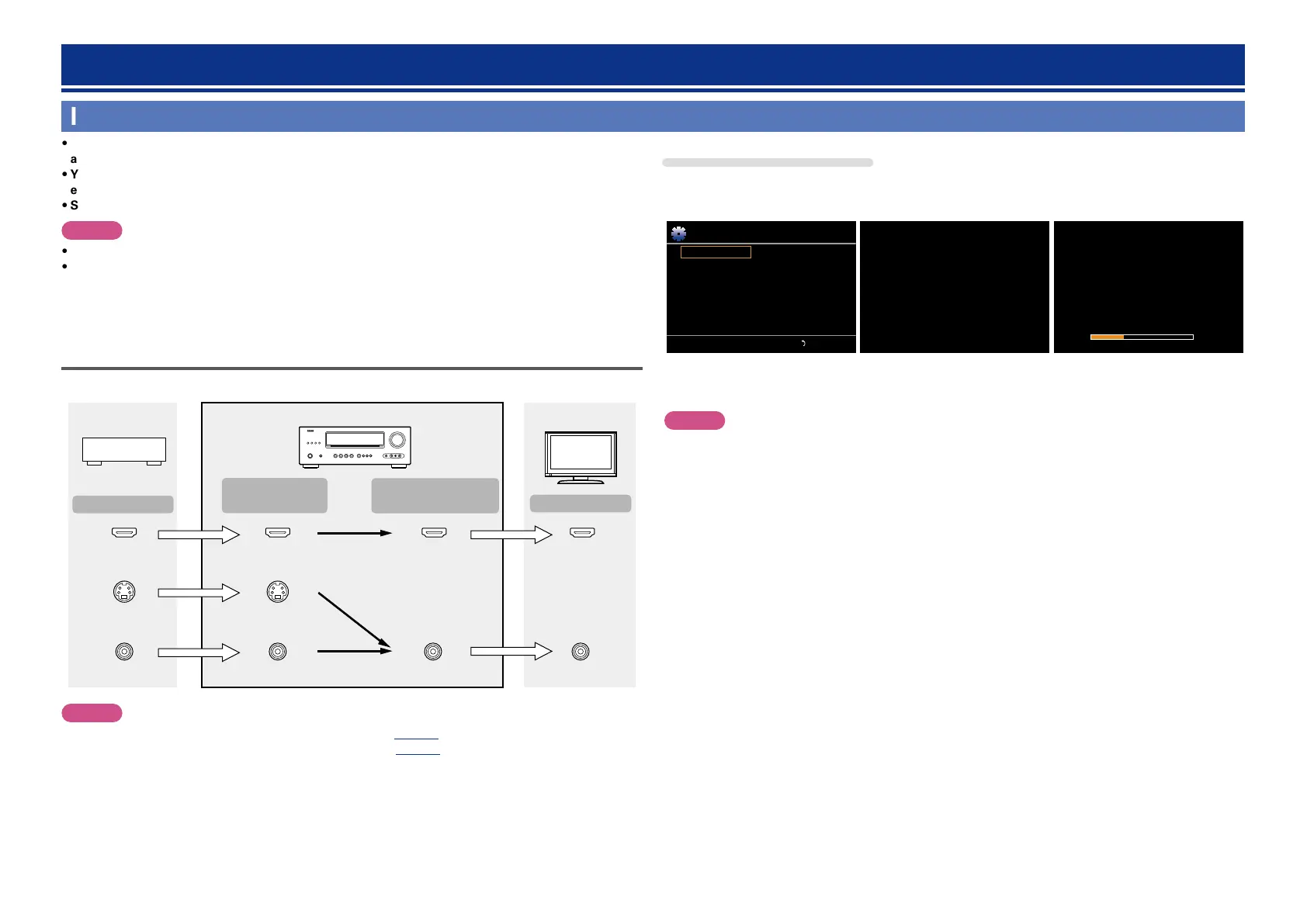

Relationship between video signals and monitor output
GFlow of video signalsH
HDMI connector
S-Video connector
Video connector
Monitor (TV)
HDMI connector
S-Video
connector
Video connector
HDMI connector
Video connector
HDMI connector
Video connector
Video device
This unit
Output
Input
(IN)
Output
(MONITOR OUT)
Input
NOTE
•HDMI signals cannot be converted into analog signals (vpage52).
•Analog signals cannot be converted into HDMI signals (vpage52).
Examples of screen display
•Menu screen •Status display screen
When the input source is
switched
When the volume is adjusted
Speaker Setup
Input Setup
Option Setup
Speaker Config.
Bass Setting
Distance
Channel Level
Crossover Freq.
[ ][ENTER] Enter Return
MENU
SOURCE : BDDDDDDDDDVIDEO:SOURCE
MODE : STEREO
[HDMI]
Master Volume -59.0dB
Status display: The operating status appears briefly on the screen
when the input source is switched or the volume is
changed.
NOTE
•If you operate the menu while playing back 3D video content or computer’s resolution (e.g. VGA), the
playback video is replaced by the menu screen. The playback video is not displayed behind the menu
screen.
•This unit does not show the status display while playing back 3D video content or computer’s resolution
(e.g. VGA).
•The menu screen and status display are displayed when this unit and a TV are connected by HDMI.
Connections
Basic version
Advanced version
Information
Basic version
