Denon AVR-1312 - Speaker Installation;Connection (Advanced Connection); Install

23
Here we describe the installation, connection and
setup methods for speakers other than 5.1-channel
speakers. For the installation, connection and setup
methods for 5.1-channel speakers, see C page 2
“Connecting the speakers”.
Procedure for speaker settings
Install
Connect (vpage24)
Install

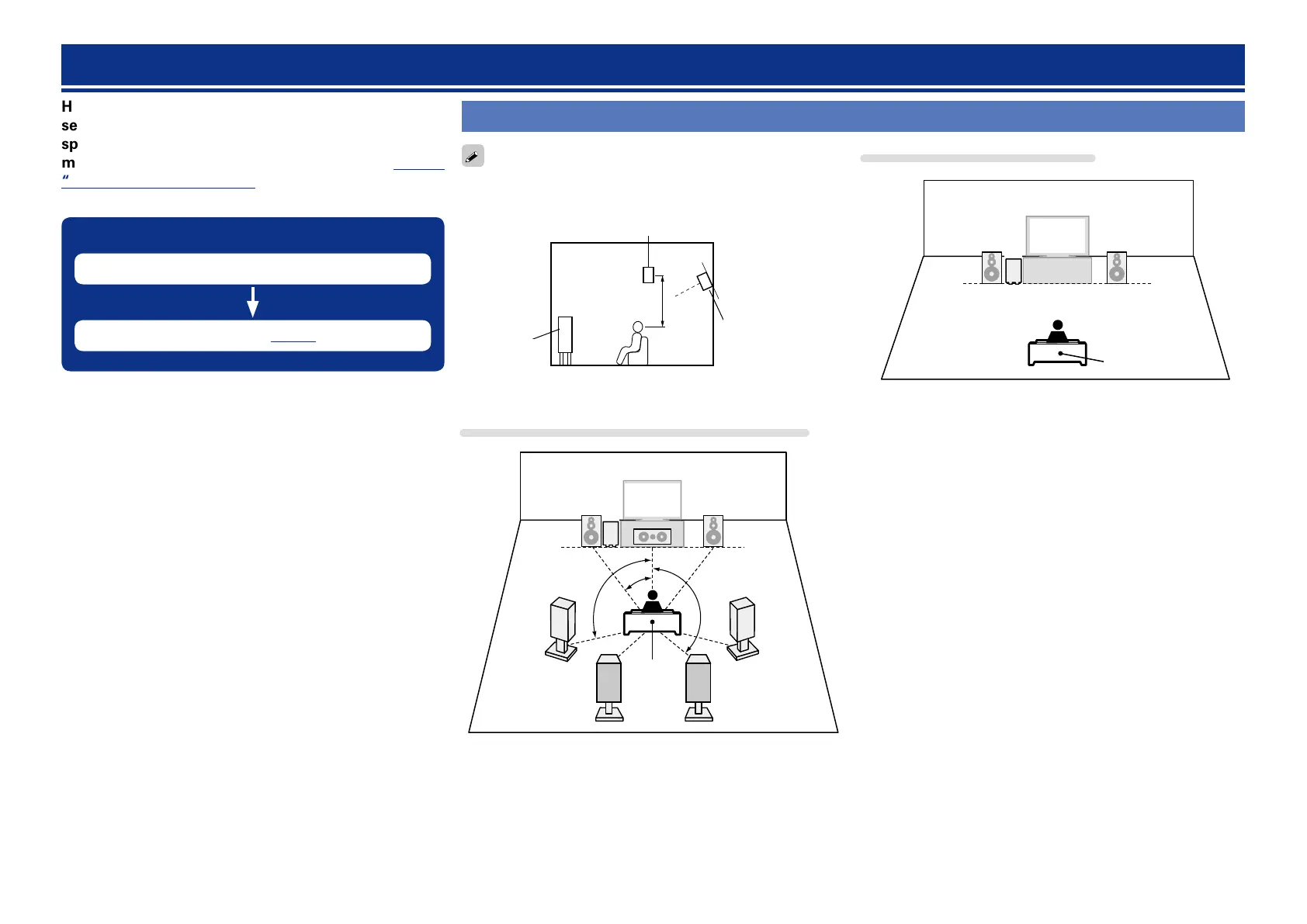

Install the surround back speakers in a position 2 to 3 ft (60 to 90 cm)
higher than ear level.
Surround
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
Surround back
speaker
•Point slightly
downwards
Front
speaker
When 7.1ch (Surround back speaker) installed
FL FR
C
SBL SBR
SL
SR
SW
z1
z2
z3
Listening
position
z1 22˚ – 30˚ z2 90˚ – 110˚ z3 135˚ – 150˚
When 2.1ch speakers installed
FR
SW
FL
Listening position
GSpeaker abbreviationsH
FL Front speaker (L) SB Surround back speaker
FR Front speaker (R) SBL Surround back speaker (L)
C Center speaker SBR Surround back speaker (R)
SW Subwoofer
SL Surround speaker (L)
SR Surround speaker (R)
Speaker installation/connection (Advanced connection)
Basic version
Advanced version
Information
Advanced version
