Denon AVR-1312 - Part Names and Functions; Front Panel

42

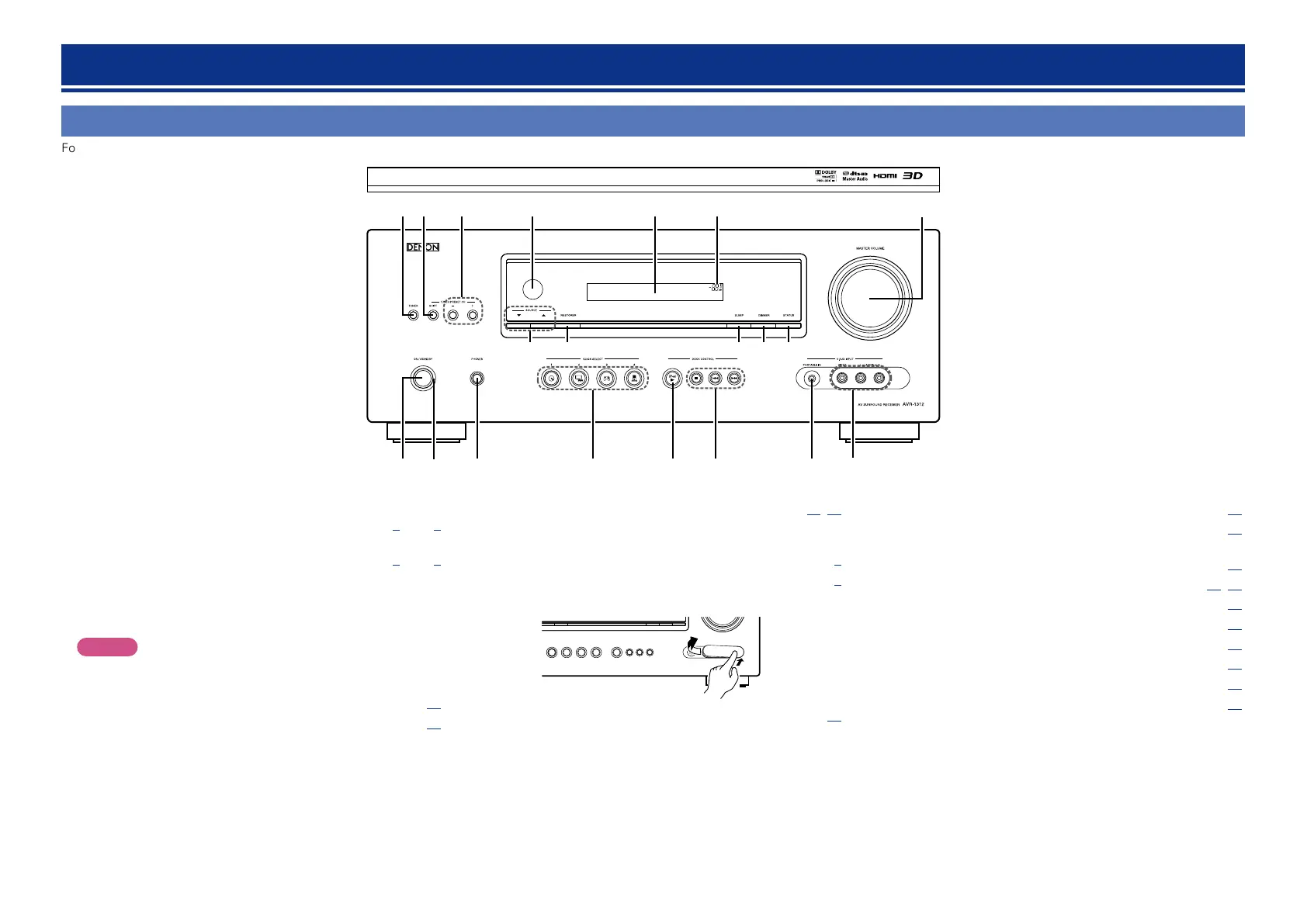

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
Q2Q3Q5 Q4 Q1
Q0 o
i
Q6 Q7 Q9Q8 W0
utr yewq
q Power operation button
(ON/STANDBY) ······················································(C 4, C 8)
Turns power to this unit on and off (standby).
w Power indicator ······················································(C 4, C 8)
e Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no
longer be output from the connected speakers or from the PRE
OUT connectors.
NOTE
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
r QUICK SELECT buttons ·························································· (27)
t iPod play button (iPod 1) ······················································· (16)
Q1 Display ······················································································ (43)
Q2 Remote control sensor ··························································· (46)
Q3 Tuner preset channel buttons
(TUNER PRESET CH +, –) ························································ (18)
Q4 SHIFT button ······································································ (17, 18)
Q5 TUNER button ········································································· (17)
Q6 Input source select buttons (SOURCE df) ··························· (11)
Q7 RESTORER button ··································································· (39)
Q8 SLEEP button ··········································································· (27)
Q9 DIMMER button ······································································· (35)
W0 STATUS button ······································································· (13)
y iPod system buttons ························································· (16, 57)
•Stop button (2)
•Skip buttons (8, 9)
u PORTABLE IN jack ····································································· (9)
i V.AUX INPUT connectors ························································· (8)
Remove the cap covering the connectors when you want to use
them.
o MASTER VOLUME control knob ············································ (11)
Q0 Master volume indicator
Part names and functions
Basic version
Advanced version
InformationInformation
