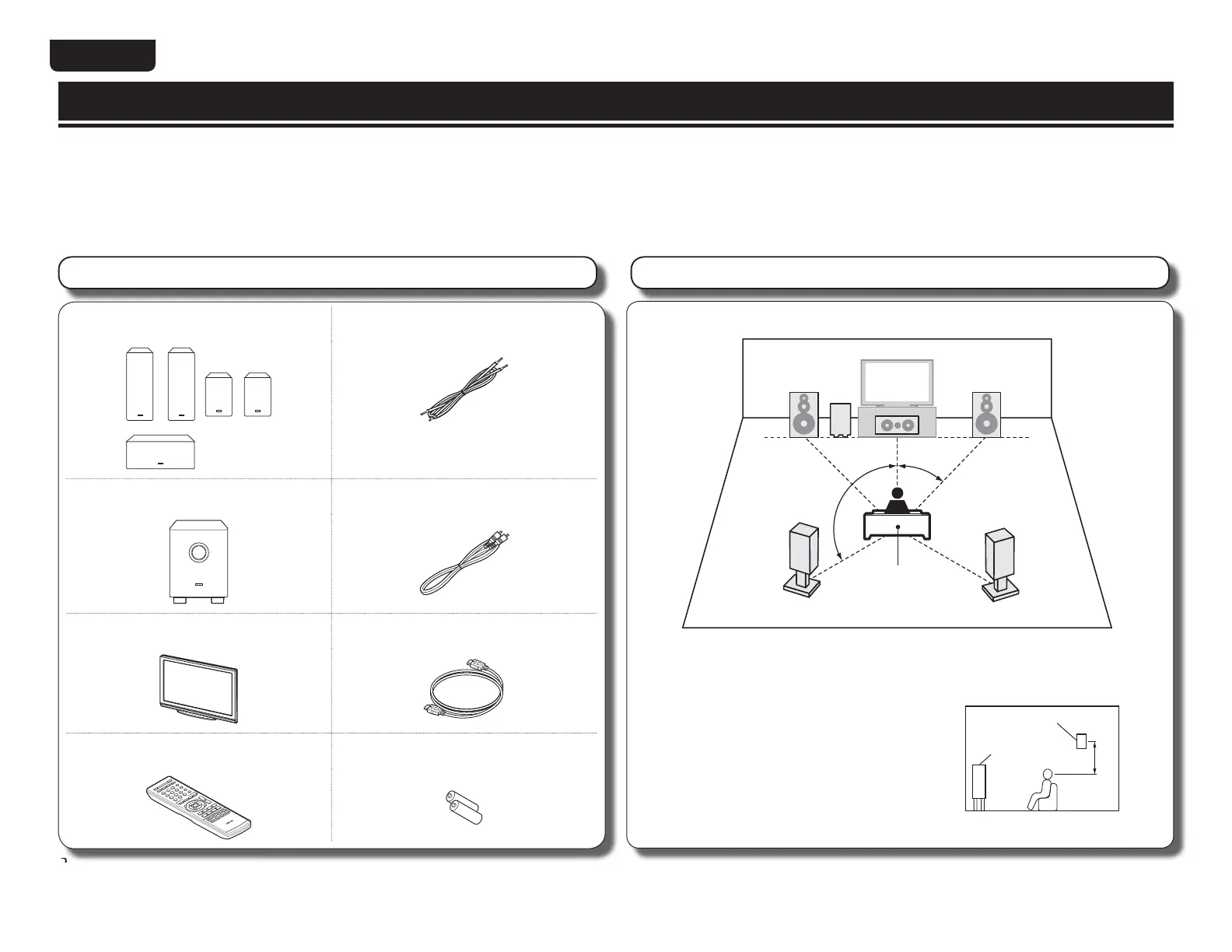

Denon AVR-1312 Getting Started

2
ENGLISH FRANÇAIS ESPAÑOL PORTUGUÊS ESPAÑOL NEDERLANDS SVENSKA
What you need for this step
2
Speaker
(sold separately)
Speaker cable
(sold separately)
FL FR
SL SR
C
• Prepare enough for the number of speakers
you will use.
Subwoofer (with built-in amplifi er)
(sold separately)
Audio cable
(sold separately)
TV
(sold separately)
HDMI cable
(sold separately)
Remote control unit
(supplied)
R03/AAA batteries
(supplied)
This unit can perform 2.0/2.1 to 7.1-channel surround playback.
Here, we explain the installation and connection procedure when using 5.1-channel speakers.
For the installation procedure when using other than 5.1-channel, see vm page 23 “Speaker installation/connection (Advanced connection)”.
n Do not plug the power plug of the main unit into the wall socket until these preparations are complete.
n For operation of the connected devices, refer to the user manuals for each device.
Install
n When 5.1-channel installed
FL FR
SW
C
SL
SR
z1
z2
Listening position
z1 22˚ – 30˚ z2 120˚
FL Front speaker (L) • Install the surround speakers in a position 2 to 3
ft (60 to 90 cm) higher than ear level.
Front
speaker
Surround
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
FR Front speaker (R)
C Center speaker
SW Subwoofer
SL Surround speaker (L)
SR Surround speaker (R)
Connecting the speakers
