Denon AVR-1404 Operating Instructions

ENGLISH

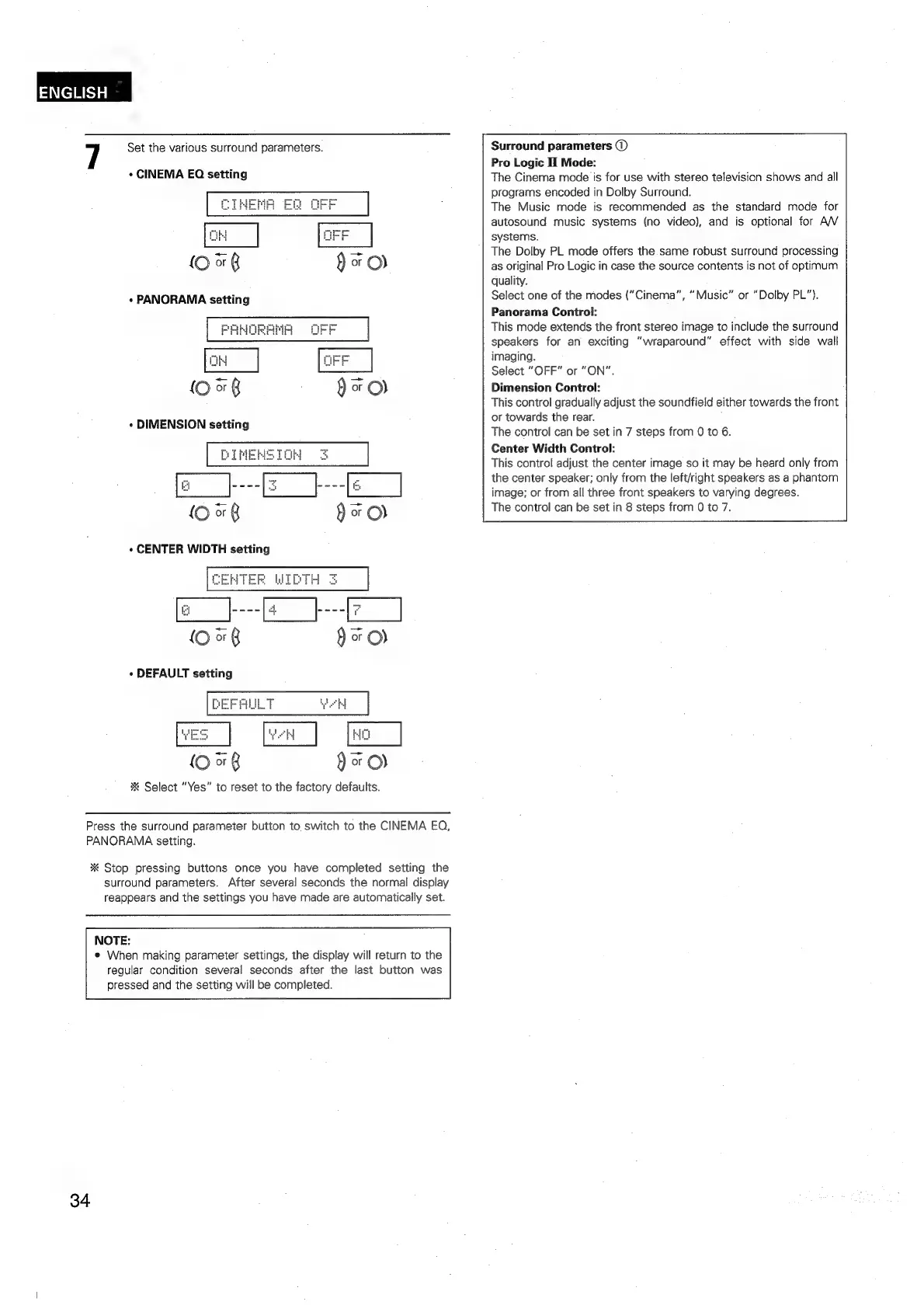

7 Set the various surround parameters.
+ CINEMA EQ setting
(Oo 8 jaro
+ CENTER WIDTH setting
(O7xG JO)
+ DEFAULT setting
§)
or
O)
(2
+8
% Select “Yes” to reset to the factory defaults.
Press the surround parameter button to switch to the CINEMA EQ,
PANORAMA setting.
* Stop pressing buttons once you have completed setting the
surround parameters. After several seconds the normal display
reappears and the settings you have made are automatically set.
NOTE:
e When making parameter settings, the display will return to the
regular condition several seconds after the last button was
pressed and the setting will be completed.
34
Surround parameters @
Pro Logic Ii Mode:
The Cinema mode is for use with stereo television shows and all
programs encoded in Dolby Surround.
The Music mode is recommended as the standard mode for
autosound music systems (no video), and is optional for A/V
systems.
The Dolby PL mode offers the same robust surround processing
as original Pro Logic in case the source contents is not of optimum
quality.
Select one of the modes (“Cinema”, “Music” or “Dolby PL”).
Panorama Control:
This mode extends the front stereo image to include the surround
speakers for an exciting “wraparound” effect with side wall
imaging.
Select “OFF” or “ON".
Dimension Control:
This control gradually adjust the soundfield either towards the front
or towards the rear.
The control can be set in 7 steps from 0 to 6.
Center Width Control:
This control adjust the center image so it may be heard only from
the center speaker; only from the left/right speakers as a phantom
image; or from all three front speakers to varying degrees.
The control can be set in 8 steps from 0 to 7.
