Denon AVR-1705 Operating Instructions

24
ENGLISH

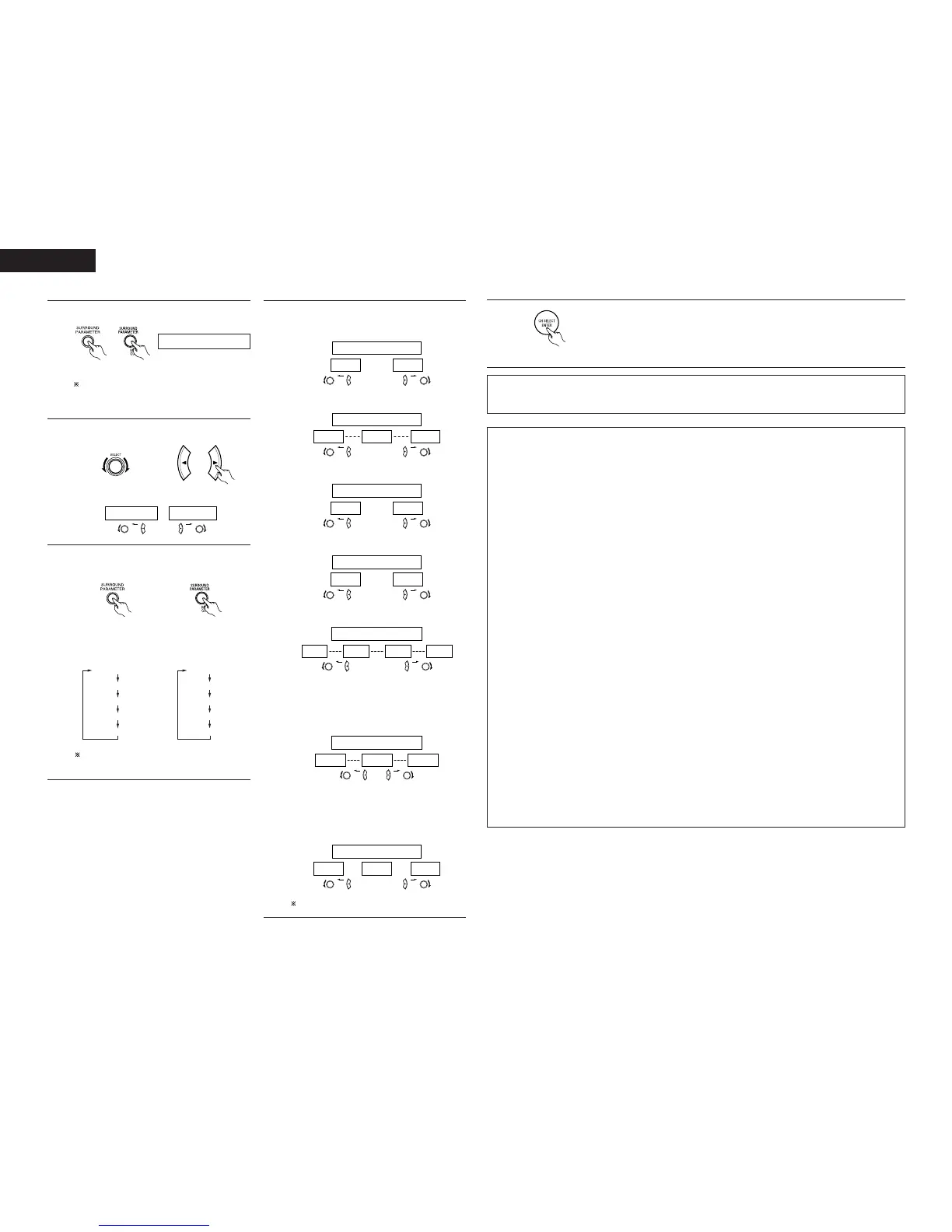

Surround parameters q
Pro Logic
IIx and Pro Logic II Mode:
• The Cinema mode is for use with stereo television shows and all programs encoded in Dolby Surround.
• The Music mode is recommended as the standard mode for auto sound music systems (no video), and is
optional for A/V systems.
• The Pro Logic mode offers the same robust surround processing as original Pro Logic in case the source
contents is not of optimum quality.
• The Game mode for playing games. The game mode can only be used with 2-channel audio sources.
Select one of the modes (“Cinema”, “Music”, “Pro Logic”or “Game”).
Panorama Control:
This mode extends the front stereo image to include the surround speakers for an exciting “wraparound”
effect with side wall imaging.
Select “OFF” or “ON”.
Dimension Control:
This control gradually adjust the soundfield either towards the front or towards the rear.
The control can be set in 7 steps from 0 to 6.
Center Width Control:
This control adjust the center image so it may be heard only from the center speaker; only from the left/right
speakers as a phantom image; or from all three front speakers to varying degrees.
The control can be set in 8 steps from 0 to 7.
DTS NEO:6 Mode:
• Cinema
This mode is optimum for playing movies. Decoding is performed with emphasis on separation
performance to achieve the same atmosphere with 2-channel sources as with 6.1-channel sources.
This mode is effective for playing sources recorded in conventional surround formats as well, because the
in-phase component is assigned mainly to the center channel (C) and the reversed phase component to the
surround (SL, SR and SB channels).
• Music
This mode is suited mainly for playing music. The front channel (FL and FR) signals bypass the decoder
and are played directly so there is no loss of sound quality, and the effect of the surround signals output
from the center (C) and surround (SL, SR and SB) channels add a natural sense of expansion to the sound
field.
CENTER IMAGE (0.0 to 1.0: default 0.3):
The center image parameter for adjusting the expansion of the center channel in the DTS NEO:6 MUSIC
mode has been added.
4
Select the surround parameter mode.
MODE cinema
Display
(Main unit) (Remote control unit)
To perform this operation from the remote
control unit, check that the mode selector
switch is set to “AUDIO”.
5
Select the optimum mode for the source.
(Main unit) (Remote control unit)
MODE musicMODE cinema
or or
6
Set the surround parameters according to the
mode.
(Main unit) (Remote control unit)
• The mode switches as shown below each
time the button is pressed.
MODE CINEMA
SURROUND BACK
DEFAULT
MODE MUSIC
SURROUND BACK
DEFAULT
CINEMA EQ CENTER IMAGE
TONE DEFEAT TONE DEFEAT
If you do want the bass and trable to be
adjusted, turn off the tone defeat mode.
7
Set the various surround parameters.
• CINEMA EQ setting
ON OFF
or or
CINEMA EQ OFF
• CENTER IMAGE setting
0.0
C.IMAGE 0.3
0.3 1.0
or or
• TONE DEFEAT setting
ON OFF
or or
TONE DEF. ON
• SURROUND BACK SPEAKER setting
ON OFF
or or
SB : ON
• DEFAULT setting
YES Y/N NO
or or
DEFAULT Y/N
Select “Yes” to reset to the factory defaults.
8
Press the ENTER button to finish surround parameter mode.
(Remote control unit)
NOTE:
• When making parameter settings, the display will return to the regular condition several seconds after the
last button was pressed and the setting will be completed.
• D.COMP. setting
OFF
LOW MID HIGH
oror
D.COMP. OFF
NOTE:
• This parameter is displayed during DOLBY
DIGITAL playback.
• LFE setting
-10dB
-5dB 0dB
oror
LFE 0dB
NOTE:
• This parameter is displayed during DOLBY
DIGITAL playback.

Denon AVR-1705 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	6.1 channels
Signal-to-Noise Ratio (SNR)	98 dB
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	75 W
Product color	Black
Audio decoders	DTS, DTS 96/24, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), Dolby Digital, Dolby Digital EX
Digital Signal Processing (DSP)	Yes
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	56
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	230 W
Optical drive included	No
HDMI in	0
Composite video in	4
S-Video inputs quantity	3
Digital audio optical in	1
S-Video outputs quantity	2

Weight and Dimensions

Depth	417 mm
Width	434 mm
Height	147 mm
Weight	10900 g
