Denon AVR-1709 Service Manual

17
AVR-1709/1609/1519/1509/689/589, AVC-1509
9. MAIN P.W.B SUB ASSY
Please refer to "EXPLODED VIEW " for the disassembly method of each P.W.B included in MAIN P.W.B ASSY .
MAINP.W.BASSY の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。

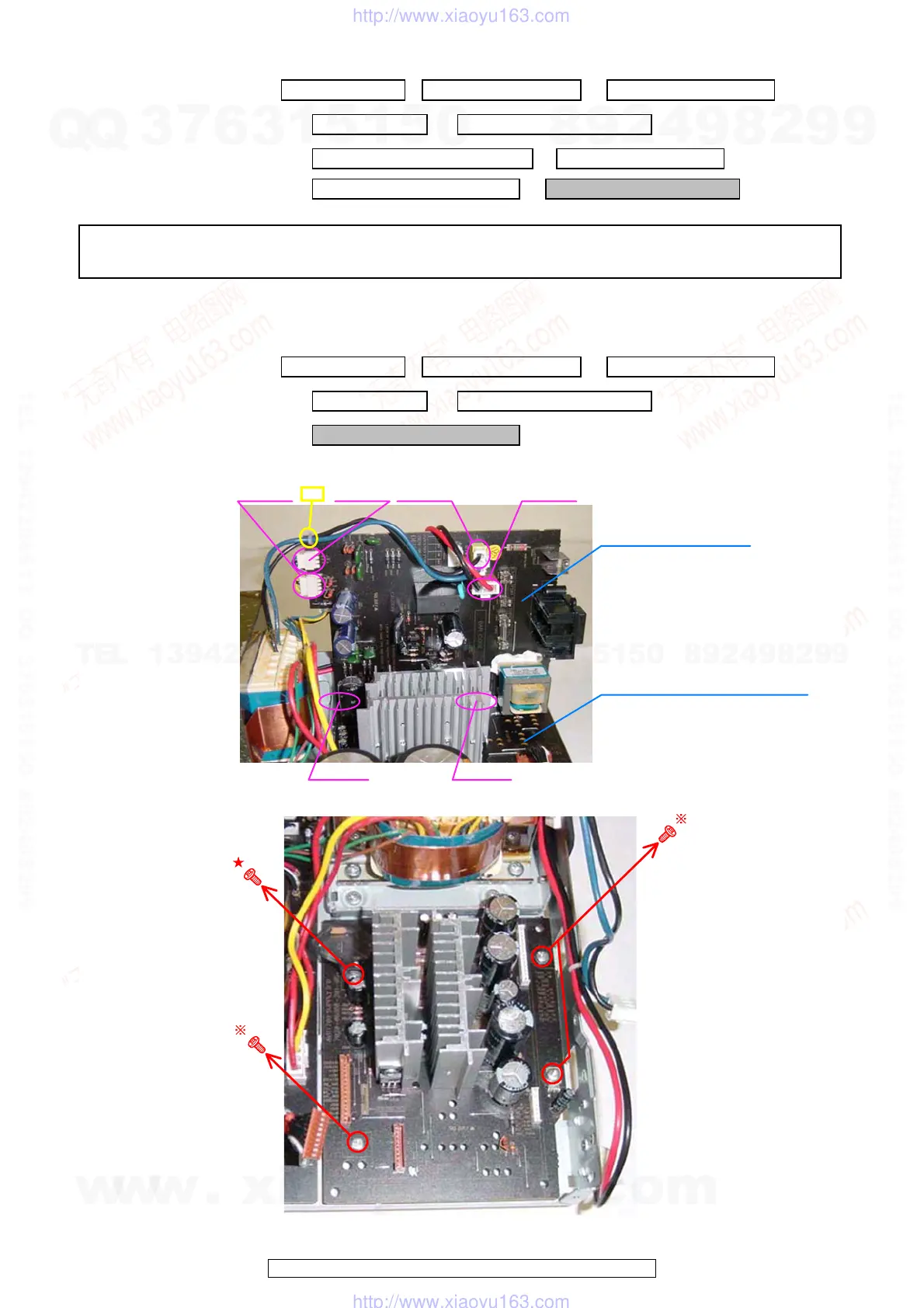

10. POWER P.W.B SUB ASSY
(1) Disconnect the connector wires.（コネクタワイヤーをはずす。）
(2) Remove the screws.（ねじをはずす。）
proceeding (手順): CABINET TOP → HDMI P.W.B ASSY → SIRIUS P.W.B ASSY
→ TUNER PACK → SPEAKER P.W.B ASSY
→ CHASSIS BACK SUB ASSY → VIDEO P.W.B ASSY
→ INPUT / CPU P.W.B ASSY → MAIN P.W.B SUB ASSY
proceeding (手順): CABINET TOP → HDMI P.W.B ASSY → SIRIUS P.W.B ASSY
→ TUNER PACK → SPEAKER P.W.B ASSY
→ POWER P.W.B SUB ASSY
Picture C
cut
CP513CP512 CP501 CP503
CN506 CN505
POWER P.W.B ASSY
POWER SUPPLY P.W.B ASSY
Top view
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Denon AVR-1709 Specifications

General

Number of Channels	7.1
HDMI Inputs	3
HDMI Outputs	1
HDMI Version	1.3a
Component Video Inputs	2
Component Video Outputs	1
Digital Audio Inputs	2 Optical, 2 Coaxial
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Presets	56
HDMI Switching	Yes
Tuner Type	AM/FM
Preset Stations	56
Auto Calibration	Yes (Audyssey MultEQ)
Power Consumption	460 W
Standby Power Consumption	0.3 W
Power Output	80 W per channel (8 ohms, 20 Hz - 20 kHz, THD 0.08%)
HDMI Features	Deep Color, x.v.Color
Dolby Formats	Dolby Digital, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby TrueHD
DTS Formats	DTS, DTS-ES, DTS 96/24, DTS Neo:6, DTS-HD Master Audio
Audio Decoders	Dolby Digital, DTS
Amplifier Output Details	80 watts per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Digital Optical
Remote Control	Yes
Dimensions	434 x 171 x 377 mm
Weight	21.6 lbs (9.8 kg)
