Denon AVR-1709 Service Manual

8
AVR-1709/1609/1519/1509/689/589, AVC-1509
ワイヤー整形図
調整や部品の交換等により、ワイヤー類の結束をはずした
り移動させた場合には、それらの作業が完了した時点でワ
イヤーの整形をおこなってください。正しく整形されてい
ないとノイズ発生の原因となることがあります。
上面からみたワイヤー整形
WIRE ARRANGEMENT
If wire bundles are untied or moved to perform adjustment or
parts replacement etc., be sure to rearrange them neatly as
they were originally bundled or placed afterward.
Otherwise, incorrect arrangement can be a cause of noise
generation.

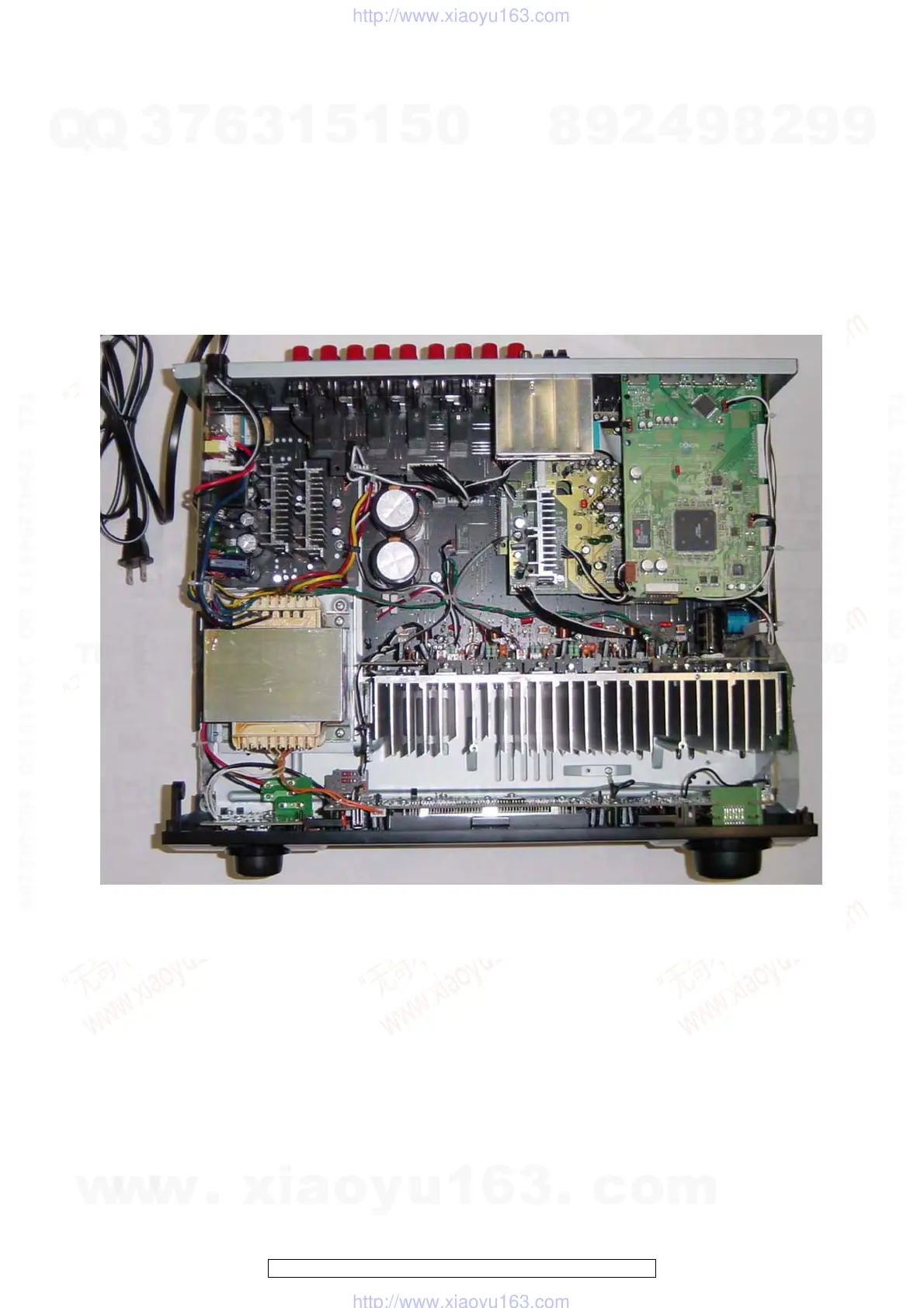

Wire arrangement viewed from the top
Back Panel side
Front Panel side
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Denon AVR-1709 Specifications

General

Number of Channels	7.1
HDMI Inputs	3
HDMI Outputs	1
HDMI Version	1.3a
Component Video Inputs	2
Component Video Outputs	1
Digital Audio Inputs	2 Optical, 2 Coaxial
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Presets	56
HDMI Switching	Yes
Tuner Type	AM/FM
Preset Stations	56
Auto Calibration	Yes (Audyssey MultEQ)
Power Consumption	460 W
Standby Power Consumption	0.3 W
Power Output	80 W per channel (8 ohms, 20 Hz - 20 kHz, THD 0.08%)
HDMI Features	Deep Color, x.v.Color
Dolby Formats	Dolby Digital, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby TrueHD
DTS Formats	DTS, DTS-ES, DTS 96/24, DTS Neo:6, DTS-HD Master Audio
Audio Decoders	Dolby Digital, DTS
Amplifier Output Details	80 watts per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Digital Optical
Remote Control	Yes
Dimensions	434 x 171 x 377 mm
Weight	21.6 lbs (9.8 kg)
