Denon AVR-1910 Service Manual

11
AVR-1910/1620/1610/790/590

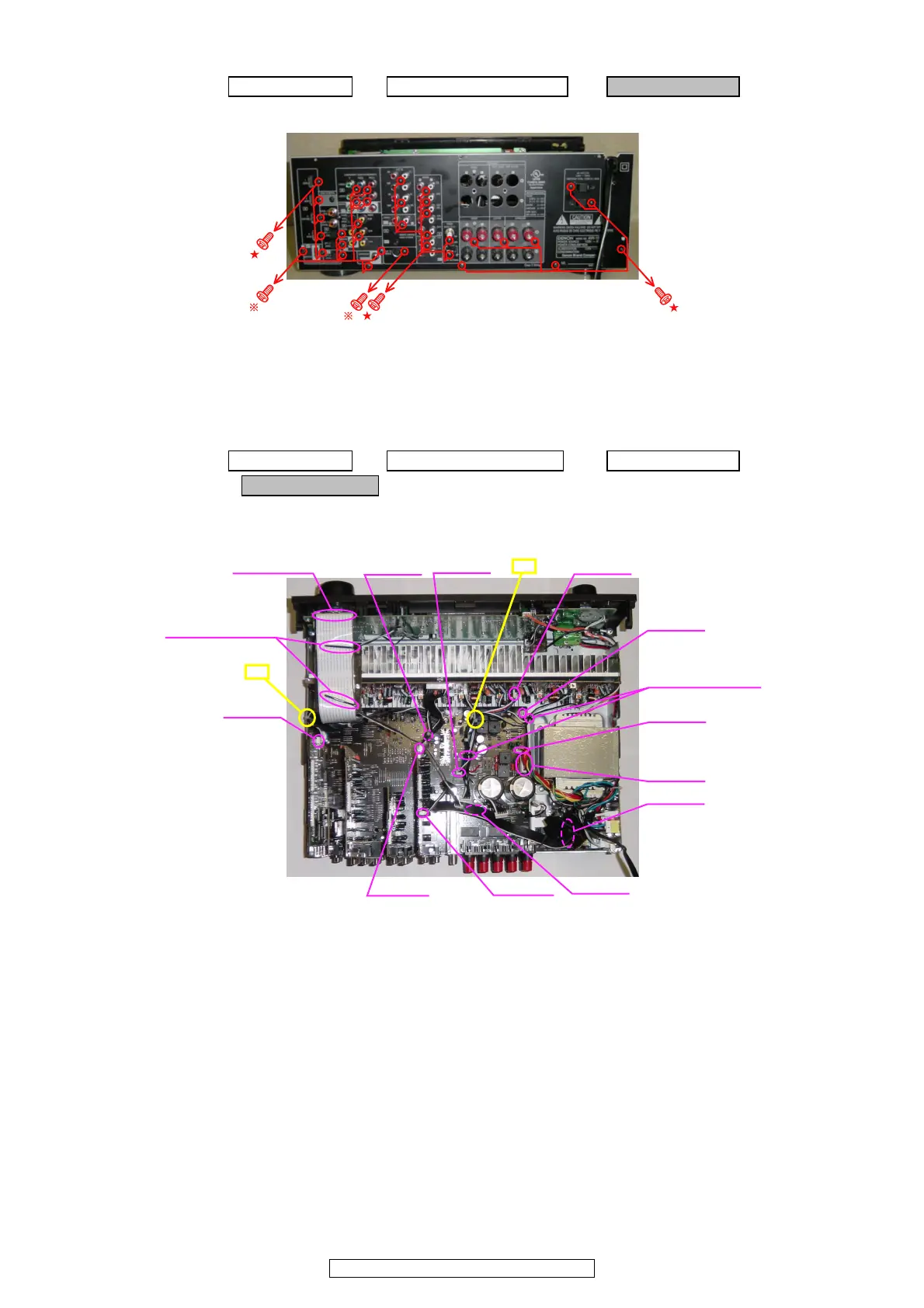

4. CHASSIS BACK
(1) Remove the screws.
5. PCB MAIN ASSY
(1) Cut the wire clamp band, then loose the style pin and Cord holder. Disconnect the connector wire and FFC Cable.
Proceeding : CABINET TOP → PCB SPEAKER ASSY → CHASSIS BACK
Direction of photograph: A
Proceeding : CABINET TOP → PCB SPEAKER ASSY → CHASSIS BACK
→ PCB MAIN ASSY
CP1700
CP1002
CP1004
CP1001
CP1003
Style pin : Loose
CP1001
CP1005
CP1501
CP1200
CP1000
CP1003
FFC Cable
Style pin : Loose
cut
cut

Denon AVR-1910 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	90 W
Equalizer	Yes
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby Pro Logic IIz, Dolby TrueHD
Apple docking compatibility	iPod
Optical drive included	No
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.3 W
HDMI in	4
S-Video inputs quantity	1
Component video (YPbPr/YCbCr) in	2

Weight and Dimensions

Depth	171 mm
Width	434 mm
Height	377 mm
Weight	10700 g
