Denon AVR-1910 Service Manual

54
AVR-1910/1620/1610/790/590

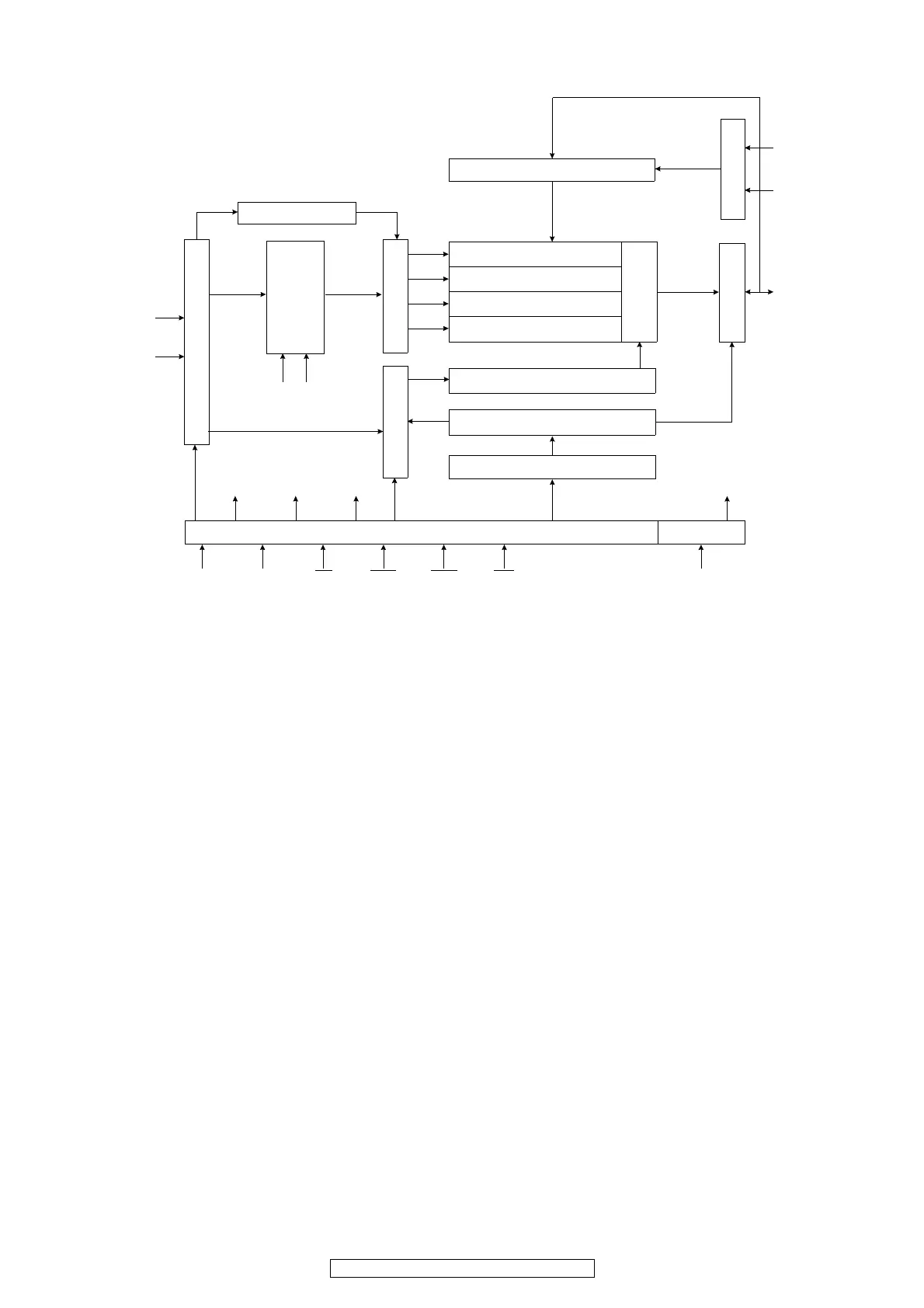

K4S641632K Block Diagram
FUNCTIONAL BLOCK DIAGRAM
Bank Select
Data Input Register
2M x 8 / 1M x 16
2M x 8 / 1M x 16
Sense AMP
Output BufferI/O Control
Column Decoder
Latency & Burst Length
Programming Register
Address Register
Row Buffer
Refresh Counter
Row Decoder Col. Buffer
LRAS LCBR
LCKE
LRAS LCBR LWE LDQM
CLK CKE CS
RAS CAS WE L(U)DQM
LWE
LDQM
DQi
CLK
ADD
LCAS LWCBR
2M x 8 / 1M x 16
2M x 8 / 1M x 16
Timing Register
Samsung Electronics reserves the right to change products or specification without notice.
*

Denon AVR-1910 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	90 W
Equalizer	Yes
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby Pro Logic IIz, Dolby TrueHD
Apple docking compatibility	iPod
Optical drive included	No
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.3 W
HDMI in	4
S-Video inputs quantity	1
Component video (YPbPr/YCbCr) in	2

Weight and Dimensions

Depth	171 mm
Width	434 mm
Height	377 mm
Weight	10700 g
