Denon AVR-1910 Service Manual

9
AVR-1910/1620/1610/790/590

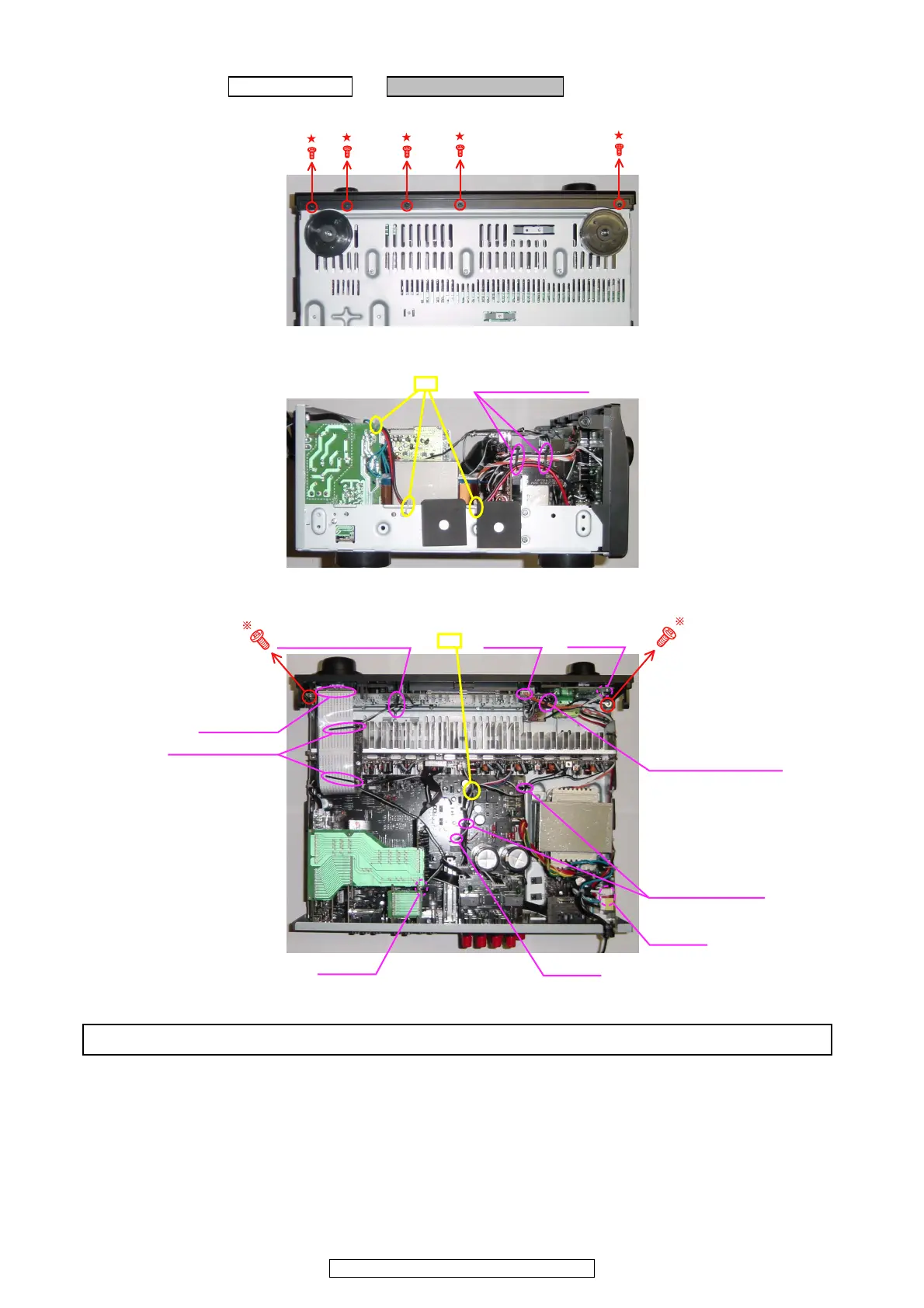

1. PANEL FRONT ASSY
(1) Remove the screws.
(2) Cut the wire clamp band, and loose the style pin.
(3) Cut the wire clamp band, then loose the style pin and Cord holder. Disconnect the connector wire and FFC Cable.
Proceeding : CABINET TOP → PANEL FRONT ASSY
View from bottom
Direction of photograph: D
Style pin : Loose
cut
Cord holder : Loose
Cord holder : Loose
Style pin : Loose
CP1501
CP1300
Style pin : Loose
CP1001
CP1705
FFC Cable
CP1307
cut
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in PANEL FRONT ASSY.
