Denon AVR-1910 Service Manual

Video SIGNAL LINE
Component Y SIGNAL LINE
Y
Cb
Cr
COMP_SW1
CVBS
V.EXPOE
V.EXPDIN
CVBS DET
DAC MUTE
SYNCDET_S
VGND
COMP_SW2
VGND VGND
DVD_INH
V.EXPSTB
V.EXPCLK
COMP DET
COMP_MUTE
87654321
A
B
C
D
E
F

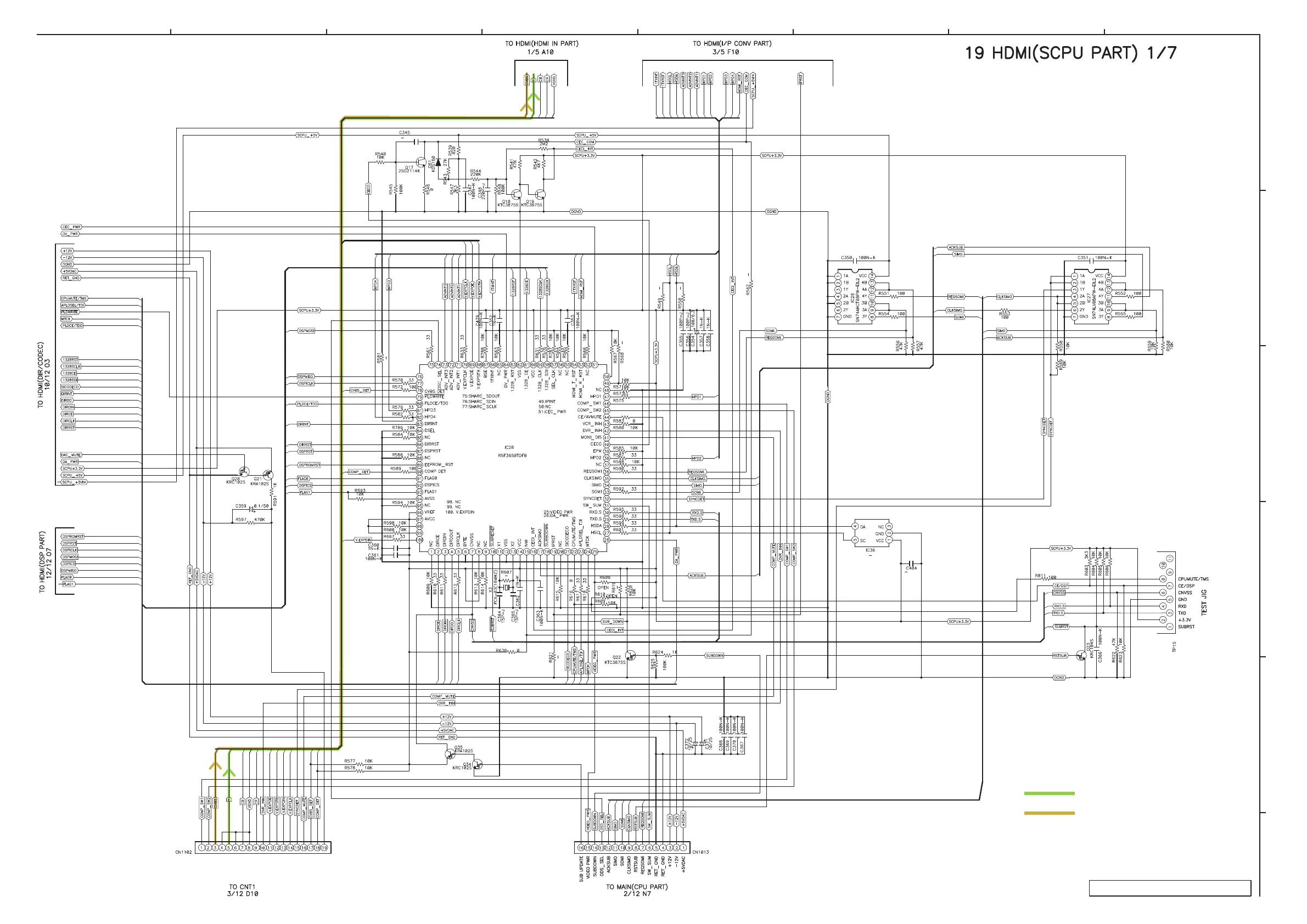

SCHEMATIC DIAGRAMS (1/25)
19 HDMI UNIT (1/7) (1910/790 model)
SCPU PART
AVR-1910/1620/1610/790/590

Denon AVR-1910 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	90 W
Equalizer	Yes
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby Pro Logic IIz, Dolby TrueHD
Apple docking compatibility	iPod
Optical drive included	No
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.3 W
HDMI in	4
S-Video inputs quantity	1
Component video (YPbPr/YCbCr) in	2

Weight and Dimensions

Depth	171 mm
Width	434 mm
Height	377 mm
Weight	10700 g
