Connect
• For the method of connecting 5.1-channel speakers, see page 4.
• For the method of connecting the TV, see page 5.

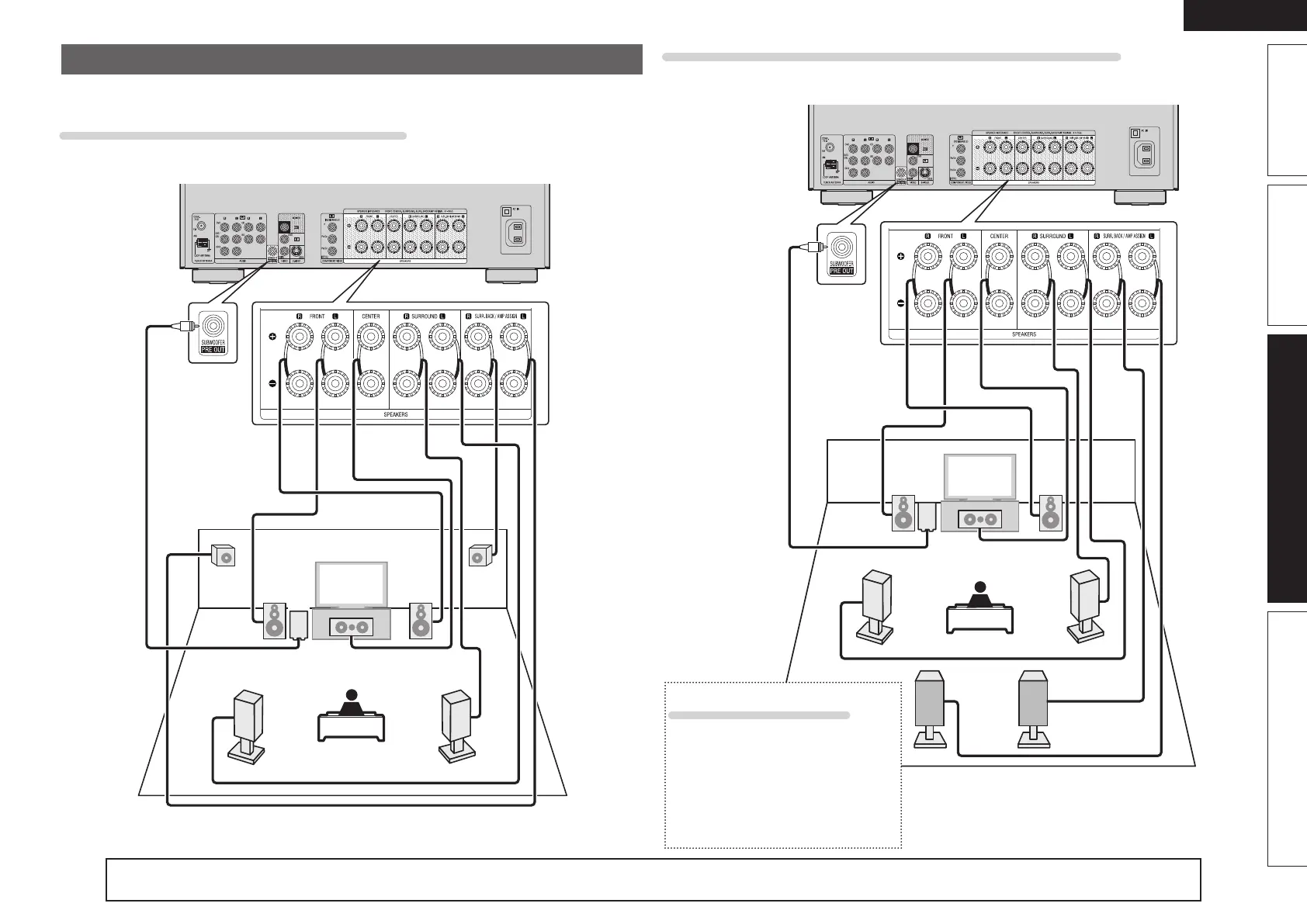

7.1-channel (Front height speaker) connection
For 7.1-channel (Front height speaker) playback, set “Amp Assign” in “Set up speakers” (vpage35) to
“Front Height”.
FL FR
FHRFHL
C
SW
SL
SR
7.1-channel/6.1-channel (Surround back speaker) connection
For 7.1-channel (Surround back speaker) playback, set “Amp Assign” in “Set up speakers” (vpage35) to
“Normal”.
FL FR
C
SBL SBR
SL
SR
SW
6.1-channel connection
If using only one surround back speaker
(with a 6.1-channel connection), connect
it to the “L” side of the SURR. BACK/
AMP ASSIGN terminal.
For speaker settings in this case, see
“When 6.1ch (Surround back speaker)
installed” (vpage32).
For speaker impedance and speaker cable connections, see page 4.
