67
ENGLISH
Basic version Advanced versionSimple version Information

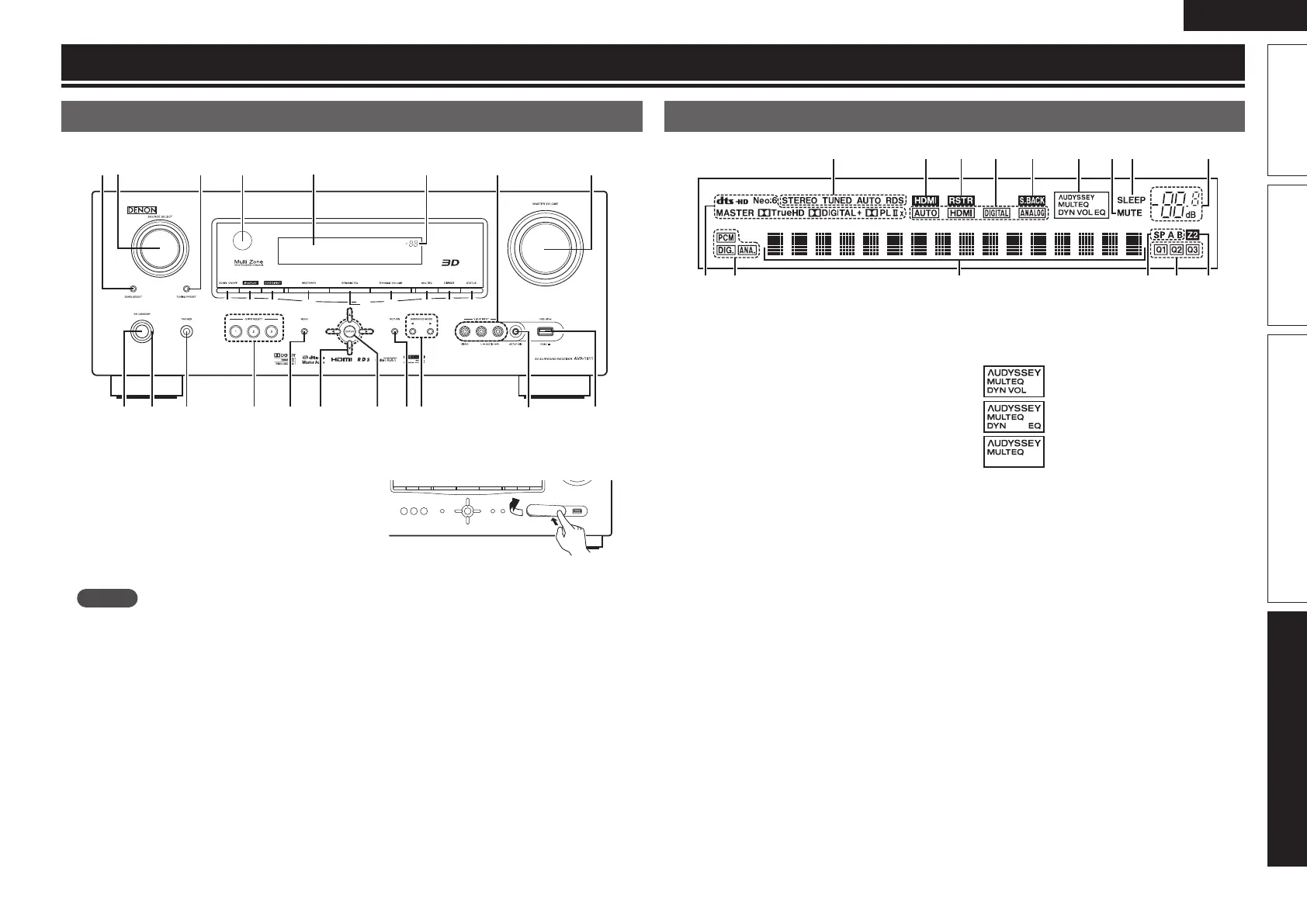

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
q w e r t y u io
Q3
Q0 Q1
Q2Q4Q5Q6Q7Q8Q9
W0 W1 W2 W3 W4 W5 W6 W7 W8
q Power operation button
(ON/STANDBY) ······································(6, 11)
Turns power to this unit on and off (standby).
w Power indicator ·········································· (11)
e Headphones jack
When the headphones are plugged into this
jack, audio will no longer be output from the
connected speakers or from the PRE OUT
connectors.
NOTE
To prevent hearing loss, do not raise the volume
level excessively when using headphones.
r QUICK SELECT buttons ······················· (38, 40)
t MENU button ·············································· (44)
y Cursor buttons (uio p) ·················· (42 – 44)
u ENTER button ····································· (42 – 44)
i RETURN button ·································· (42 – 44)
o SURROUND MODE buttons ················ (28, 80)
Q0 SETUP MIC jack ······································ (8, 35)
Q1 USB/iPod port ············································ (18)
Q2 MASTER VOLUME control knob ··············· (20)
Q3 V.AUX INPUT connectors ·························· (17)
Remove the cap covering the connectors when
you want to use them.
Q4 Master volume indicator
Q5 Display ························································· (67)
Q6 Remote control sensor ······························ (70)
Q7 TUNING PRESET button ···························· (24)
Q8 SOURCE SELECT knob ························ (20, 39)
Q9 ZONE2 SELECT button ······························ (39)
W0 ZONE2 ON/OFF button ······························ (39)
W1 iPod PLAY button ······································· (23)
W2 PURE DIRECT button ································· (30)
W3 RESTORER button ······································ (53)
W4 DYNAMIC EQ
®
button ······························· (52)
W5 DYNAMIC VOLUME™ button ··················· (52)
W6 MULTEQ
®
button ································· (51, 58)
W7 DIMMER button ·········································· (60)
W8 STATUS button ·········································· (61)
Part names and functions
Display
i uoQ0Q1Q2Q3Q4Q5
wq e tr y
q Decoder indicators
These light when the respective decoders are
operating.
w Input signal indicators
e Information display
The input source name, surround mode, setting
values and other information are displayed here.
r Front speaker indicator
This lights when audio signals are being output
from the speakers.
t QUICK SELECT indicators
The indicator corresponding to the memory
for which Quick Select function is set, lights
(“Quick select function” (vpage38)).
y ZONE2 indicator
This lights up when ZONE2 (separate room)
power is turned on (vpage39).
u Master volume indicator
When performing setting operations, displays
the menu number.
i Sleep timer indicator
This lights when the sleep mode is selected
(vpage37).
o MUTE indicator
This lights when the mute mode is selected
(vpage20).
Q0 AUDYSSEY MULTEQ indicators
Lighting is as follows, depending on the setting
of “Dynamic EQ” (vpage52) and “Dynamic
Volume” (vpage52).
When “Dynamic EQ” and
“Dynamic Volume” are “ON”.
When “Dynamic EQ” is “ON” and
“Dynamic Volume” is “OFF”.
When “Dynamic EQ” and
“Dynamic Volume” are “OFF”.
Q1 Surround back indicator
This lights when audio signals are being output
from the surround back speakers (vpage55).
Q2 Input mode indicators
Set the audio input modes for the different input
sources (vpage48).
Q3 RESTORER indicator
This lights when the RESTORER mode is
selected (vpage53).
Q4 HDMI indicator
This lights when playing using HDMI connections.
Q5 Tuner reception mode indicators
These light according to the reception conditions
when the input source is set to “TUNER”.
STEREO: In the FM mode, this light when
receiving analog stereo broadcasts.
TUNED: Lights when the broadcast is properly
tuned in.
AUTO: This light when in the auto tuning mode.
RDS: This light when receiving RDS
broadcasts.
