Denon AVR-2105 Operating Instructions

L
R
L
R

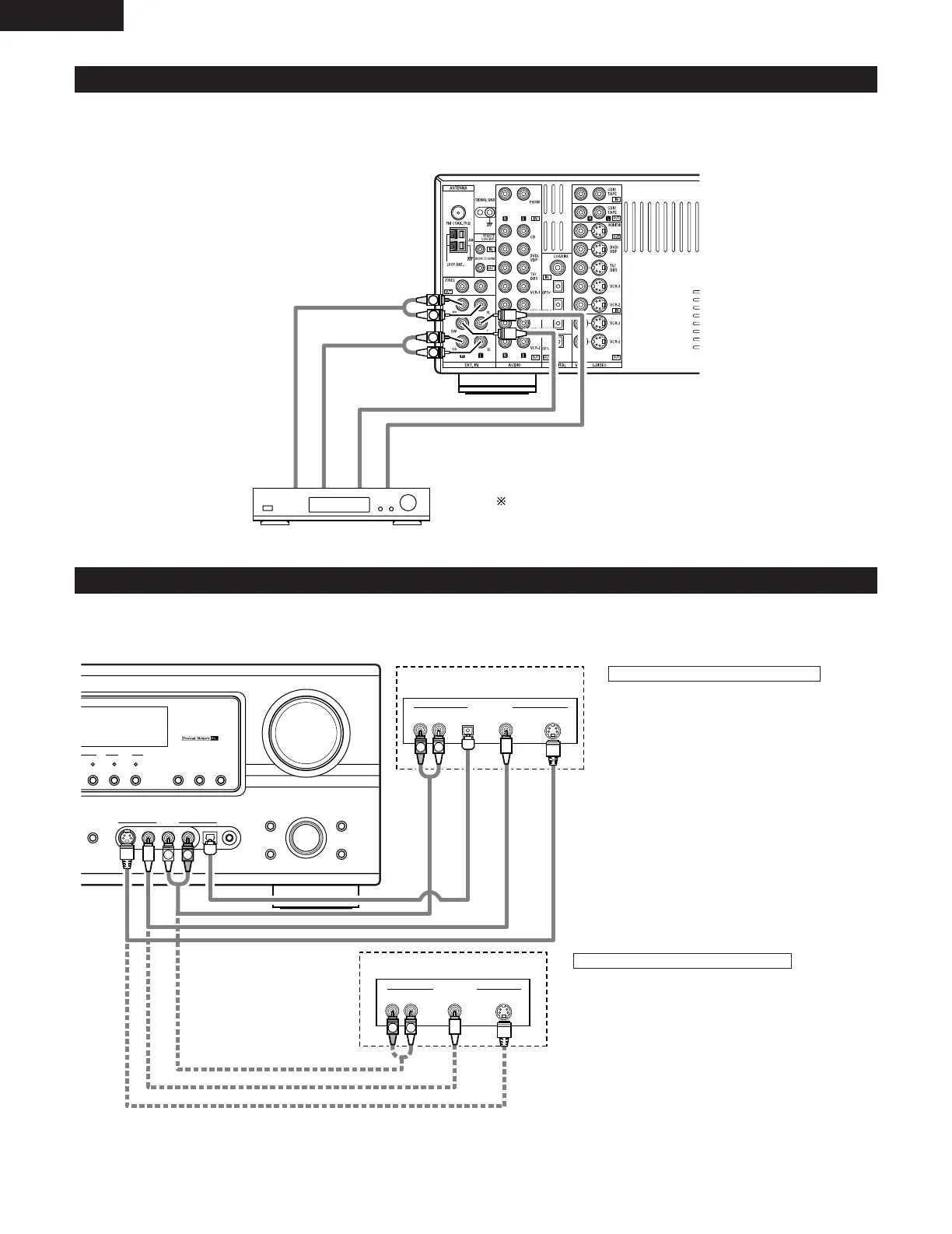

Connecting the external input (EXT. IN) jacks
• These jacks are for inputting multi-channel audio signals from an outboard decoder, or a component with a different type of multi-channel
decoder, such as a DVD Audio player, a multi-channel SACD player, or other future multi-channel sound format decoder.
• When making connections, also refer to the operating instructions of the other components.
Decoder with 6-channel
analog output
Front
Surround
Subwoofer
Center
For instructions on playback using the external input (EXT. IN)
jacks, see page 42.
Connecting the video component equipped with V.AUX jacks
•To connect the video signal, connect using a 75 Ω/ohms video signal cable cord.
SELECT
•ªTUNING
E
SET • DIMMER STATUS
SURROUND
BACK
ZONE 2
DTS
OUTPUT
VIDEO SELECT
S-VIDEO OPTICAL SETUP MICVIDEO
V.AUX INPUT
L
AUDIO
R

DIRECT /
STEREO
SURROUND
PARAMETER
TONE
DEFEAT
SURROUND 
MODE
TONE 
CONTROL
MASTER VOLUME
AVR-2105
AV SURROUND RECEIVER
SELECT
VOLUME LEVEL
R VIDEO OUT S-VIDEO OUTOPTICALL
R VIDEO OUTL
OUTPUT
OUTPUT
LINE OUT
DIGITAL OUT
VIDEO OUT
S-VIDEO OUT
VIDEO OUT
LINE OUT
S-VIDEO OUT
S-VIDEO OUT
L
R
L
R
L
R
Video game
Video camera
Connecting a Video game component
• Connect the Video game component’s output jacks to
this unit’s V. AUX INPUT jacks.
Connecting a video camera component
• Connect the video camera component’s output jacks to this
unit’s V. AUX INPUT jacks.
12
ENGLISH

Denon AVR-2105 Specifications

General

Power Output	90 W per channel (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Number of Channels	7.1
Component Video Inputs	3
AM/FM Tuner	Yes
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	102 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Bands	AM/FM
Digital Sound Processor (DSP)	Yes
HDMI Switching	No
Video Conversion/Scaling	No
Output Impedance / Channel	8 ohm
Frequency Response	10 Hz - 100 kHz
Total Harmonic Distortion	0.08%
Dolby Decoding	Dolby Digital, Dolby Pro Logic II
DTS Decoding	DTS, DTS Neo:6
Digital Audio Inputs	2 coaxial, 5 optical
Audio D/A Converter	24bit / 192kHz
Tuner Frequency Range	AM: 522 - 1611kHz, FM: 87.5 - 108MHz
Dimensions (W x H x D)	434 x 171 x 377 mm
Output Power / Channel	90W (8 ohms, 20Hz-20kHz, 0.08% THD)
