Denon AVR-2105 Operating Instructions

11
MULTI ZONE
Multi-zone playback with multi-source
MULTI ZONE MUSIC ENTERTAINMENT SYSTEM
• When the outputs of the “ZONE2” OUT terminals are wired and connected to integrated amplifiers installed in other rooms, different sources
can be played in rooms other than the main zone in which this unit and the playback devices are installed. (Refer to ZONE2 on the diagram
below.)
• ZONE 2 SPEAKER OUT and PRE OUT can be used when “ZONE2” is selected at System Setup Menu “Power Amp Assignment”. In this case,
Surround Back Speaker Out cannot be used for MAIN ZONE.
• When a sold separately room-to-room remote control unit (DENON RC-616, 617 or 618) is wired and connected between the main zone and
zone2, the remote-controllable devices in the main zone can be controlled from zone2 using the remote control unit.
NOTES:
• For the AUDIO outputs, use high quality pin-plug cords and wire in such a way that there is no humming or noise.
• For instructions on installation and operation of separately sold devices, refer to the devices’ operating instructions.
• When the main unit is set to the recording output mode, zone2 remote control key cannot be operated.
MULTI ROOM MUSIC ENTERTAINMENT SYSTEM
2 When using the SURR.BACK/ZONE2 amplifier as the SURROUND BACK.
• 7.1-channel playback using the surround back speaker is possible in the MAIN ZONE.
•To use the ZONE2 line output, turn on the ZONE2 button (remote control unit).
• The ZONE2 OUT terminal’s output level cannot be adjusted with the remote control unit.

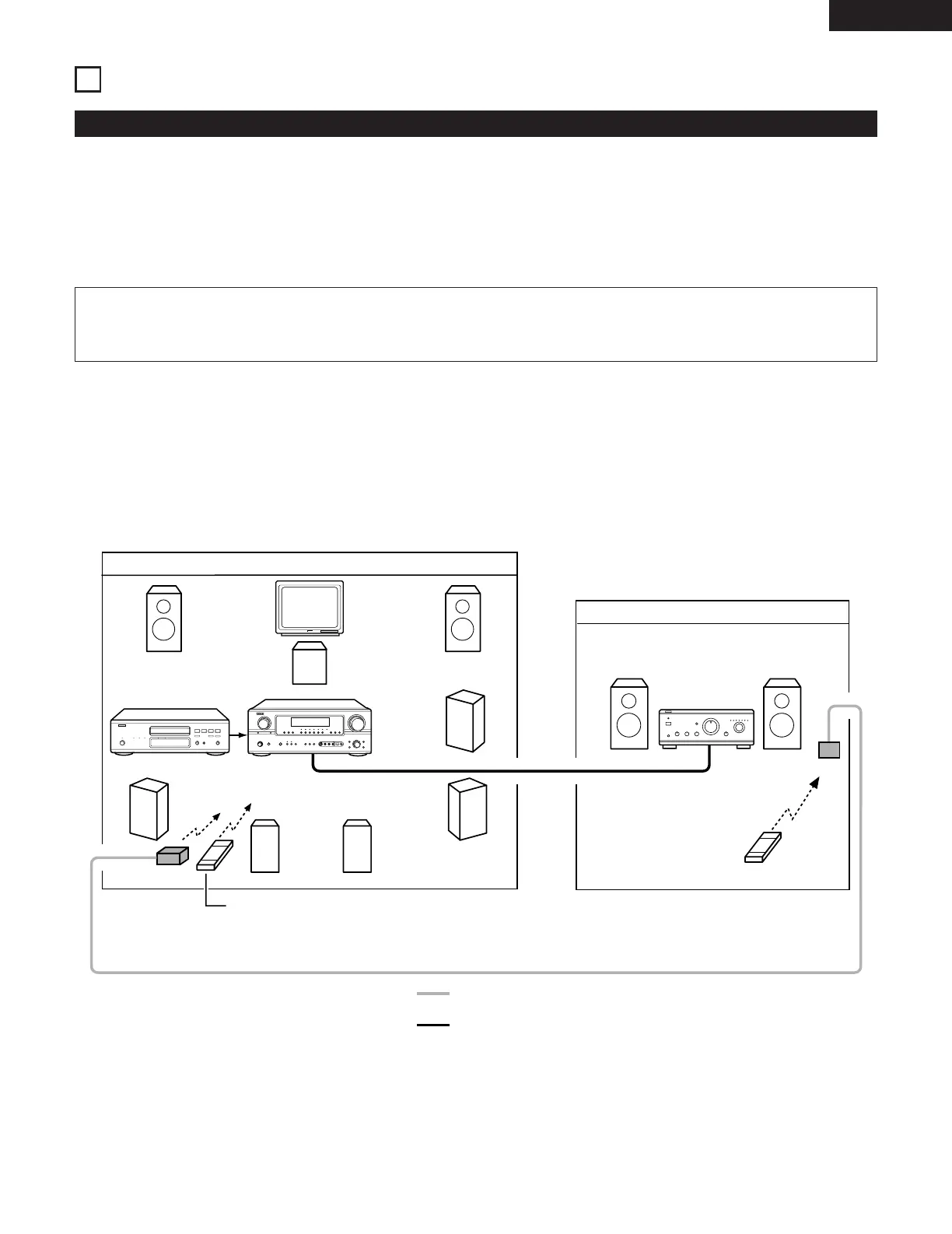

System configuration and connections example.
Using external amplifier
RC-617
This unit
Premain Amplifier
or Power Amplifier
PRE AMP ZONE 2 AUDIO OUT
(FIXED OUTPUT)
DVD player
Input
FL FR
Center
SL SR
SW
SBRSBL
RC-616
B
PROGRAMMABLE 
REMOTE CONTROL UNIT
SYSTEM REMOTE CONTROL
UNIT RC-980
MAIN ZONE 7.1-channel systems
ZONE 2
Monitor
B
MULTI SOURCE AUDIO signal cable
*
Refer to CONNECTIONS on pages 7 to 15.
ROOM-TO-ROOM REMOTE CONTROL SYSTEM
(separately sold) control line
45
ENGLISH

Denon AVR-2105 Specifications

General

Power Output	90 W per channel (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Number of Channels	7.1
Component Video Inputs	3
AM/FM Tuner	Yes
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	102 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Bands	AM/FM
Digital Sound Processor (DSP)	Yes
HDMI Switching	No
Video Conversion/Scaling	No
Output Impedance / Channel	8 ohm
Frequency Response	10 Hz - 100 kHz
Total Harmonic Distortion	0.08%
Dolby Decoding	Dolby Digital, Dolby Pro Logic II
DTS Decoding	DTS, DTS Neo:6
Digital Audio Inputs	2 coaxial, 5 optical
Audio D/A Converter	24bit / 192kHz
Tuner Frequency Range	AM: 522 - 1611kHz, FM: 87.5 - 108MHz
Dimensions (W x H x D)	434 x 171 x 377 mm
Output Power / Channel	90W (8 ohms, 20Hz-20kHz, 0.08% THD)
