Denon AVR-2105 Operating Instructions

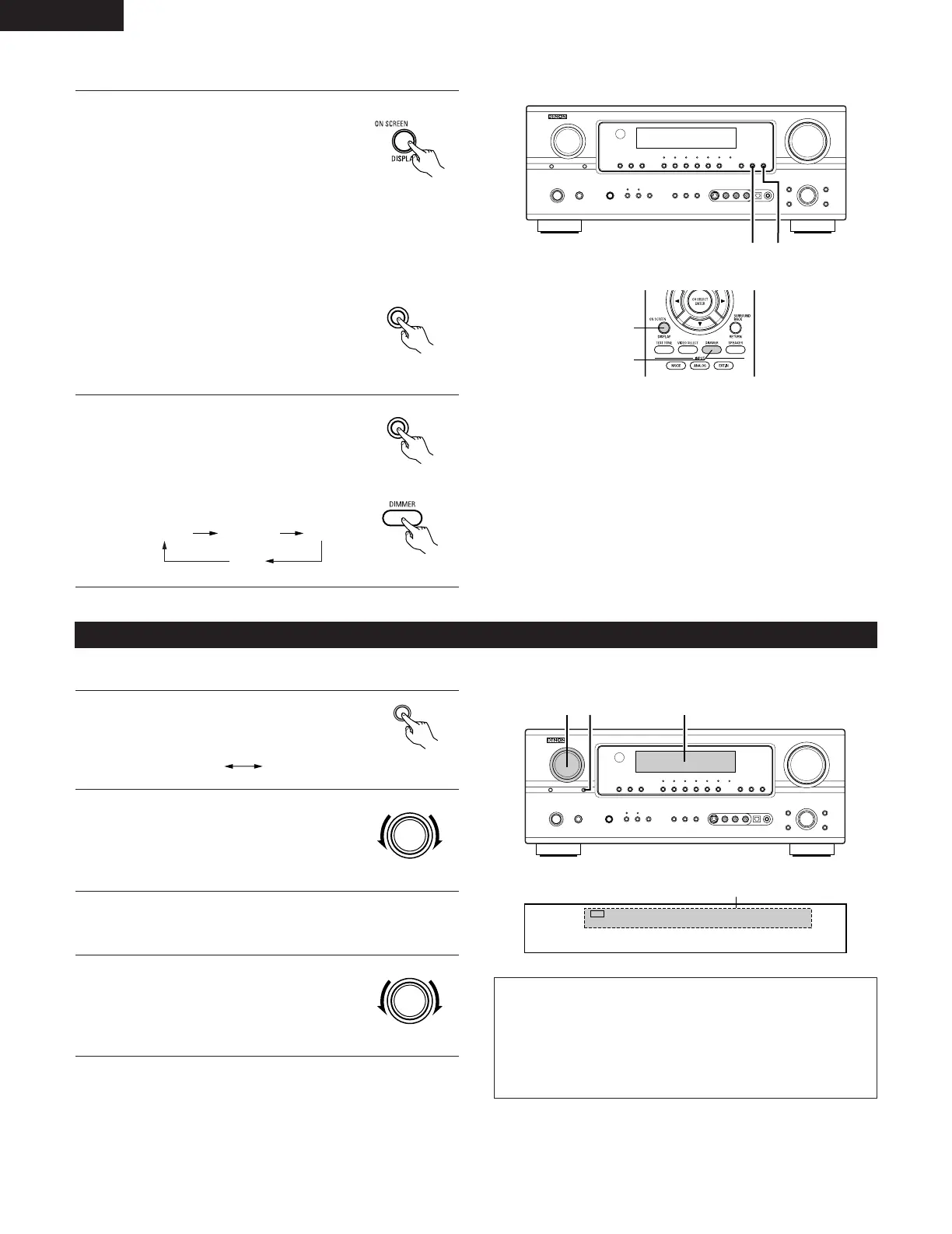

[5] Checking the currently playing program source, etc.
1
On screen display
• Each time an operation is performed, a
description of that operation appears on
the display connected to the unit’s
VIDEO MONITOR OUT jack. Also, the
unit’s operating status can be checked
during playback by pressing the remote
control unit’s ON SCREEN/DISPLAY
button.
Such information as the position of the input selector and
the surround parameter settings is output in sequence.
Front panel display
• Descriptions of the unit’s operations are
also displayed on the front panel display.
In addition, the display can be switched
to check the unit’s operating status
while playing a source by pressing the
STATUS button.
STATUS
(Main unit)
1
2
Using the dimmer function
• Use this to change the brightness of the
display.
The display brightness changes in four
steps (bright, medium, dim and off) by
pressing the main unit’s DIMMER
button repeatedly.
DIMMER
12
(Main unit)
(Remote control unit)
(Remote control unit)
Multi-source recording
Playing one source while recording another (REC OUT mode)
1
Press the ZONE2/REC SELECT button.
The display switches as follows each time
the button is pressed.
ZONE 2 /
REC SELECT
2
With “RECOUT SOURCE” displayed, turn
the FUNCTION knob to select the source
you wish to record.
FUNCTION
3
Set the recording mode.
• For operating instructions, refer to the manual of the
component on which you want to record.
4
To cancel, turn the function knob and
select “SOURCE”.
FUNCTION
1
2, 4 2
VCR -1 -2 V.AUX CDR / TAPE
PHONO CD TUNER DVD / VDP TV / DBS
2
REC
RECOUT SOURCE
Display
NOTES:
• Recording sources other than digital inputs selected in the REC
OUT mode are also output to the ZONE2 audio output jacks.
• Digital signals are not output to the REC SOURCE or audio
output jacks.
• The DIGITAL IN’s signal selected with the function selector knob
are output to the DIGITAL OUT (OPTICAL) jack.
(Main unit)
(Main unit)
(Main unit)
2
ZONE2 REC
BRIGHT MEDIUM
OFF
DIM
44
ENGLISH

Denon AVR-2105 Specifications

General

Power Output	90 W per channel (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Number of Channels	7.1
Component Video Inputs	3
AM/FM Tuner	Yes
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	102 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Bands	AM/FM
Digital Sound Processor (DSP)	Yes
HDMI Switching	No
Video Conversion/Scaling	No
Output Impedance / Channel	8 ohm
Frequency Response	10 Hz - 100 kHz
Total Harmonic Distortion	0.08%
Dolby Decoding	Dolby Digital, Dolby Pro Logic II
DTS Decoding	DTS, DTS Neo:6
Digital Audio Inputs	2 coaxial, 5 optical
Audio D/A Converter	24bit / 192kHz
Tuner Frequency Range	AM: 522 - 1611kHz, FM: 87.5 - 108MHz
Dimensions (W x H x D)	434 x 171 x 377 mm
Output Power / Channel	90W (8 ohms, 20Hz-20kHz, 0.08% THD)
