Denon AVR-2105 Operating Instructions

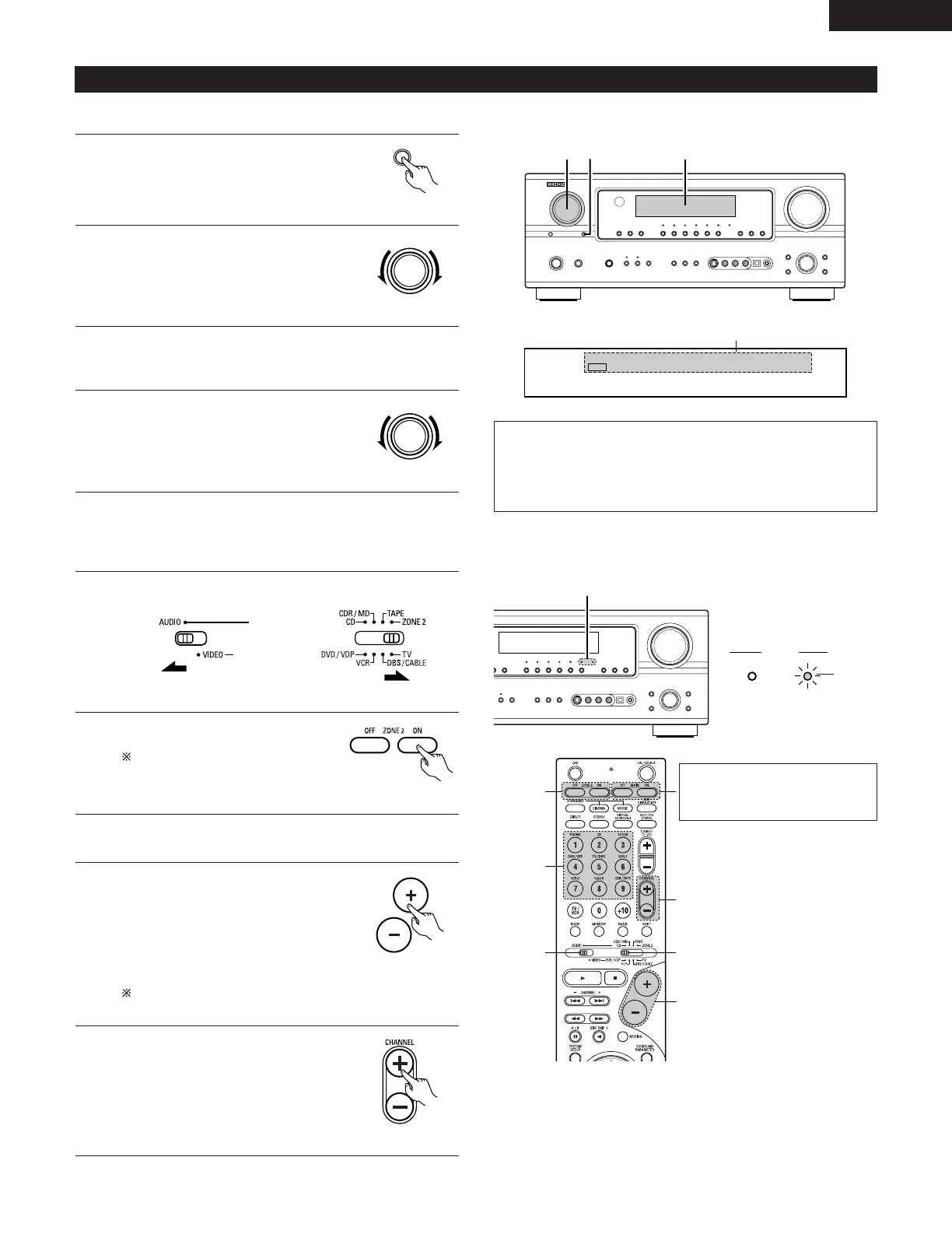

[1] Outputting a program source to an amplifier, etc., in a different room (ZONE2 mode)
1
3
Start playing the source to be output.
• For operating instructions, refer to the manuals of the
respective components.
1
2, 4 2
VCR -1 -2 V.AUX CDR / TAPE
PHONO CD TUNER DVD / VDP TV / DBS
2
ZONE2
ZONE2 SOURCE
Display
NOTES:
• The signals of the source selected in the ZONE2 mode are also
output from the VCR-1, VCR-2 and CDR/TAPE recording output
terminals.
• Digital signals are not output to the ZONE2 output jacks.
Press the ZONE2/REC SELECT button.
The display switches as follows each
time the button is pressed.
ZONE 2 /
REC SELECT
(Main unit)
2
With “ZONE2 SOURCE” displayed, turn
the FUNCTION knob and select the source
you wish to record.
FUNCTION
(Main unit)
4
To cancel, turn the function knob and
select “SOURCE”.
FUNCTION
(Main unit)
Multi-source playback
[2] Remote control unit operations during multi-source playback (selecting the source)
1
Set the slide switch to “AUDIO” and “ZONE2”.
5
1
2
3
4
1
(Remote control unit)
2
Press the ZONE2 “ON” button.
To cancel the ZONE2 mode.
Press the ZONE2 “OFF” button.
(Remote control unit)
3
Press the input source button.
• The ZONE2 source switches directly.
4
The output level of the ZONE 2 SPEAKER
OUT terminals can be controlled using the
VOLUME + and – buttons on the remote
control unit.
(Remote control unit)
DEFAULT SETTING (ZONE2 VOLUME LEVEL) :
- - - dB (MINIMUM)
5
When the ZONE2 SOURCE function is set
to TUNER, the preset channel can be
selected using the CHANNEL + and –
buttons on the remote control unit.
(This is only possible when the main unit
in the ZONE2 mode.)
(Remote control unit)
The main zone output can be
turned on and off with the MAIN
ON/OFF button.
2
SURROUND
BACK
ZONE 2
OUTPUT
(Light)
47
ENGLISH
