Denon AVR-2105 Operating Instructions

1
4
2
3

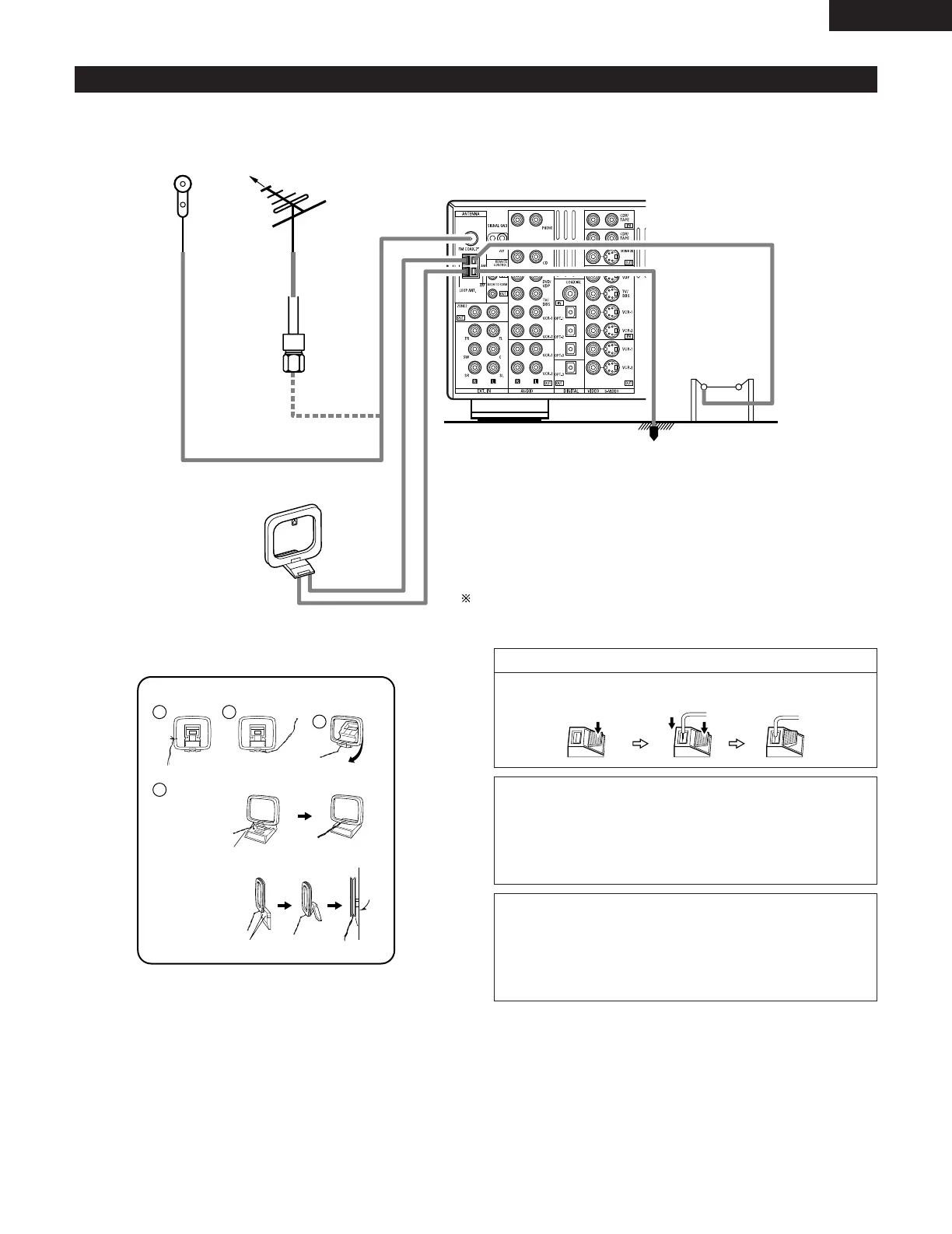

Connecting the antenna terminals
DIRECTION OF
BROADCASTING
STATION
AM LOOP
ANTENNA
(An Accessory)
FM ANTENNA
GROUND
AM OUTDOOR
ANTENNA
FM INDOOR
ANTENNA
(An Accessory)
75 Ω/ohms
COAXIAL
CABLE
AM loop antenna assembly
Connect to the AM
antenna terminals.
Bend in the reverse
direction.
Remove the vinyl tie
and take out the
connection line.
a. With the antenna
on top any stable
surface.
b. With the antenna
attached to a
wall.
Mount
Installation hole Mount on wall, etc.
Connection of AM antennas
1. Push the lever. 2. Insert the
conductor.
3. Return the lever.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC which provides guidelines
for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
NOTES:
• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not disconnect the
AM loop antenna.
• Make sure AM loop antenna lead terminals do not touch metal
parts of the panel.
An F-type FM antenna cable plug can be connected directly.
11
ENGLISH

Denon AVR-2105 Specifications

General

Power Output	90 W per channel (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Number of Channels	7.1
Component Video Inputs	3
AM/FM Tuner	Yes
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	102 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Bands	AM/FM
Digital Sound Processor (DSP)	Yes
HDMI Switching	No
Video Conversion/Scaling	No
Output Impedance / Channel	8 ohm
Frequency Response	10 Hz - 100 kHz
Total Harmonic Distortion	0.08%
Dolby Decoding	Dolby Digital, Dolby Pro Logic II
DTS Decoding	DTS, DTS Neo:6
Digital Audio Inputs	2 coaxial, 5 optical
Audio D/A Converter	24bit / 192kHz
Tuner Frequency Range	AM: 522 - 1611kHz, FM: 87.5 - 108MHz
Dimensions (W x H x D)	434 x 171 x 377 mm
Output Power / Channel	90W (8 ohms, 20Hz-20kHz, 0.08% THD)
