This function automatically converts various formats of video signals input to the AVR-2308 into the
format used to output the video signals from the AVR-2308 to a monitor.
The AVR-2308’s video input/output circuitry is compatible with the following four types of video signals:
Digital video signals: HDMI
Analog video signals: Component video, S-Video and Video
Video Conversion Function

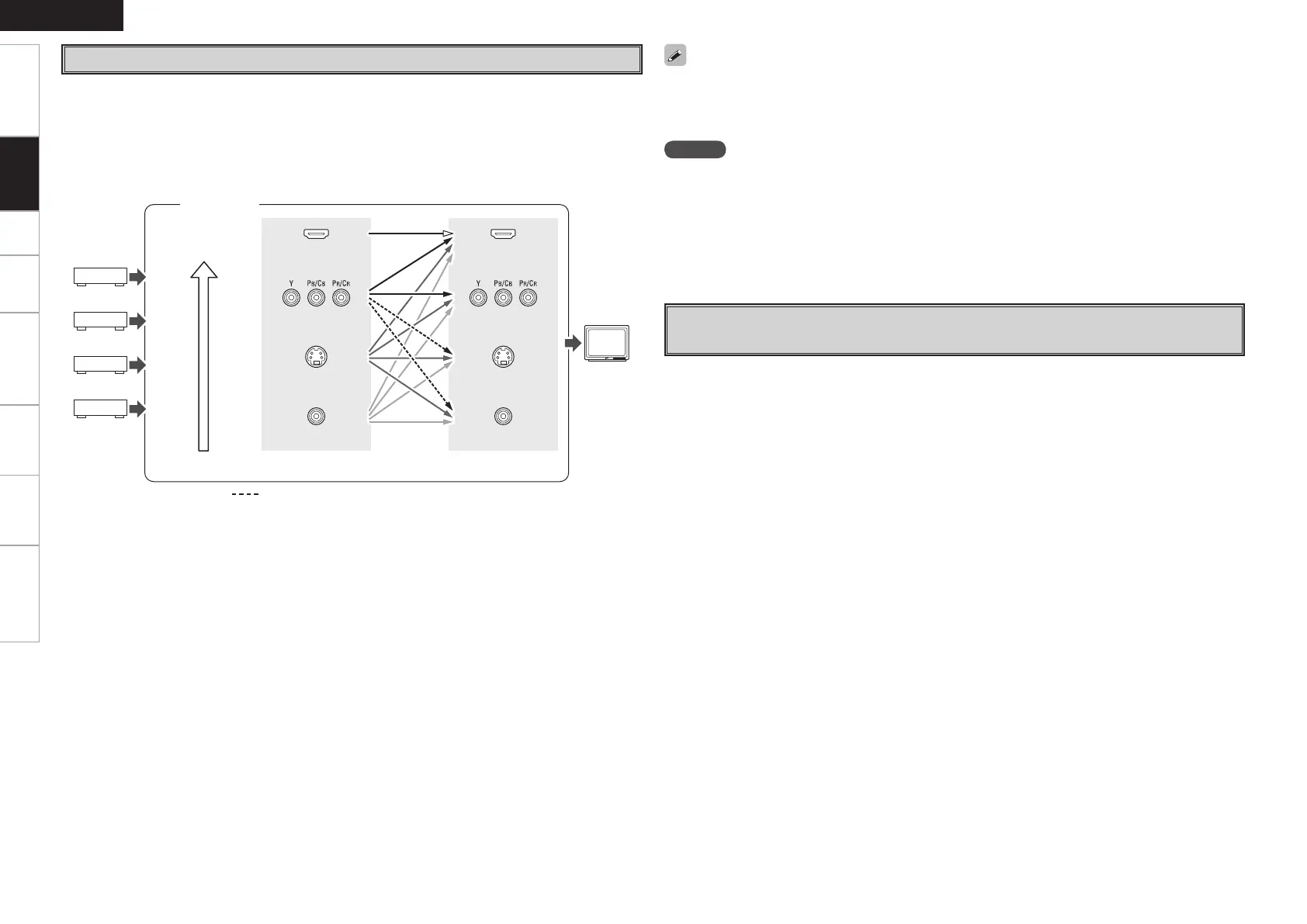

GFlow of video signals inside the AVR-2308H
Main zone
High picture
quality playback
HDMI connector
Component video
connectors
S-Video connector
Video connector
Monitor
HDMI connector
Component video
connectors
S-Video connector
Video connector
Video inputs Video outputs
: When 480i/576i signals are input in the main zone
NOTE
HDMI signals cannot be converted into analog signals.
1080p component input video signals cannot be output to anything other than component video
connectors.
480p/576p, 1080i and 720p component video input signals cannot be converted into S-Video or Video
format.
When a non-standard video signal from a game machine or some other source is input, the video
conversion function might not operate.
When not using this function, connect a monitor output with the same type of connector as the video
input connector.
The resolution of the HDMI input-compatible monitor connected to the AVR-2308 can be checked at
menu “Information” – “HDMI Information” (vpage 42).
When viewing HDMI or component video signals via the AVR-2308, the on-screen display appears when
the MENU button or the remote control unit’s DISPLAY button is operated.
When only HDMI or component video signals are input to the AVR-2308, the characters of the on-screen
display are not displayed over the picture.
On-Screen Display for Component Video Outputs and HDMI
Output
Connections
