Denon AVR-2308 User Manual


Connections Setup Playback Remote Control Multi-Zone Information Troubleshooting
ENGLISH
i
q e urw
t y
oQ0
Q1Q2
Q3
Q3
Q4 Q5
Q6
Q7

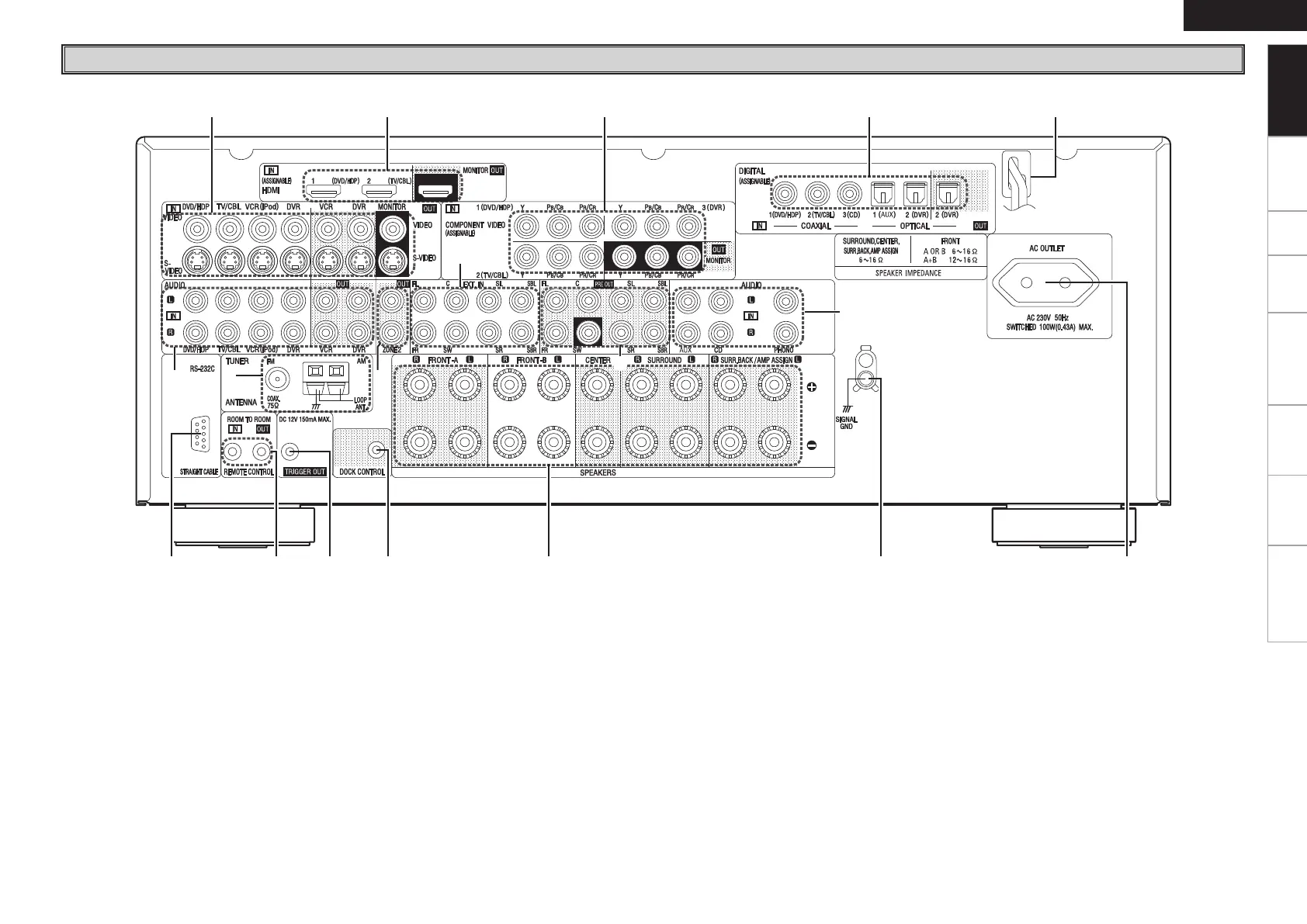

q RS-232C connector ····································· (18)
w REMOTE CONTROL jacks··························· (18)
e TRIGGER OUT jack ····································· (18)
r DOCK CONTROL jack ································· (14)
t Speaker terminals (SPEAKERS) ·················· (9)
y SIGNAL GND terminal ······························· (13)
u AC OUTLET ················································· (19)
i Power cord ·················································· (19)
o Digital audio connectors
(OPTICAL / COAXIAL) ·························· (12, 15)
Q0 COMPONENT VIDEO connectors ·············· (12)
Q1 HDMI connectors ·········································(11)
Q2 VIDEO / S-VIDEO connectors ···················· (12)
Q3 Analog audio connectors (AUDIO) ············ (12)
Q4 FM/AM antenna terminals
(TUNER ANTENNA) ···································· (17)
Q5 ZONE2 connectors······································ (18)
Q6 EXT. IN connectors ····································· (16)
Q7 PRE OUT connectors ···································· (9)
Rear Panel
Getting Started

Denon AVR-2308 Specifications

General

Type	AV Receiver
Number of channels	7.1
Total Harmonic Distortion	0.08 %
Input Sensitivity	200 mV
Signal-to-Noise Ratio	100 dB
Tuner Type	AM/FM
HDMI Inputs	2
HDMI Outputs	1
Component video inputs	3
Component video outputs	1
Dolby Digital	Yes
DTS	Yes
Frequency Response	10 Hz - 100 kHz
Video Outputs	composite video x 1, component video x 1
Digital audio inputs	3 x Optical, 2 x Coaxial
Dimensions	434 x 171 x 414 mm
Speaker Impedance	6-16 Ohm
