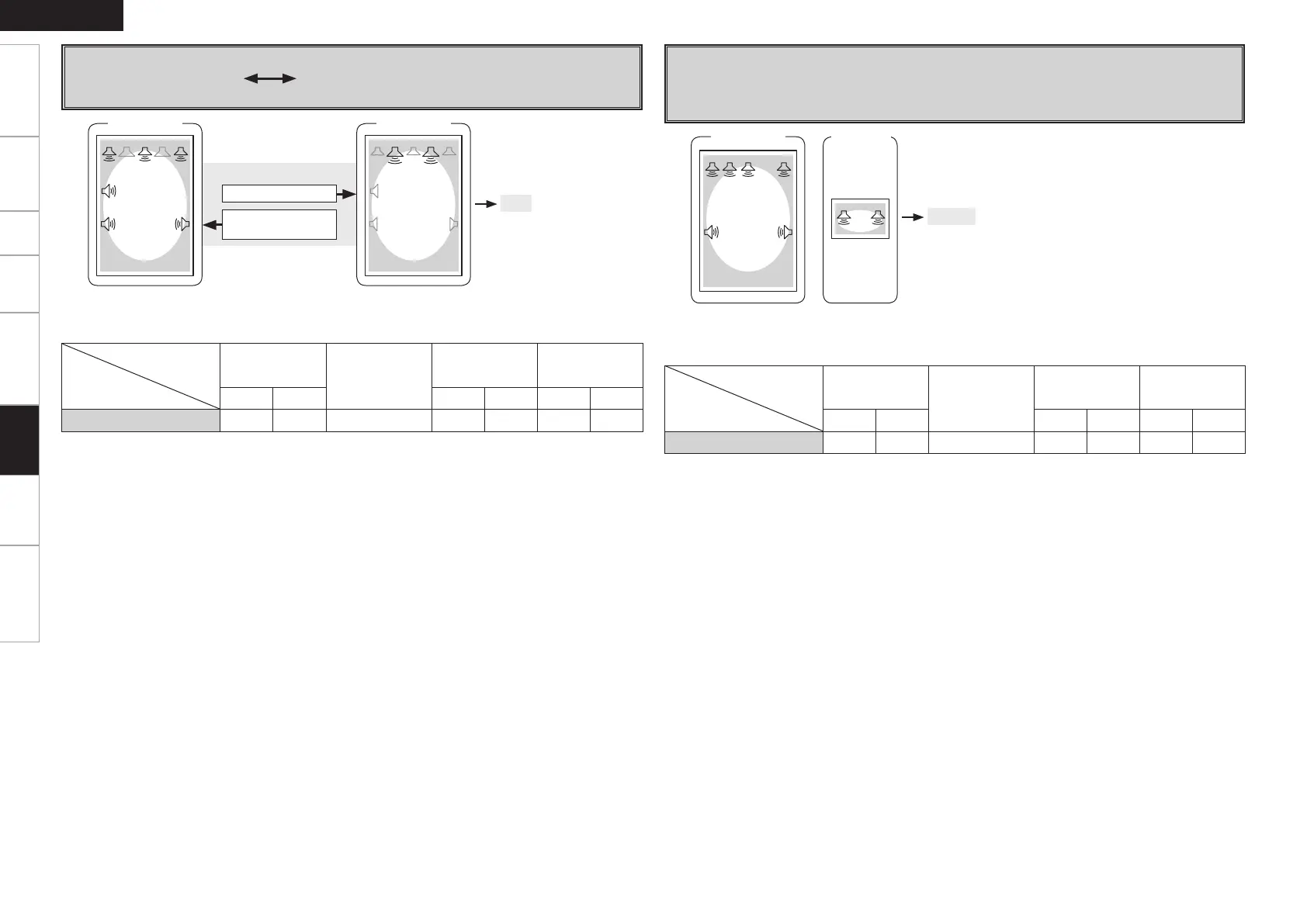

Setting 2 : With this setting it is possible to switch between the following two playback modes.
F 5.1-channel playback 2-channel playback
Switching ················Surround Mode switching
Surround Mode
DIRECT / STEREO
Multi Channel /
Surround
FL
C FR
SW
L R
SL SR
Main zone
5.1ch
FL
C FR
SW
L R
SL SR
Main zone
2ch
2ch
n Amp Assign mode setting and speakers connected to the various speaker
terminals
Speaker terminal
Amp Assign mode
FRONT
CENTER
SURR
SURR. BACK /
AMP ASSIGN
R L R L R L
2ch FR FL C SR SL FR FL
Amp Assign mode:
Z2L Z2R
FL
SW C FR
SL SR
Main zone
ZONE2
Stereo
5.1ch
ZONE2
Setting 3 :
F Multi-zone playback
• 5.1-channel playback + ZONE2 stereo playback
• 5.1-channel playback + ZONE2 monaural playback
Amp Assign mode:
n Amp Assign mode setting and speakers connected to the various speaker
terminals
+
Speaker terminal
Amp Assign mode
FRONT
CENTER
SURR
SURR. BACK /
AMP ASSIGN
R L R L R L
ZONE2 FR FL C SR SL Z2R Z2L
Multi-Zone

Denon AVR-2308 Specifications

General

Type	AV Receiver
Number of channels	7.1
Total Harmonic Distortion	0.08 %
Input Sensitivity	200 mV
Signal-to-Noise Ratio	100 dB
Tuner Type	AM/FM
HDMI Inputs	2
HDMI Outputs	1
Component video inputs	3
Component video outputs	1
Dolby Digital	Yes
DTS	Yes
Frequency Response	10 Hz - 100 kHz
Video Outputs	composite video x 1, component video x 1
Digital audio inputs	3 x Optical, 2 x Coaxial
Dimensions	434 x 171 x 414 mm
Speaker Impedance	6-16 Ohm
