90

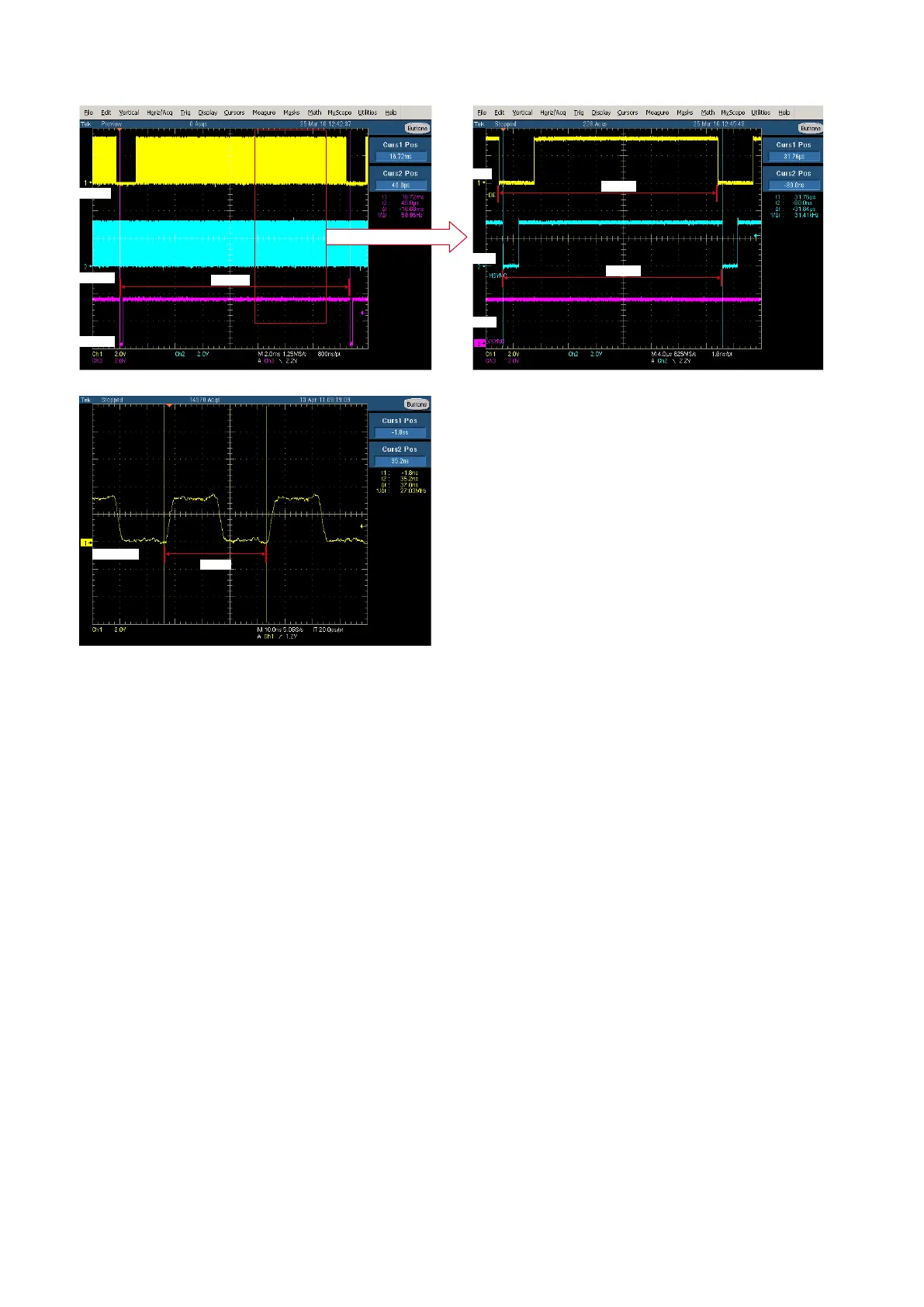

HD_DE/HD_VSYNC/HD_HSYNC/HD_PCLK : Check items (28)

HD_DE

16.68ms

HD_HSYNC

HD_VSYNC

HD_DE

HD_HSYNC

HD_VSYNC

31.84us

31.76us

HD_PCLK

37.0ns
