Denon AVR-4306 Service Manual

100
AVR-4306/AVC-4320

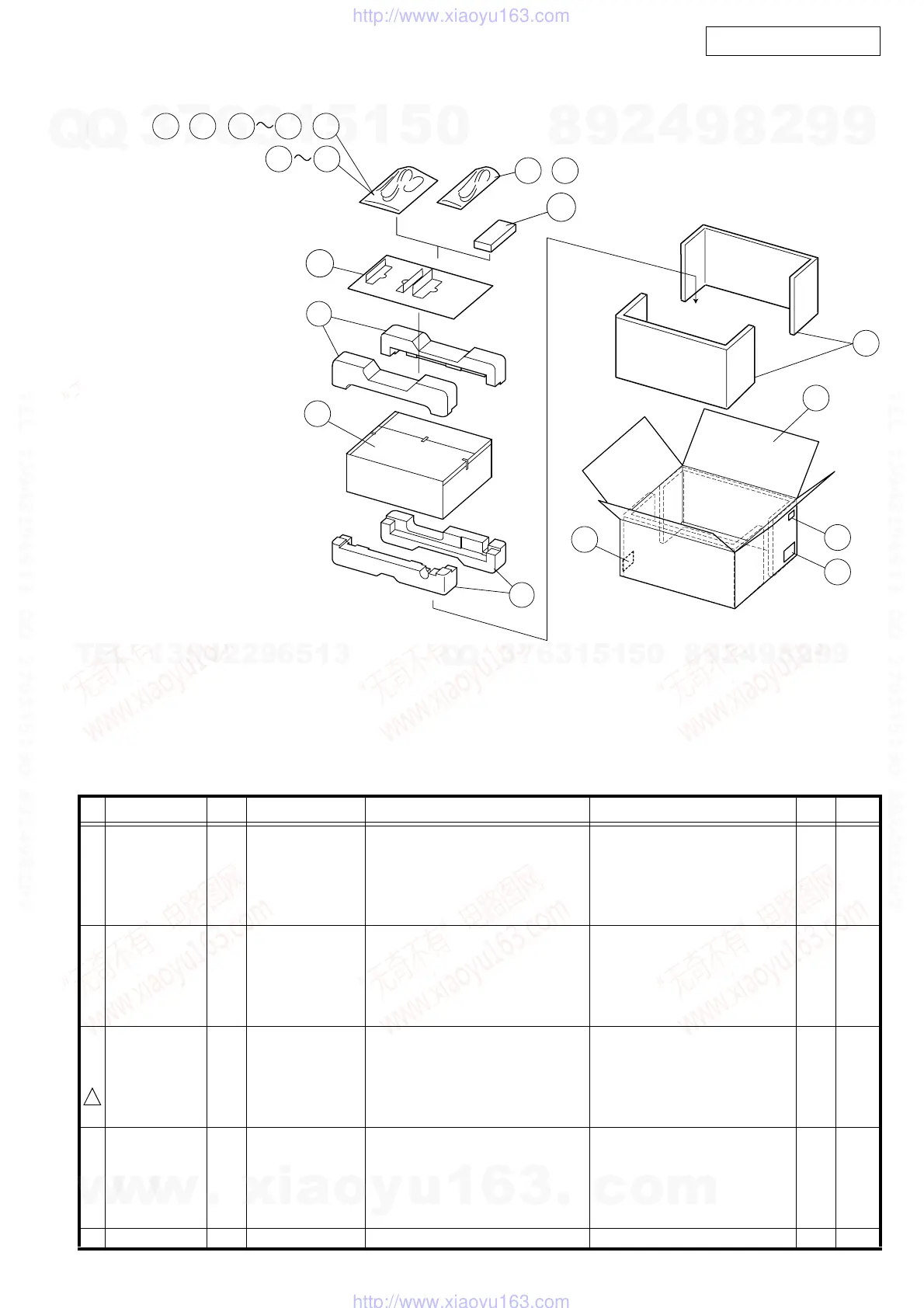

PACKING VIEW
PARTS LIST OF PACKING & ACCESSORIES
＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
＊"nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。
＊ Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
Note: The symbols in the column "Remarks" indicate the following destinations.
EU : U.S.A. model EC : Canada model
Ref. No. nsp Part No. Part Name Remarks Q'ty New
201 nsp 00D 504 0192 106 CABINET SHEET 1
202 nsp 00D 503 1330 304 CUSHION ASSY 1
203 nsp 00D 501 2262 006 PAD 1
204 nsp 00D 505 8006 019 ENVELOPE 1
205 00D 511 4413 009 INST.MANUAL(EU) 1 *
206 00D 511 4414 008 INST.MANUAL(EC) for EC 1 *
207 nsp 00D 513 4107 007 XM SHEET 1
208 00D 231 0089 007 AM LOOP ANTENNA 1
209 00D 395 0029 002 FM ANT ASS Y(F/ETRO) 1
210 00D 321 0038 005 DM-S205 1
211 00D 515 0921 500 S.S.LIST(EX) 1
212 00D 515 0944 309 WARRANTY (HOME) 1
213 - BATTERY(LR6KE2PT) 1
! 215 00D 206 2220 004 AC CORD SET (E3) 1
216 00D 505 0038 072 POLY COVER for EC
217 00D 399 1042 006 RC-1024 1
218 nsp 00D 501 2315 034 CARTON CASE 1 *
219 nsp 00D 501 1950 199 SPACER 2
220 - CONT.CARD (L) 1
221 - UPC LABEL 1 *
★ 222
nsp 00D 513 9111 056 COLOR LABEL for Silver model 2
202
202
201
221
220
220
215
207 213204 , 205
215 , 216
,,
204 213
218
219
203
EC model
217
EC model
EU model
