Denon AVR-4306 Service Manual

23
AVR-4306/AVC-4320

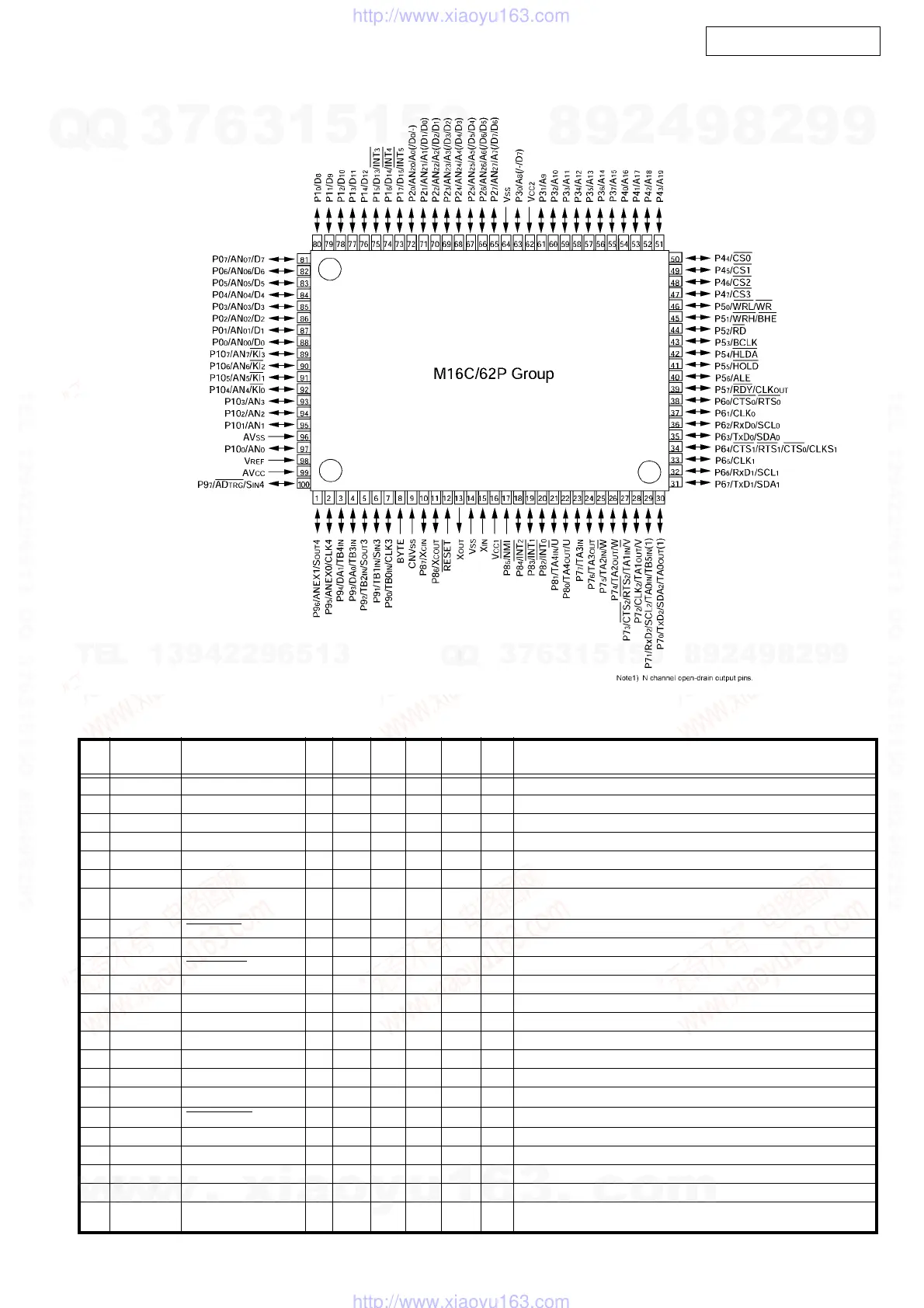

M30624FGPGP (AD: IC517)
M30624FGPGP Terminal Function
Pin
No.
Pin Name Symbol I/O Type Det
Op
(Int.)
Op
(Ext.)
Res FUNCTION
1 P94/TB4 DLINK ON O C - - - Z DENON LINK ON terminal (DENON LINK : H)
2 P93/TB3 DIRCE O C - - - Z DIR control pin (LC89057W)
3 P92/SOUT3 DIRDIN O C - - - Z DIR control pin (LC89057W)
4 P91/SIN3 DIRDOUT I - Lv - Eu Z DIR control pin (LC89057W)
5 P90/CLK3 DIRCLK O C - - - Z DIR control pin (LC89057W)
6 BYTE BYTE - - - - - - GND (Ext. data bus bit width switching, 16bit : L)
7 CNVCS CNVSS - - - - - - Single-chip / Micro-processor mode switching
(Normal single-chip : L, Rewrite boot program start : H input set)
8 P87 DSPBOOT I - - - Eu Z DSP rewrite boot program (DSP rewrite : L input)
9 P86 VSEL2 O C - - - Z Video PLD control pin (LC4064V-LC75TN100C)
10 RESET SUBRESET I - Lv - Eu L Reset input
11 XOUT X1 O - - - - - Oscillator connection
12 VSS VSS - - - - - - GND
13 XIN X2 I - - - - - Oscillator connection
14 VCC VCC - - - - - - +5V
15 P85/NMI _NMI I - - - - - Not used (Fixed to H)
16 P84/INT2 VSEL3 O C - - - Z Video PLD control pin (LC4064V-LC75TN100C)
17 P83/INT1 ACKSIMO I -
E
↓ L
- Ed Z MAIN/SUB-µcom control input (ACK from MAIN µcom L terurn)
18 P82/INT0 SUBBDOWN I -
E
↓ L
Eu Z Power down detect (Power down : L)
19 P81 VSEL4 O C - - - Z Video PLD control pin (LC4064V-LC75TN100C)
20 P80 VSEL0 O C - - - Z Video PLD control pin (LC4064V-LC75TN100C)
21 P77 VSEL1 O C - - - Z Video PLD control pin (LC4064V-LC75TN100C)
22 P76 PLD CS MAIN O C - - - Z Main PLD control pin (EPM3128ATC144-10)
23 P75 PLD DATA O C - - - Z Main PLD / Video PLD control pin
(EPM3128ATC144-10, LC4064V-LC75TN100C)
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Denon AVR-4306 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	102 dB
Dynamic power per channel (4 Ohm)	220 W
Dynamic power per channel (8 Ohm)	150 W
Power output per channel (1KHz@6 Ohm)	170 W
Power output per channel (20-20KHz@8 Ohm)	130 W
HDMI in	3
Line-in	Yes
Composite video in	7
USB ports quantity	1
Digital audio coaxial in	2
Digital audio optical in	5
Headphone connectivity	3.5 mm
Speakers connectivity type	RCA
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	570 W
3D	-
Optical drive included	No
Product color	Silver
Audio decoders	DTS 96/24, DTS Neo:6, DTS-ES, Dolby Digital, Dolby Digital EX, Dolby Pro Logic IIx
Apple docking compatibility	iPod

Weight and Dimensions

Depth	429 mm
Width	434 mm
Height	171 mm
Weight	18500 g
