Denon AVR-4306 - Bottom View

28
AVR-4306/AVC-4320

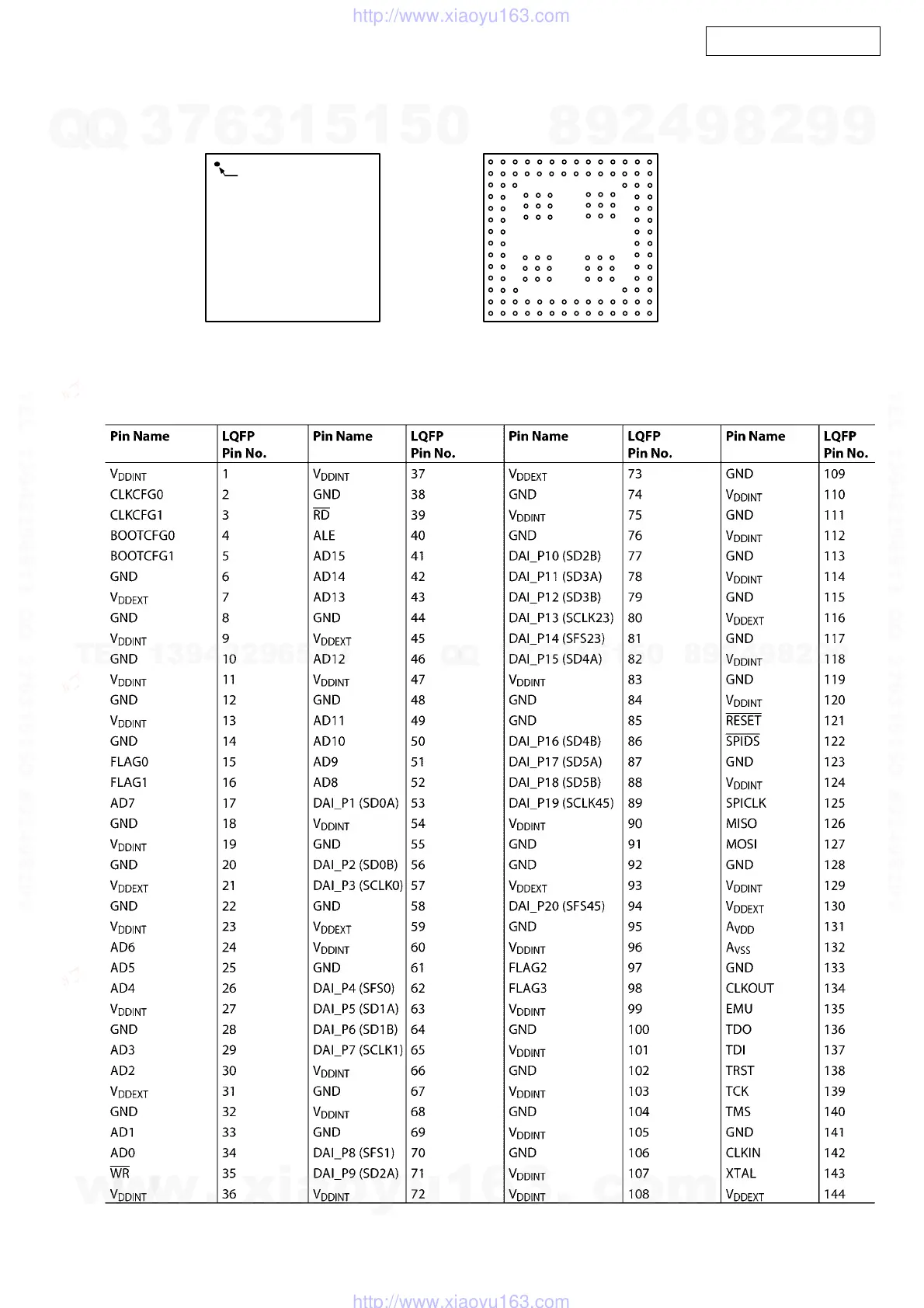

ADSP-21366SKBCZ (DI: IC506)
A
B
C
D
E
F
G
H
J
K
L
M
N
P
109876543211314 1112
PIN A1 INDICATOR
BOTTOM VIEW
TOP VIEW
